Home >> Infiniti >> 1992 >> M30 V6-181 3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> Code 45

Code 45

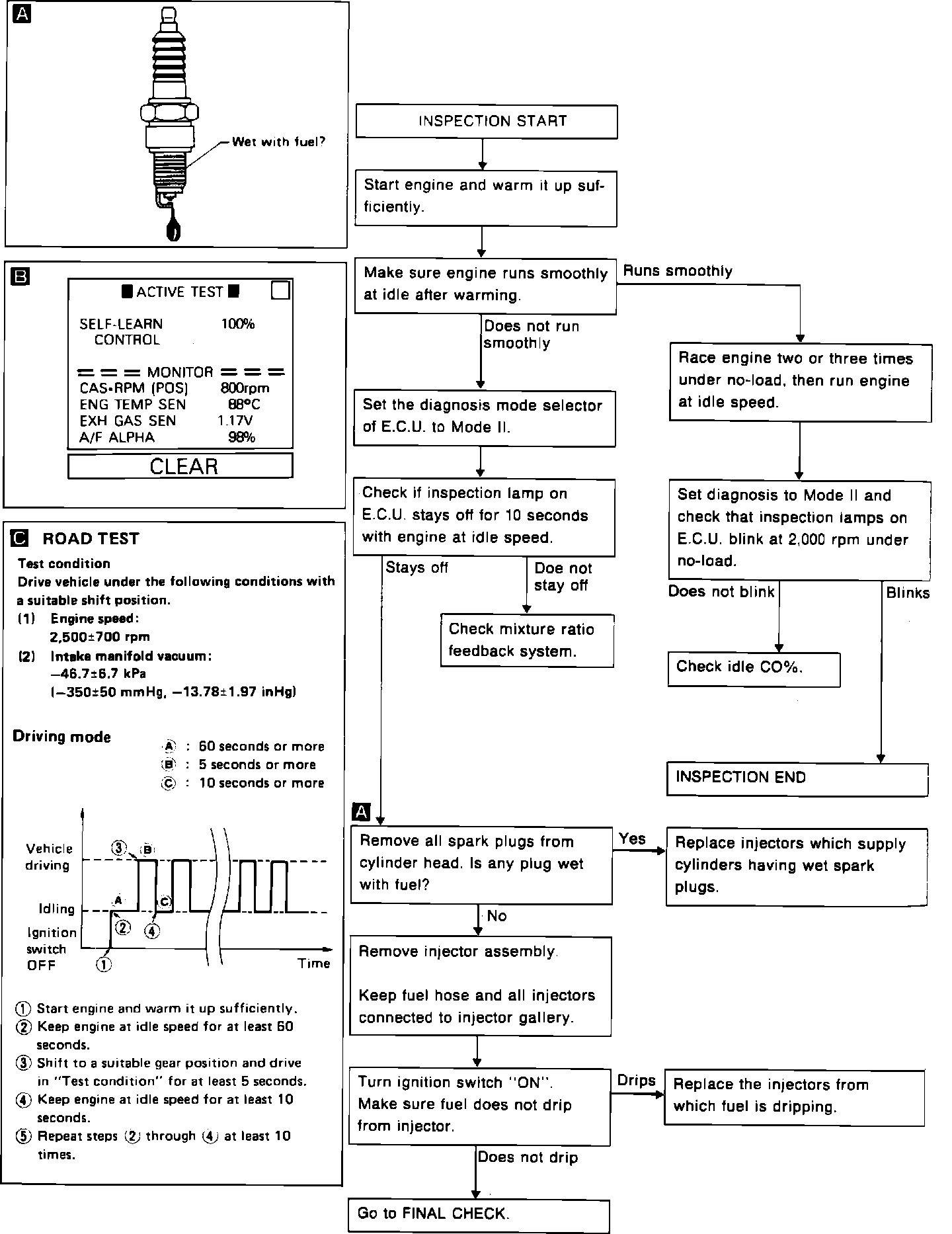

Fig. 112 Code 45, Injector Leak (Part 1 Of 2):

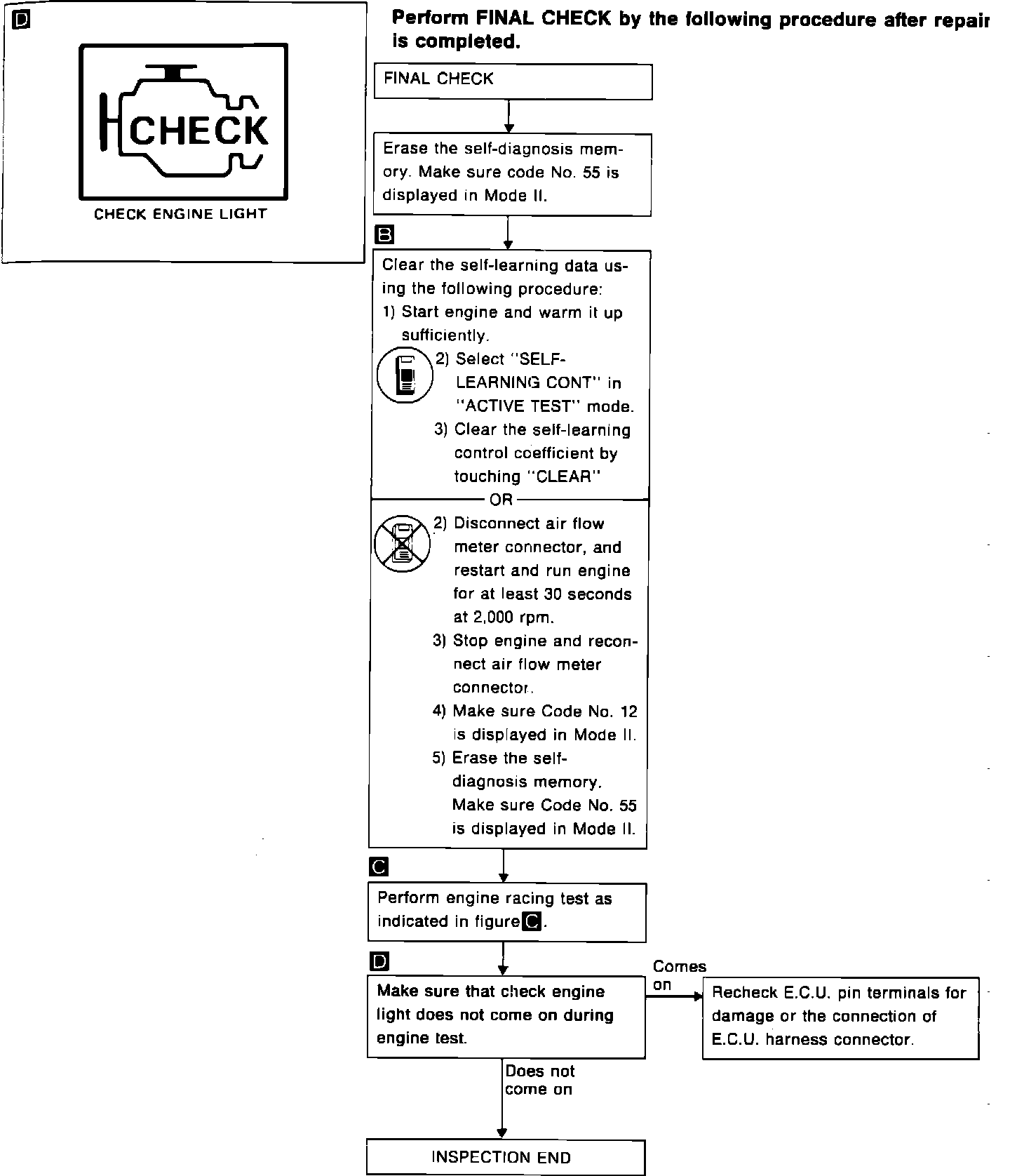

Fig. 112 Code 45, Injector Leak (Part 2 Of 2):
