Infiniti
>>
1992
>>
M30 V6-181 3.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
Code 33
Code 33

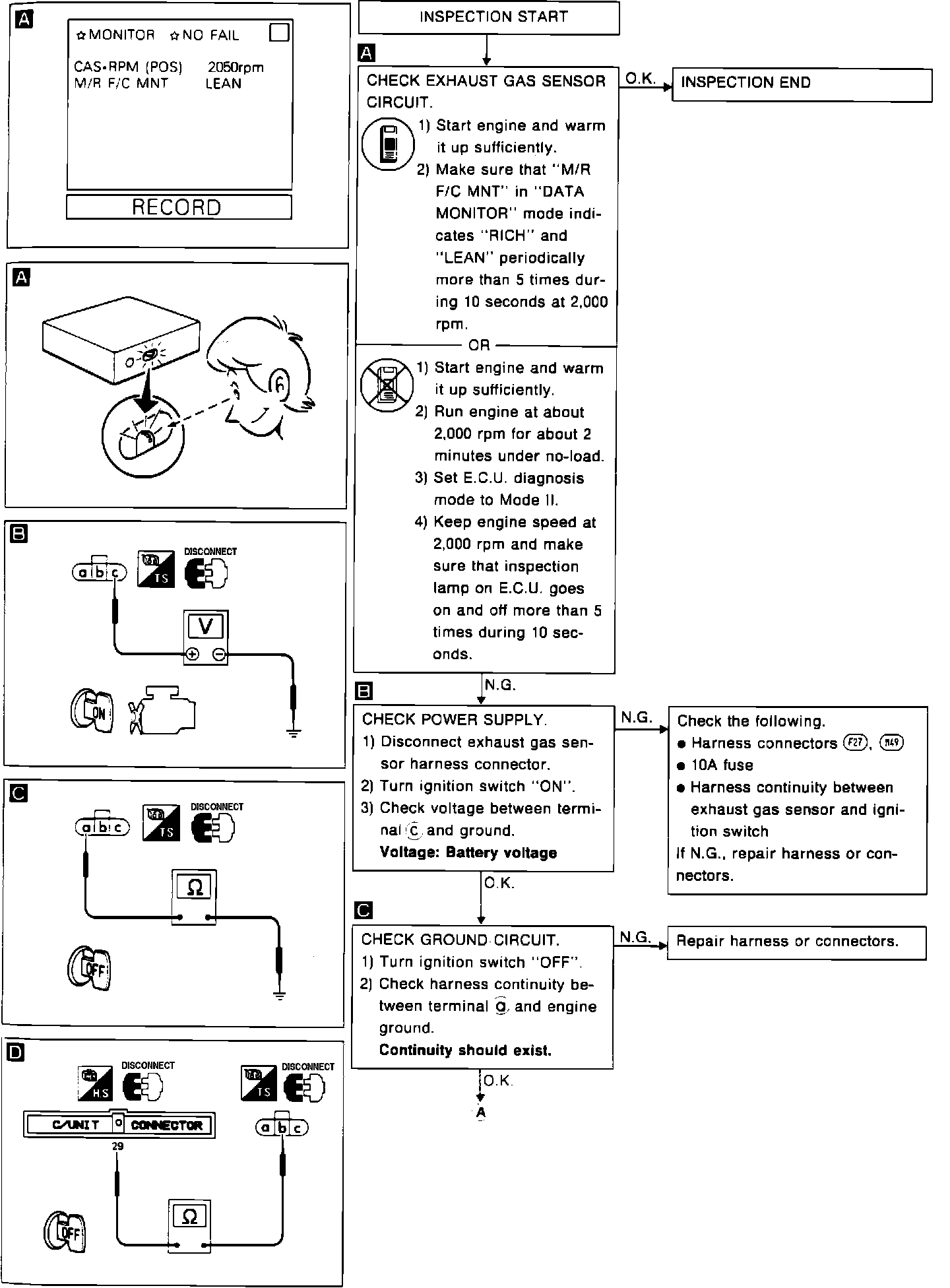

Fig. 107 Code 33, Oxygen Sensor (Part 1 Of 2):

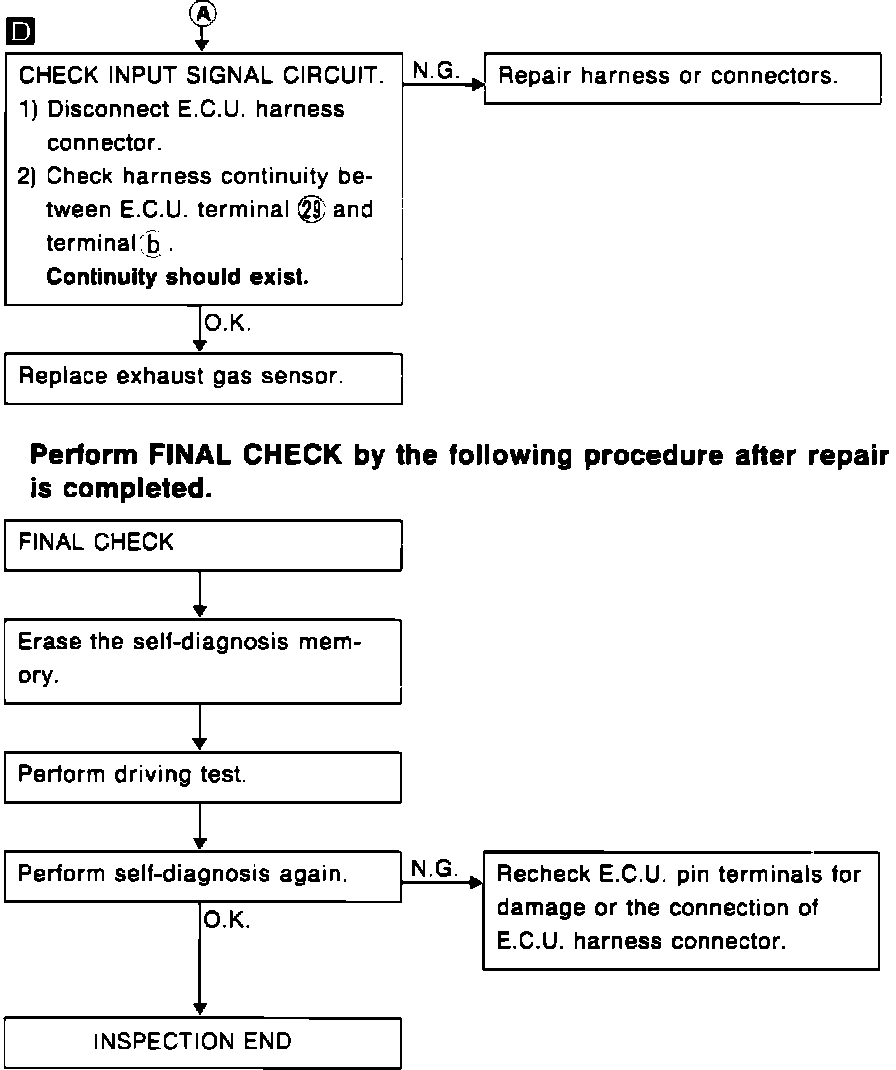

Fig. 107 Code 33, Oxygen Sensor (Part 2 Of 2):
