A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Air Bag System
>>
Warning Lamp Flash Code Chart
Warning Lamp Flash Code Chart

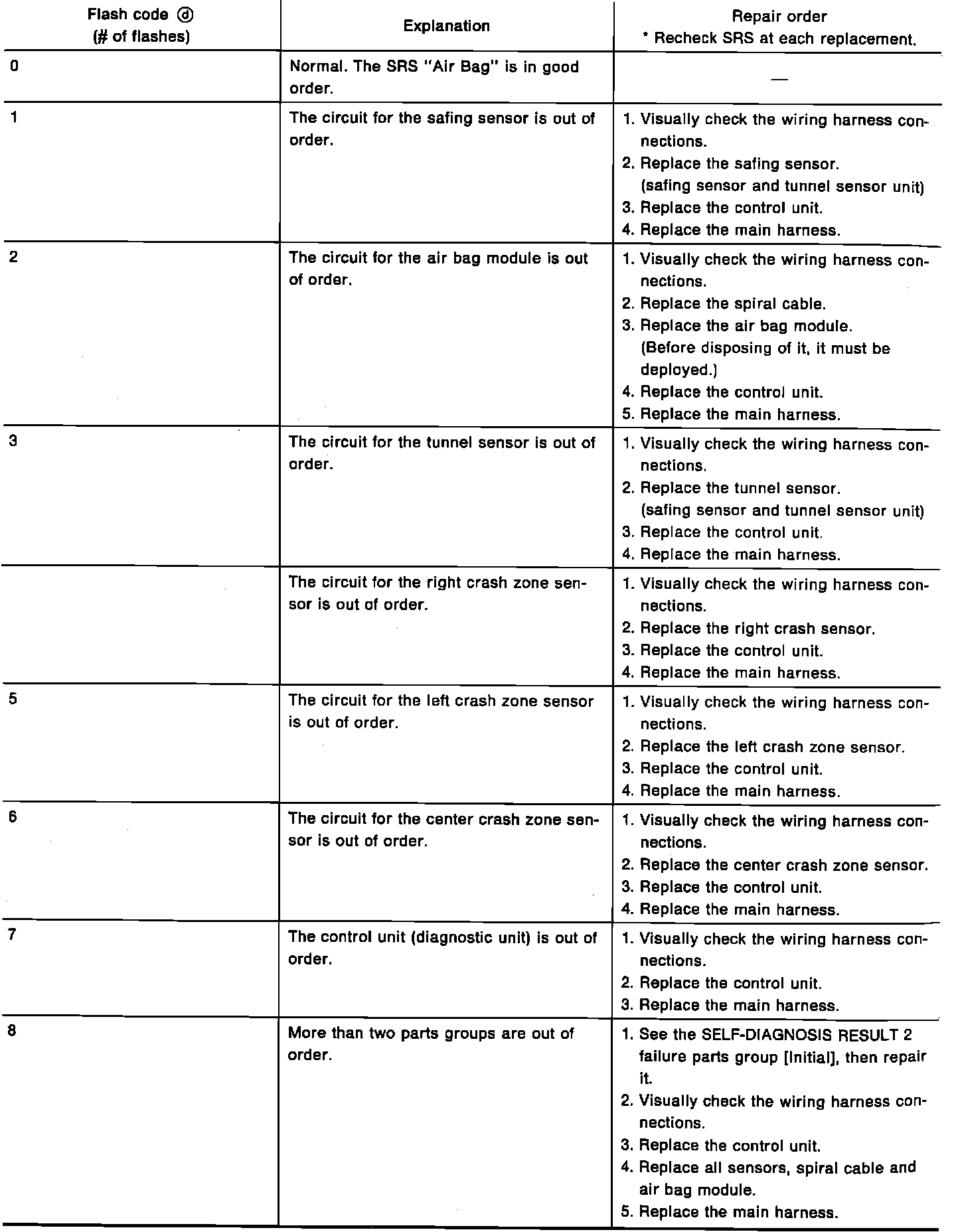

Fig. 6 Airbag Warning Lamp Flashing Times & Repair:
