Diagnostic Procedure 2

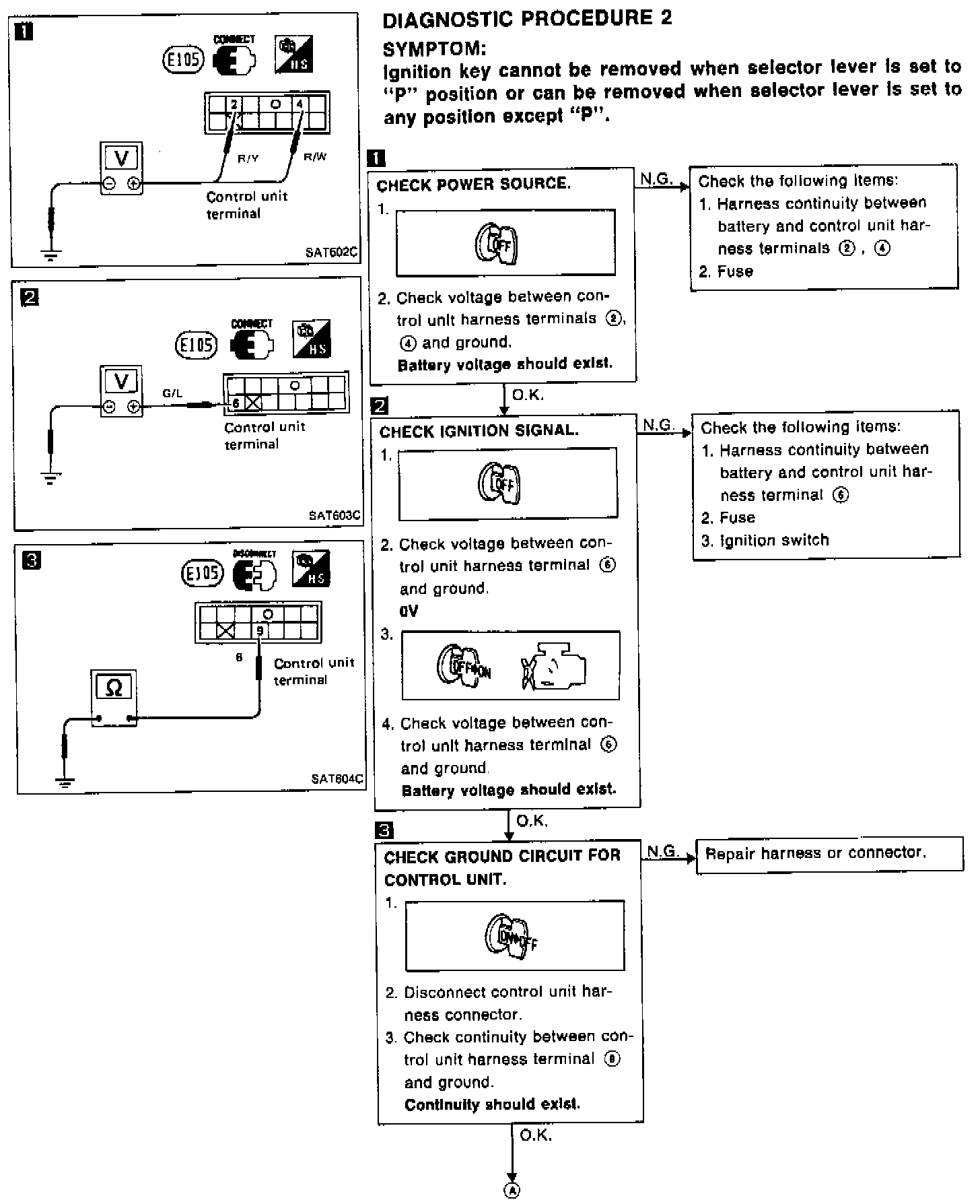

DIAGNOSTIC PROCEDURE 2

Step 1:

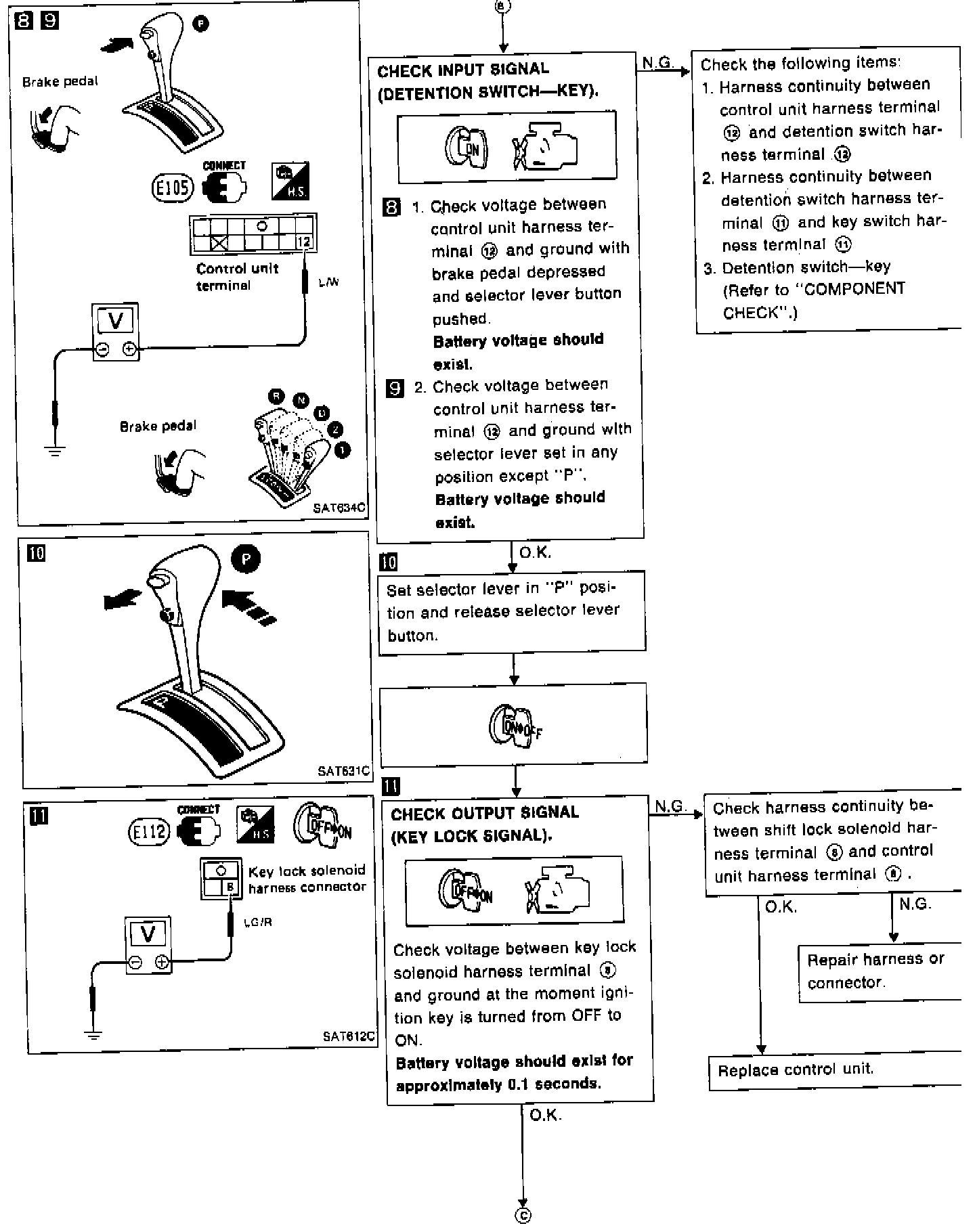

Step 2:

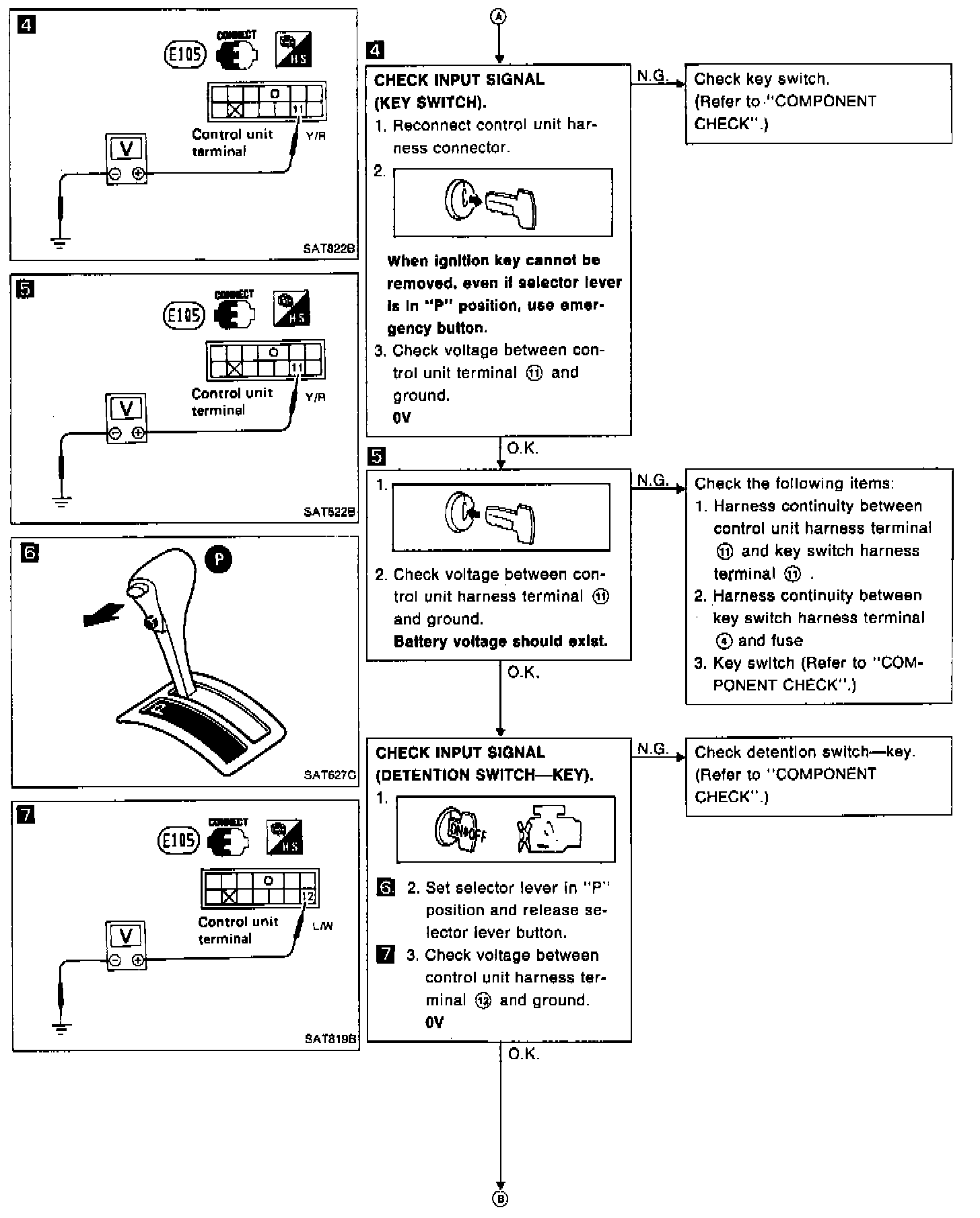

Step 3:

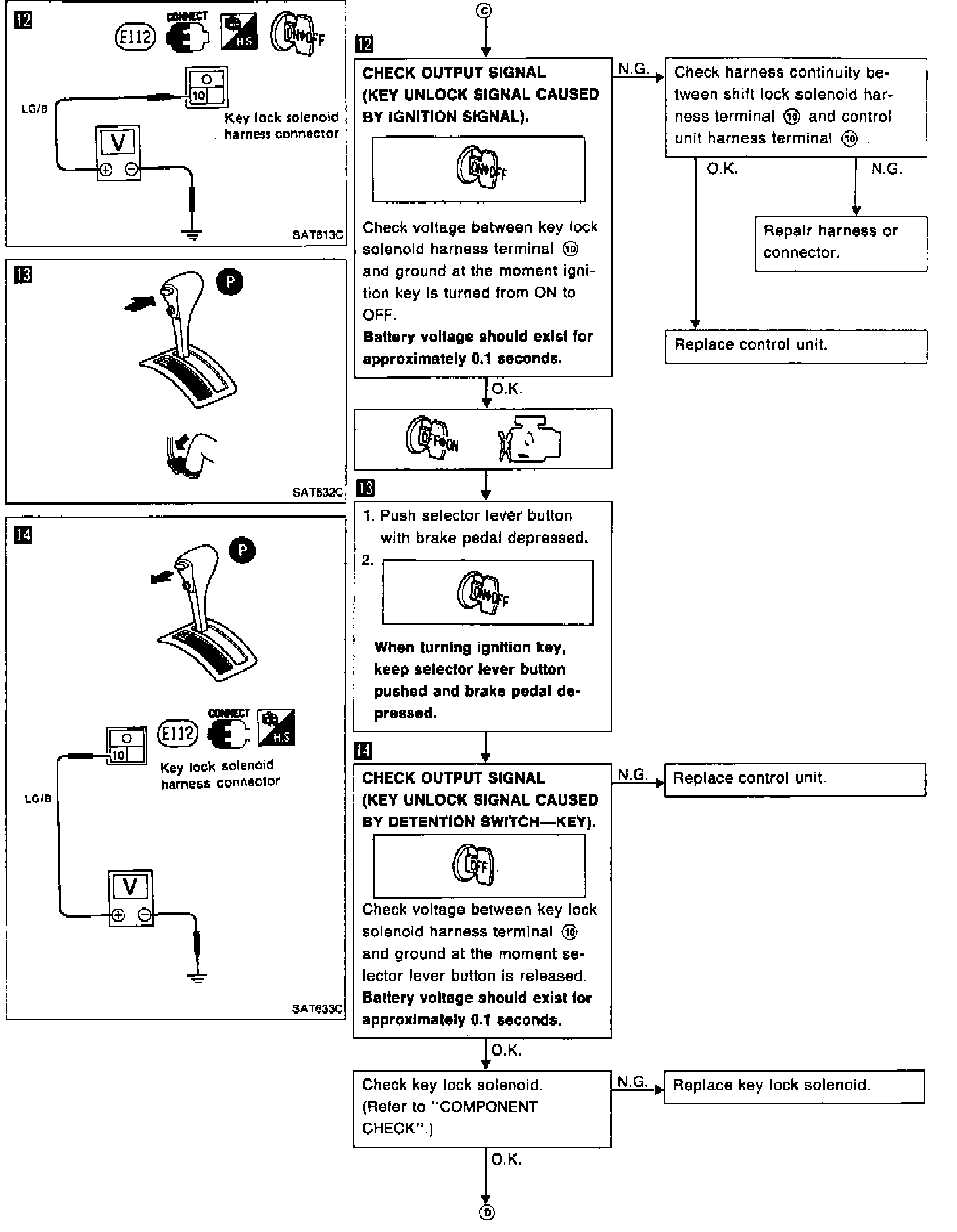

Step 4:





Step 5:









CIRCUIT DIAGRAM FOR QUICK PINPOINT CHECK
