Removal & Installation

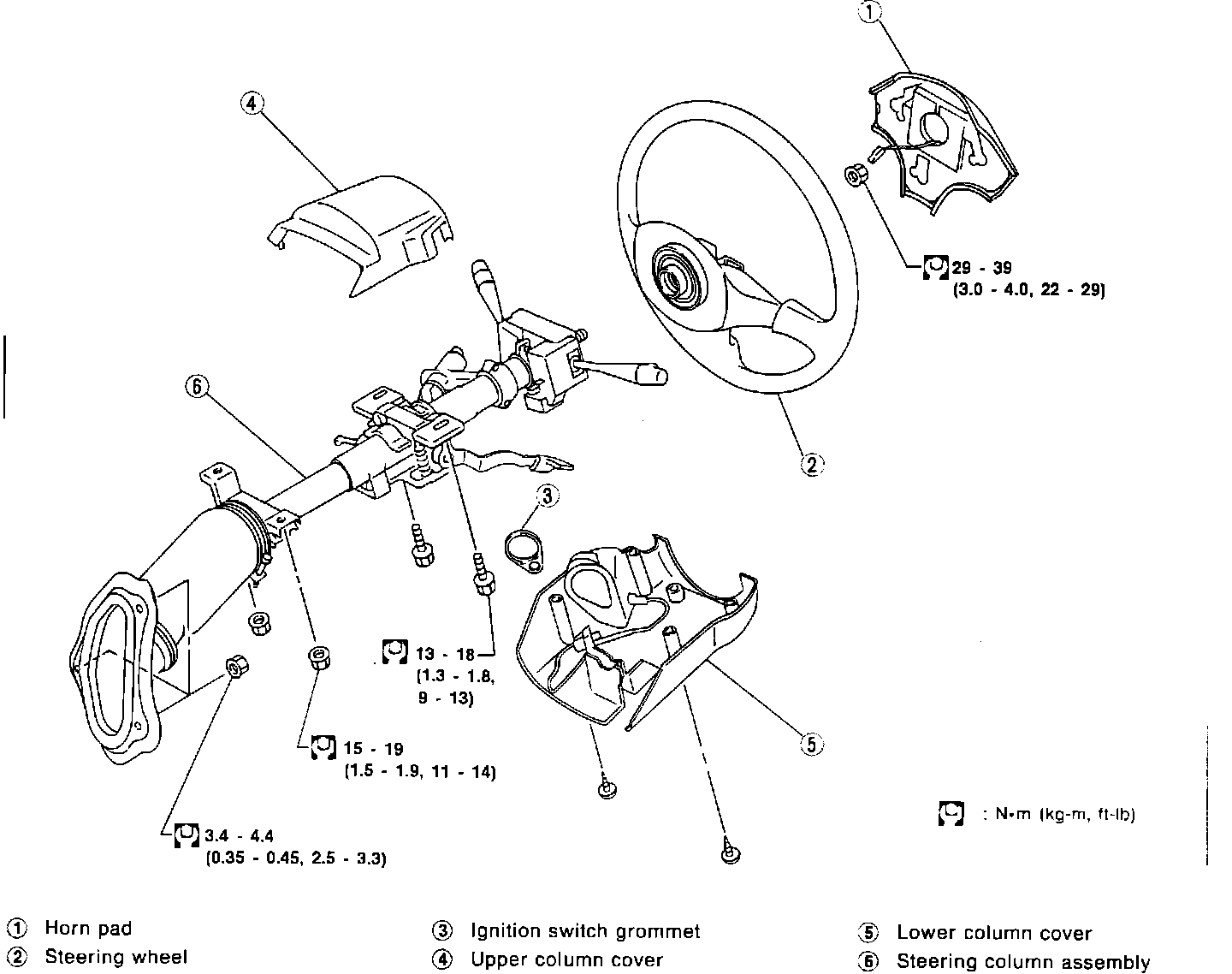

Fig. 1 Steering Column Removal.:

Fig. 4 Installing Coupler Joint To Shaft:

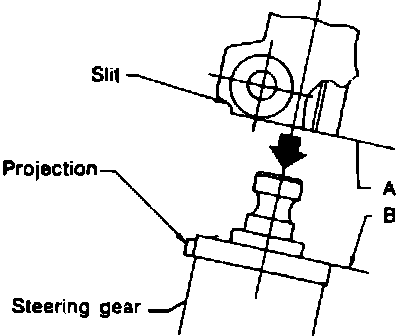

Fig. 5 Installing Lower Joint To Steering Gear.:

1. Remove steering wheel, refer to STEERING WHEEL.
2. Remove steering column as shown in Fig. 1.
3. Reverse procedure to install noting the following:
a. When installing column, loosely tighten all brackets and clamp attaching bolts. After all attaching bolts are installed, then secure all bolts.
b. When attaching coupler joint make sure cutout portion of shaft faces attaching bolt, Fig. 4.
c. When installing lower joint to steering gear, align slit of lower joint with projection on dust cover, Fig. 5.
