Related Diagnostic Information
Related Diagnostic Information

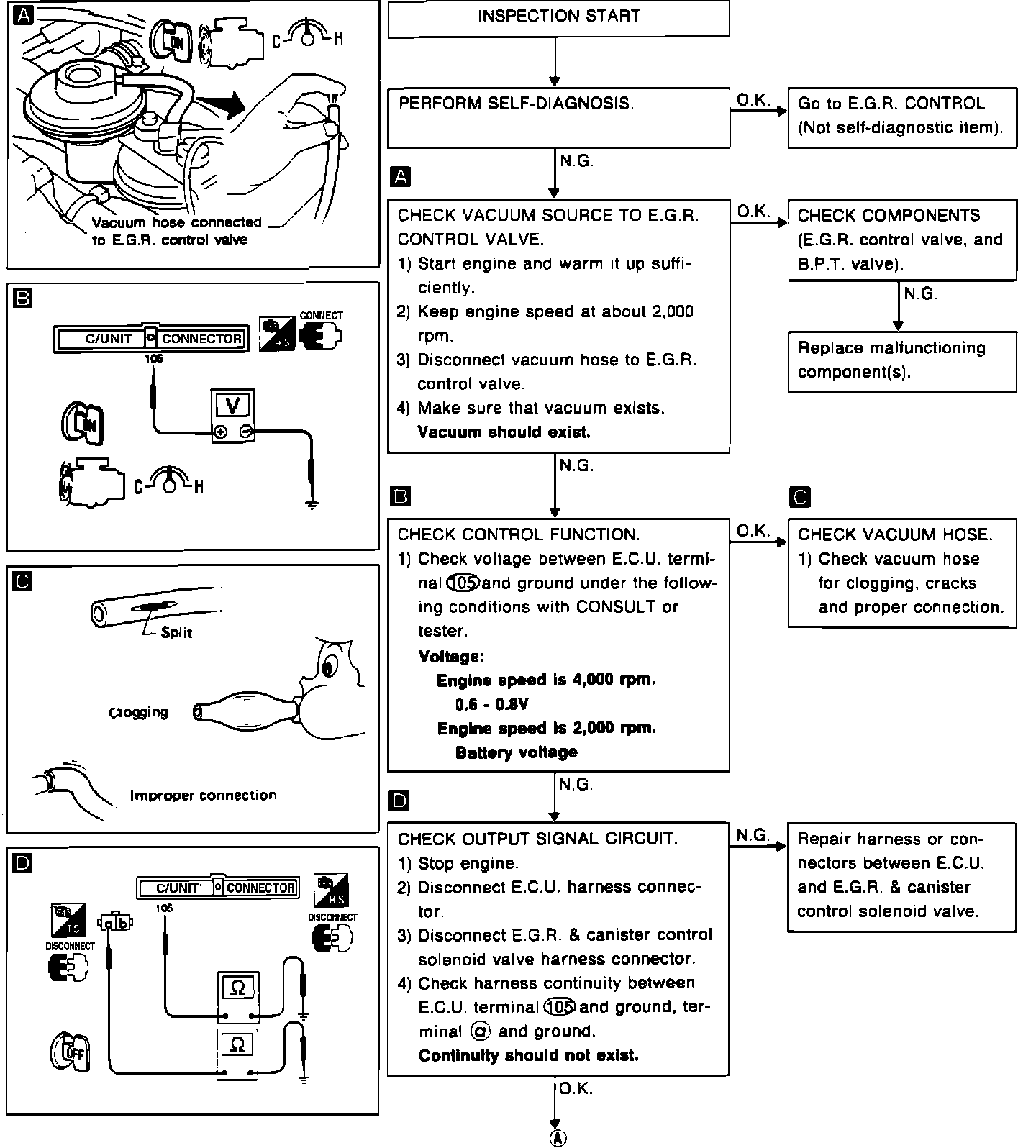

Fig. 56 Code 32, EGR Function (Part 1 Of 3):
Fig. 56 Code 32, EGR Function (Part 2 Of 3):

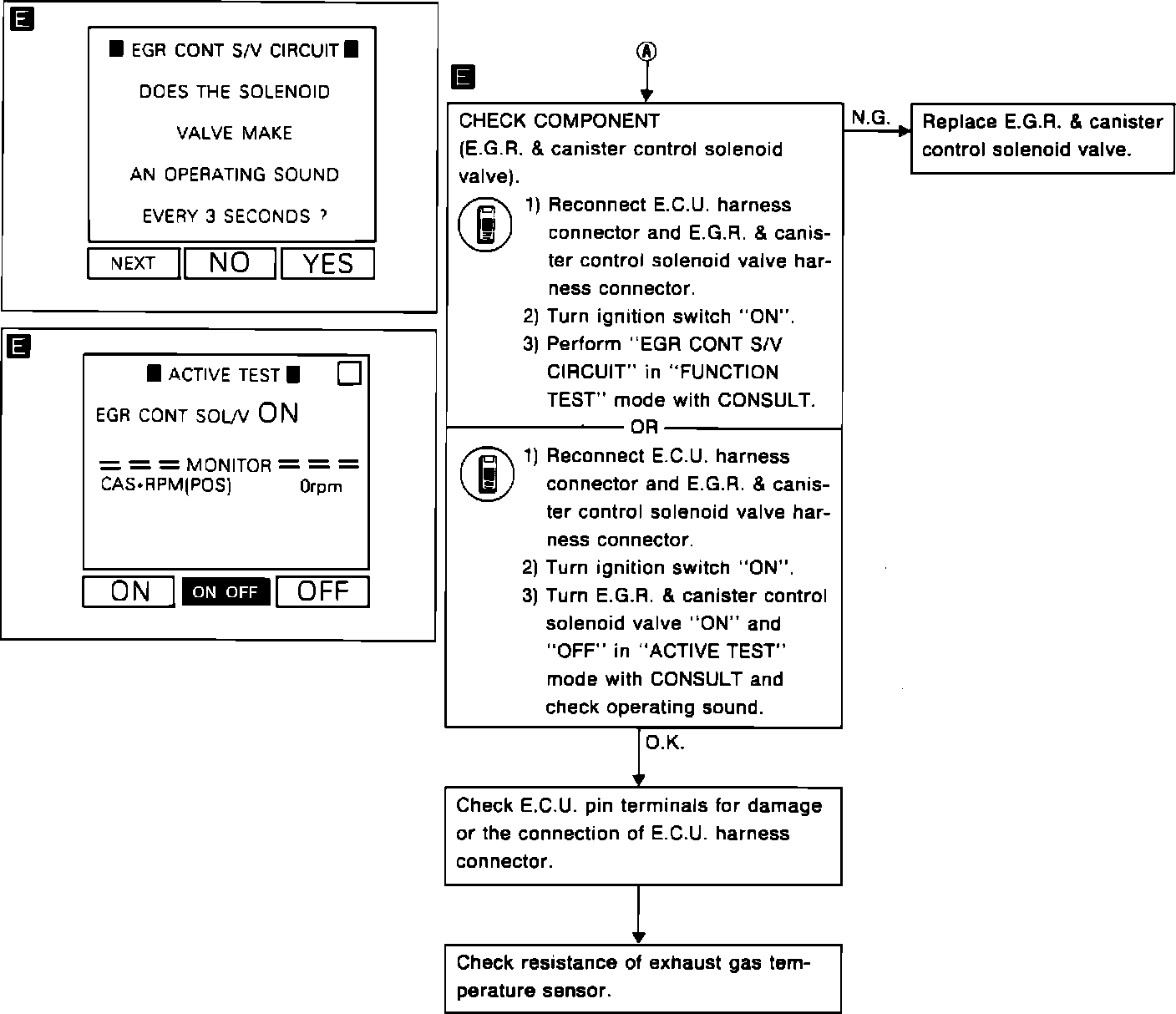

Fig. 56 Code 32, EGR Function (Part 3 Of 3):
