Air Induction Valve (A.I.V) Control Circuit

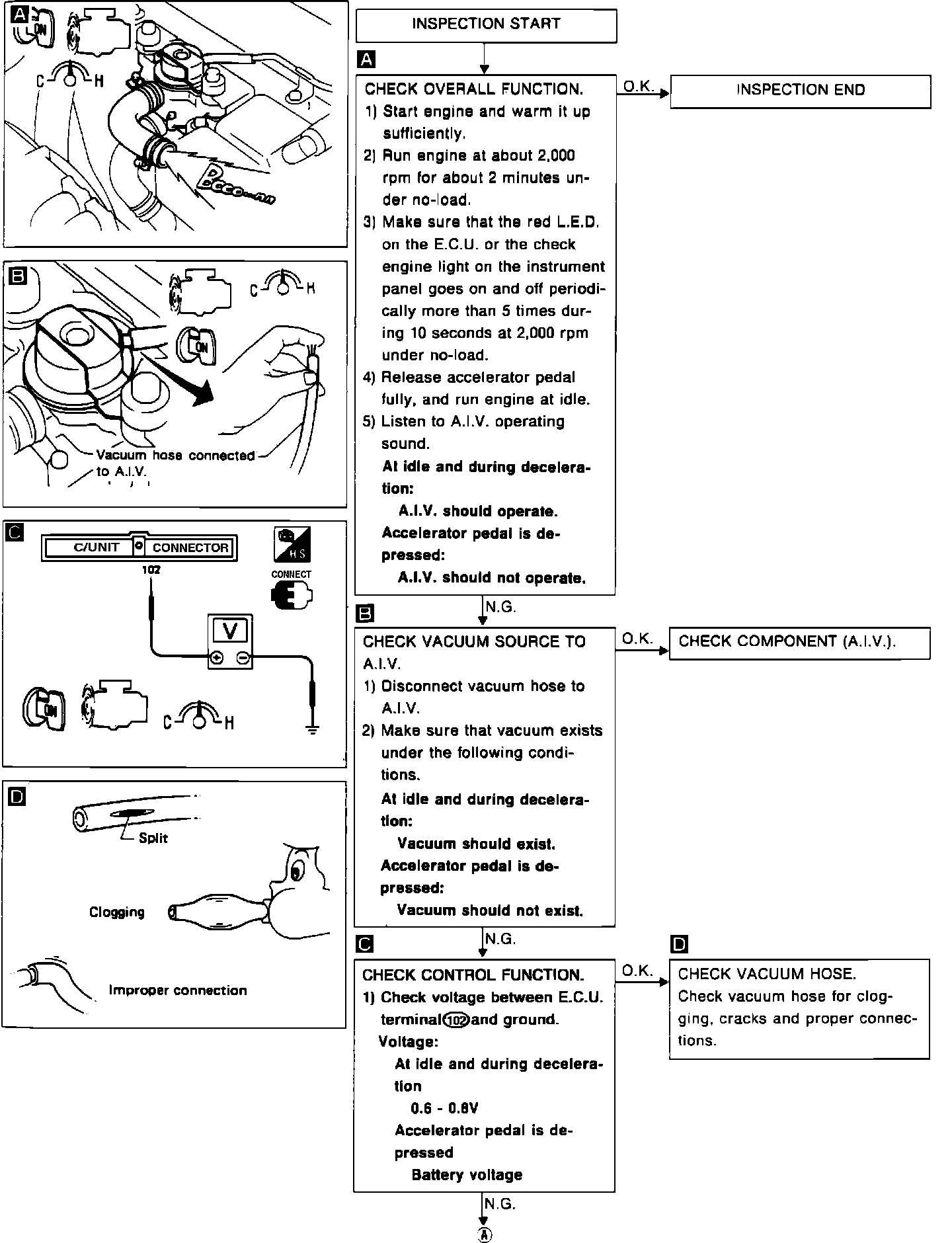

Fig. 90 Component Circuit Diagnosis, A.I.V. Control (Part 1 Of 2):

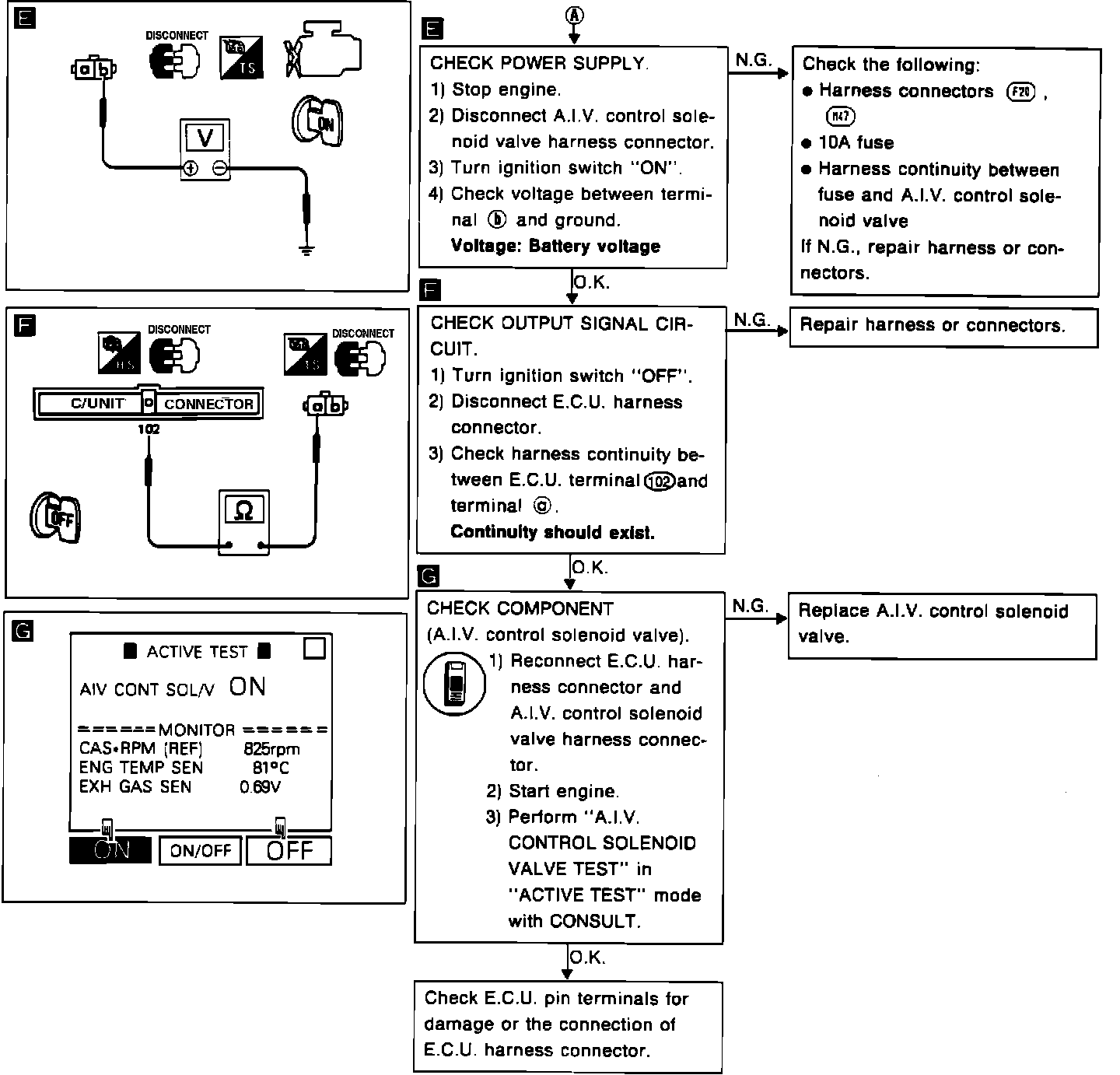

Fig. 90 Component Circuit Diagnosis, A.I.V. Control (Part 2 Of 2):
