Heated Oxygen Sensor Heater Circuit
Heated Oxygen Sensor Heater Circuit

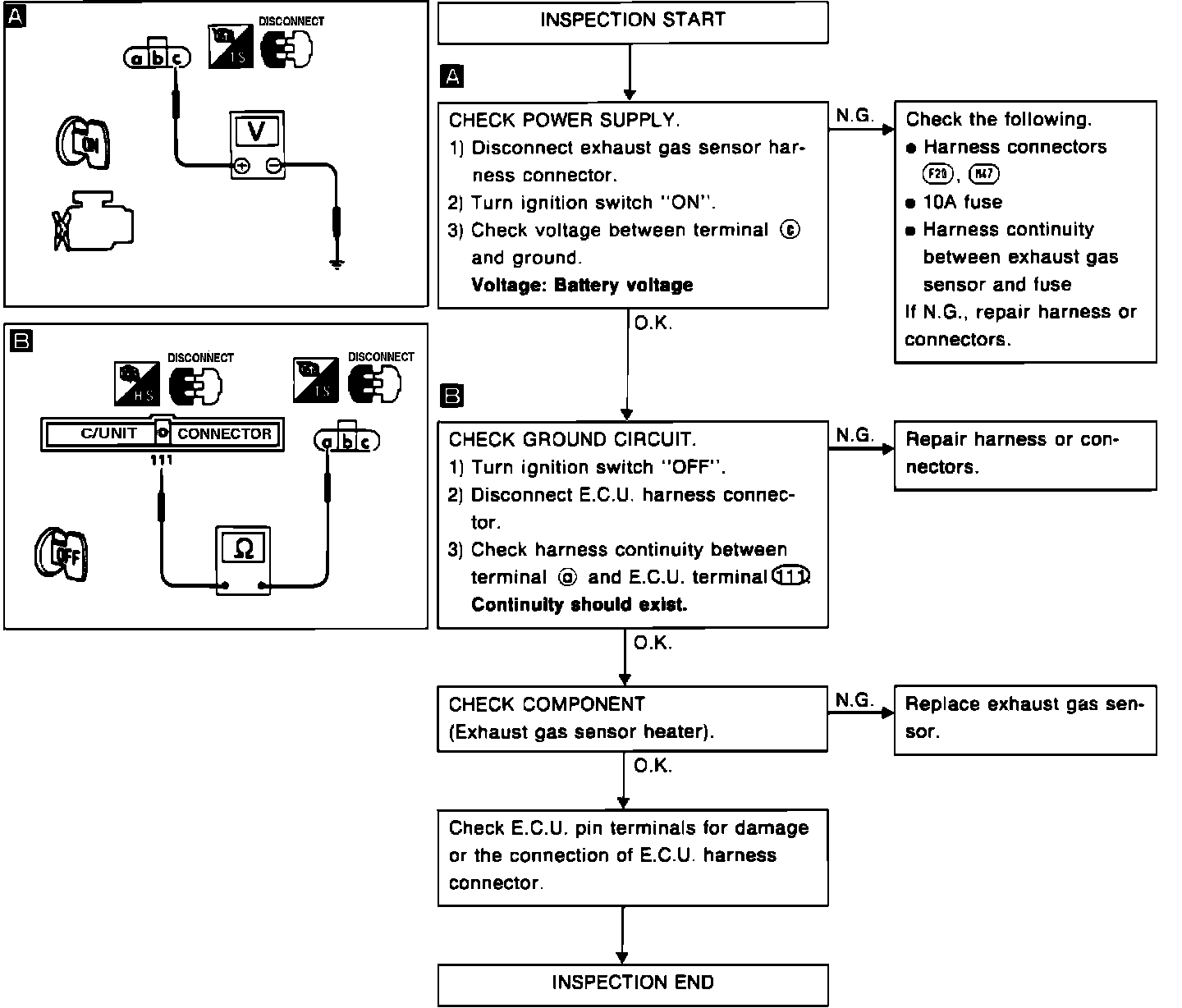

Fig. 88 Component Circuit Diagnosis, Exhaust Gas Sensor Heater:
