Engine Compartment Main Harness and Connectors

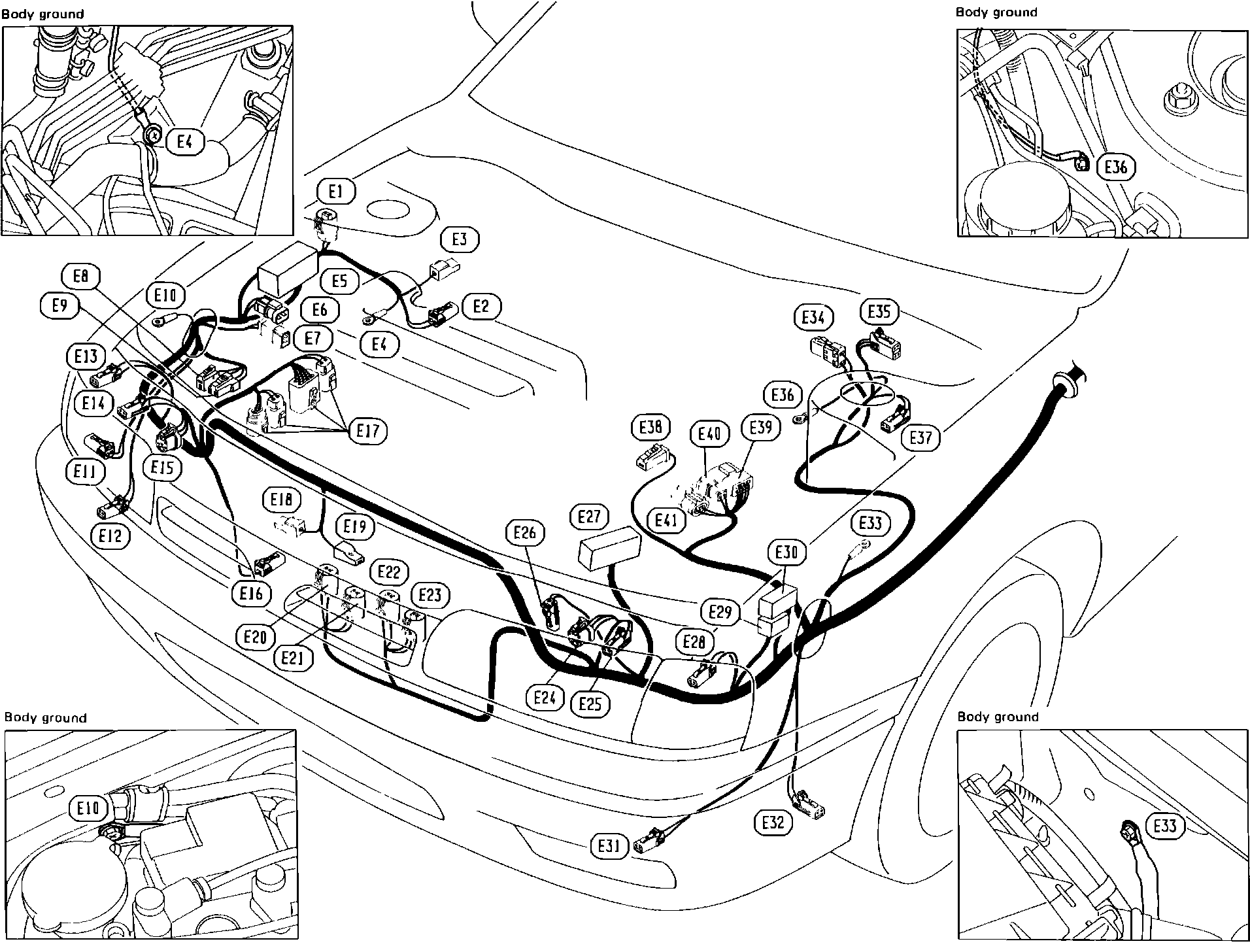

Harness Routing, Engine Compartment:

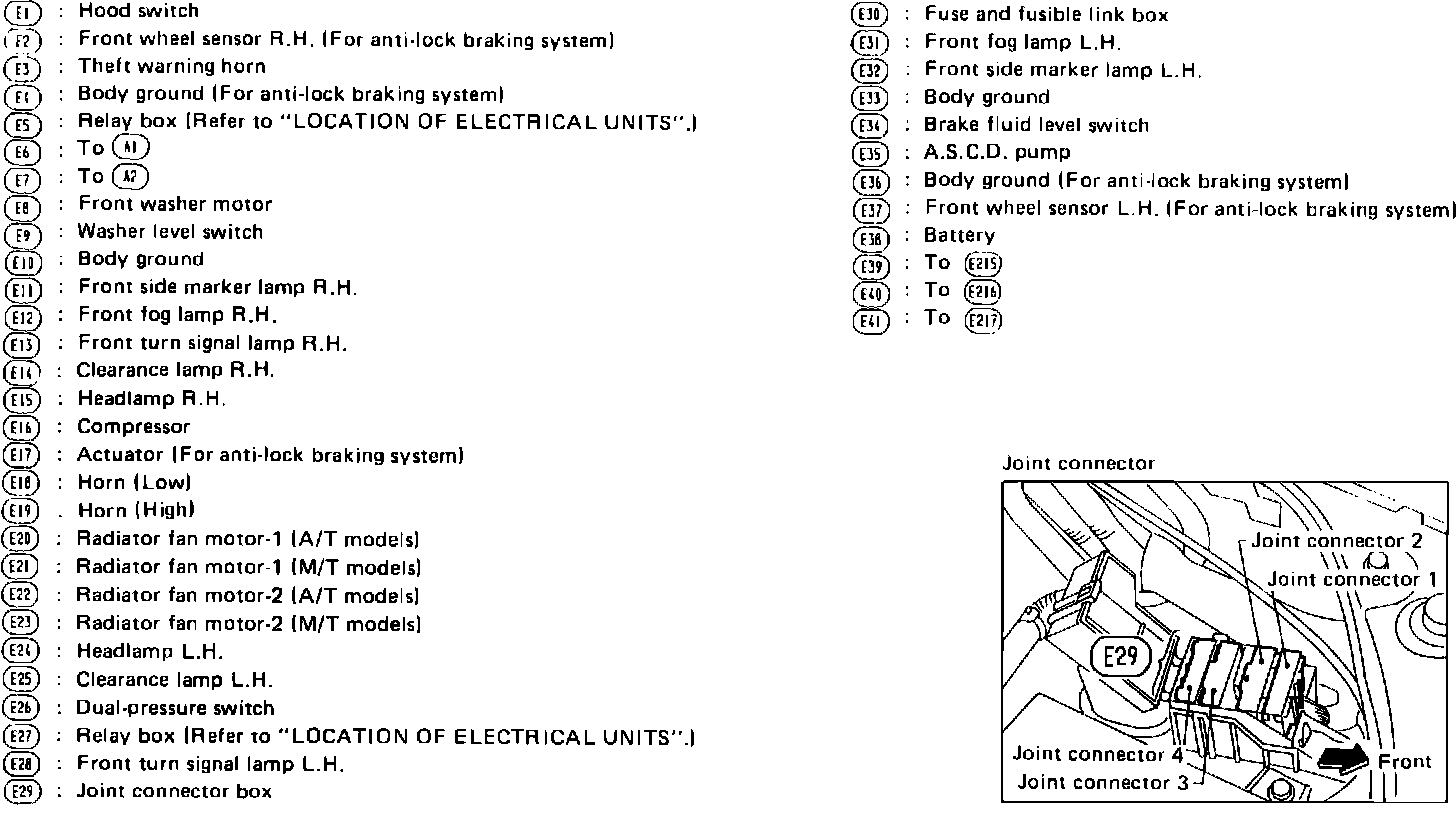

Engine Compartment Harness Legend:
