Infiniti
>>
1992
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
>>
Ducts and Registers
Ducts and Registers

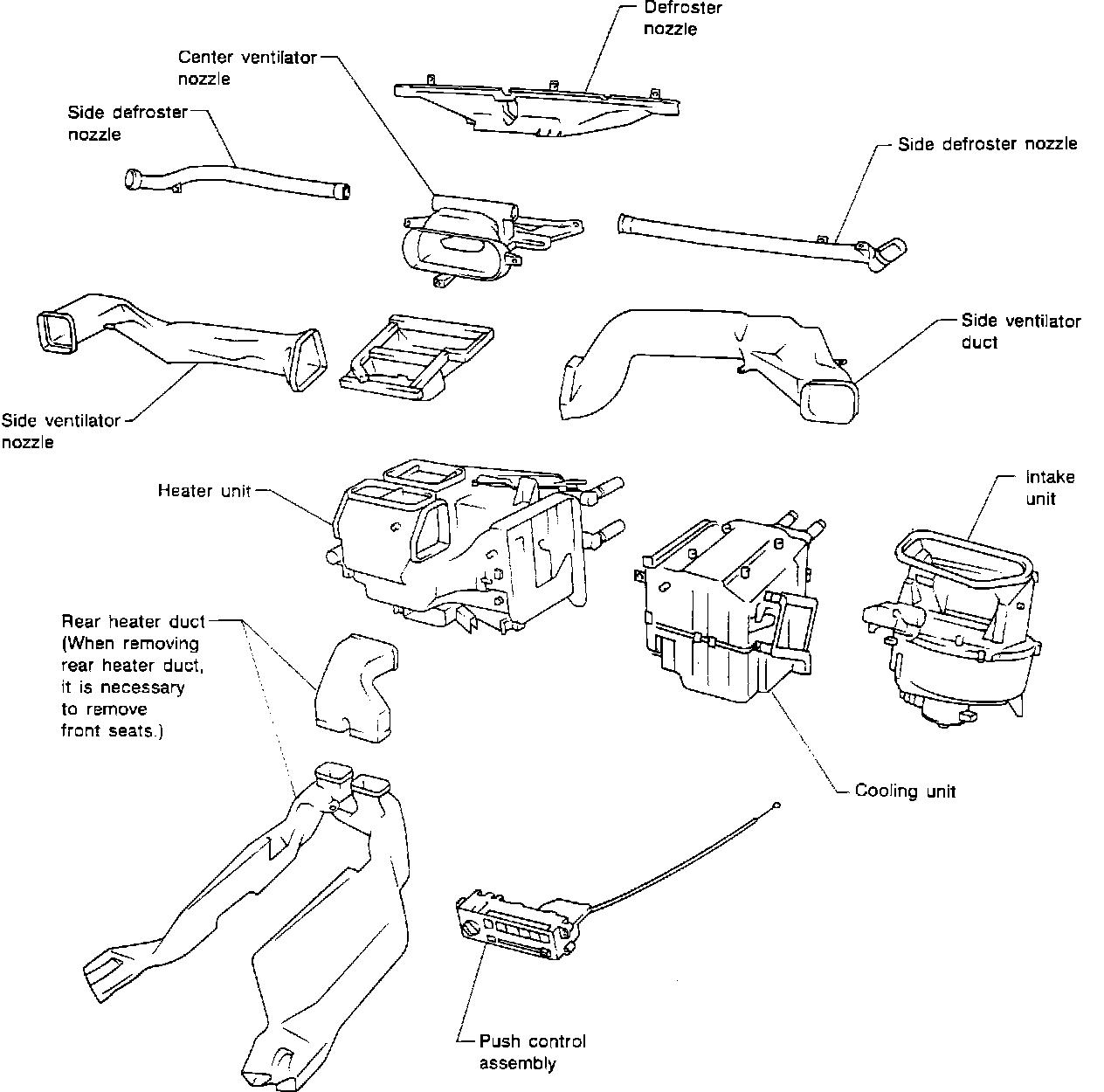

Fig. 6 Heater & A/C Assembly.:
