Seat Belt Systems
Seat Belt Systems

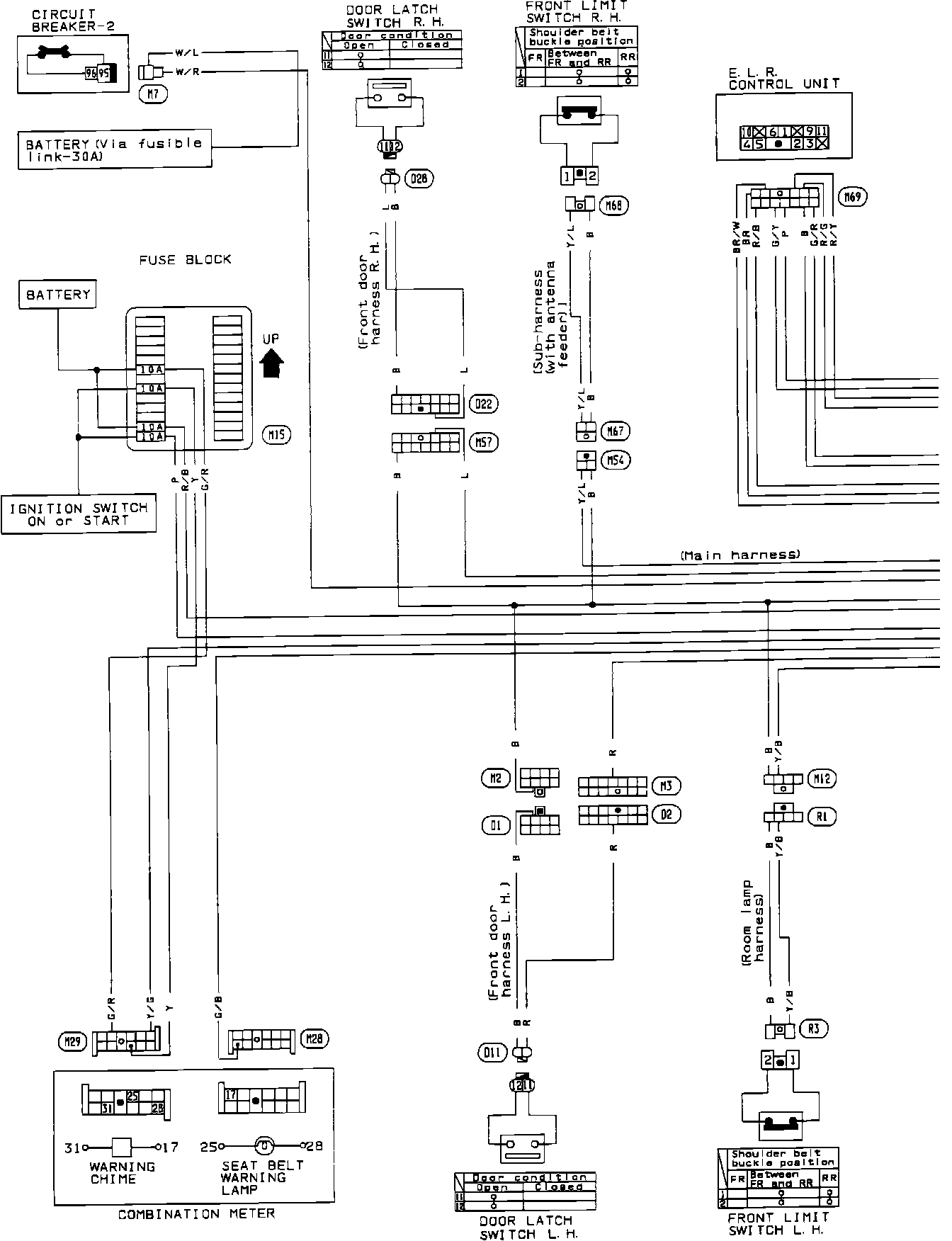

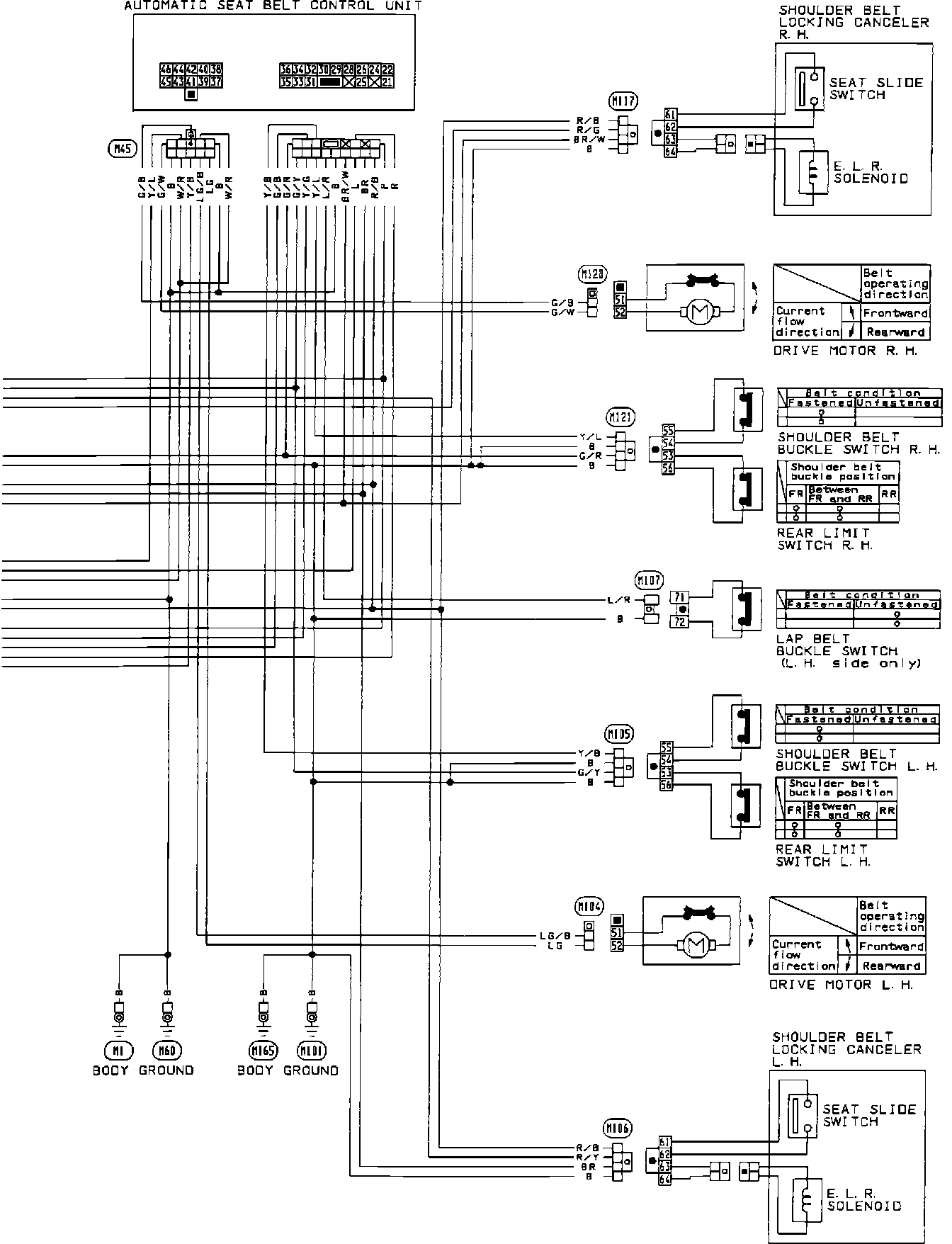

Motorized Seat Belt System Wiring:
Motorized Seat Belt System Wiring:
