Infiniti
>>
1992
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

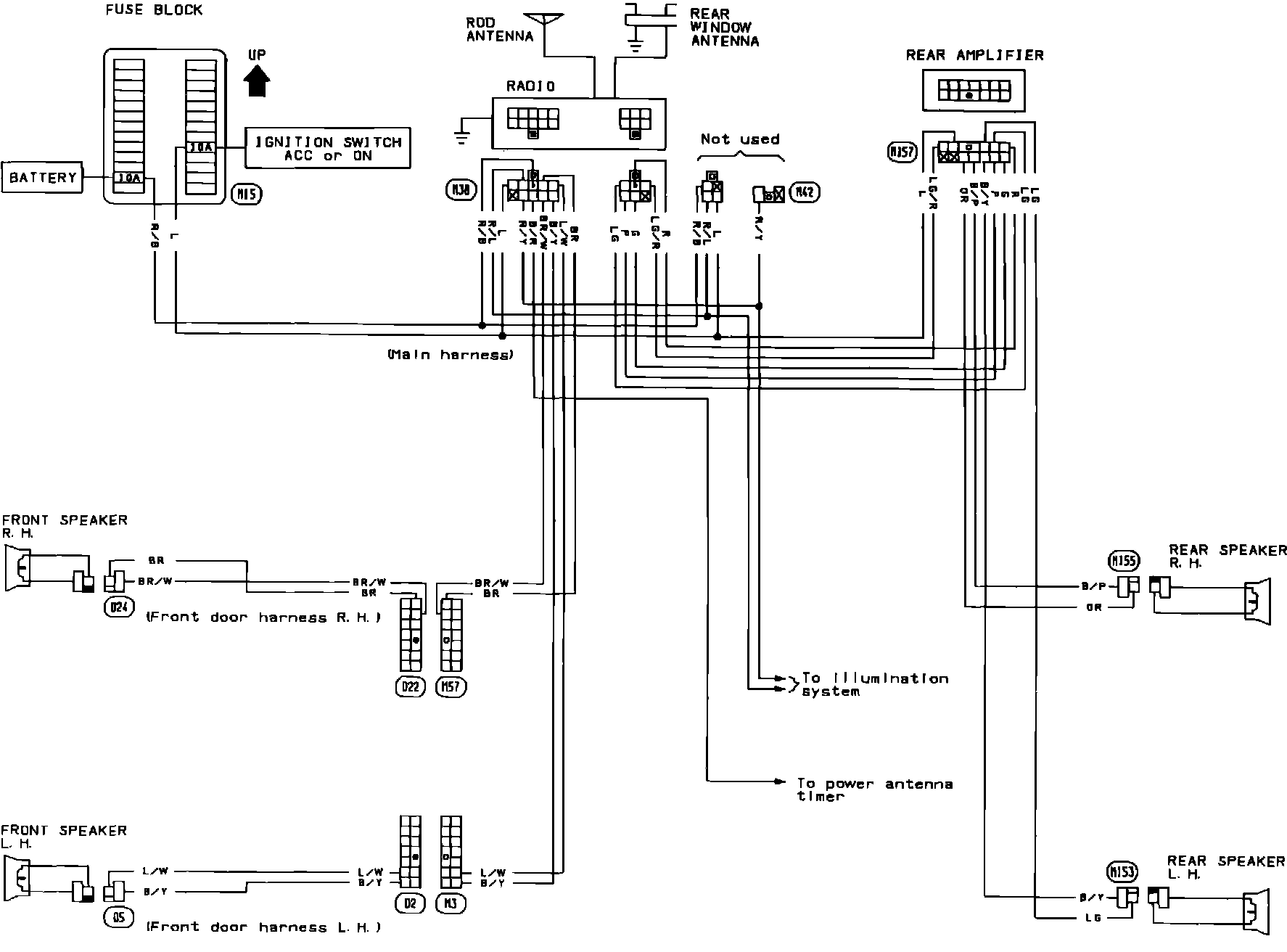

Audio System Wiring
Audio System Wiring
Audio System Wiring:
