Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

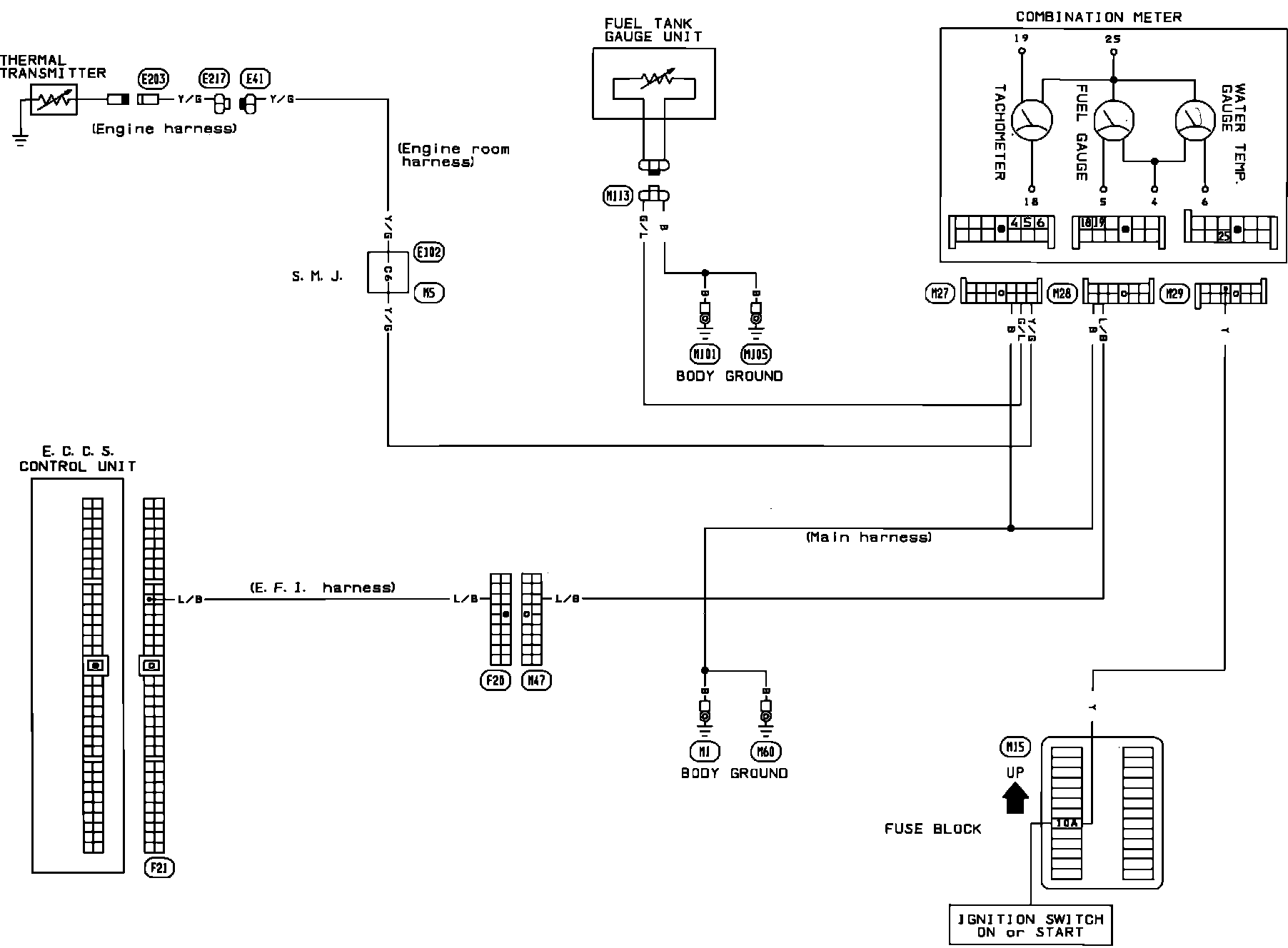

Tachometer, Temp., Oil And Fuel Gauges:
