Charging System Wiring Diagrams
Charging System Wiring Diagrams
Charging System:

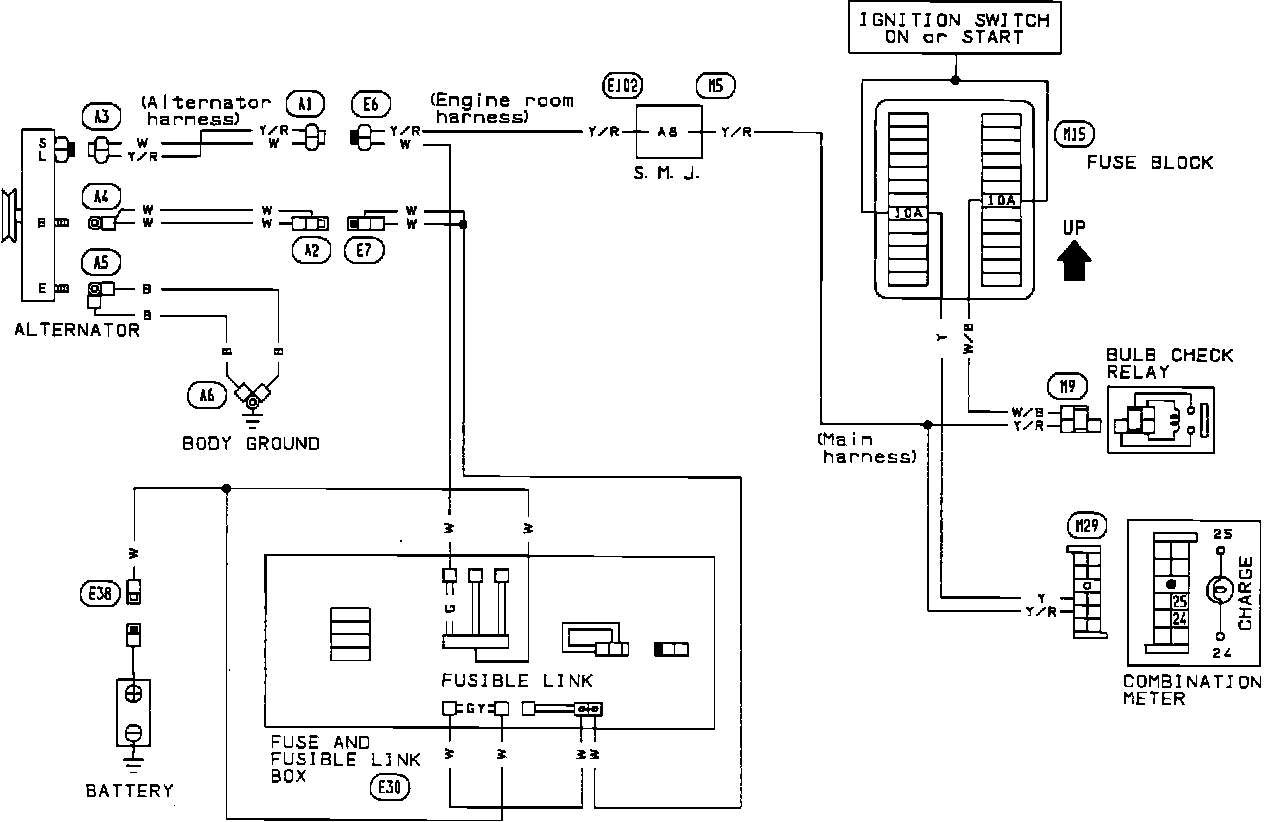

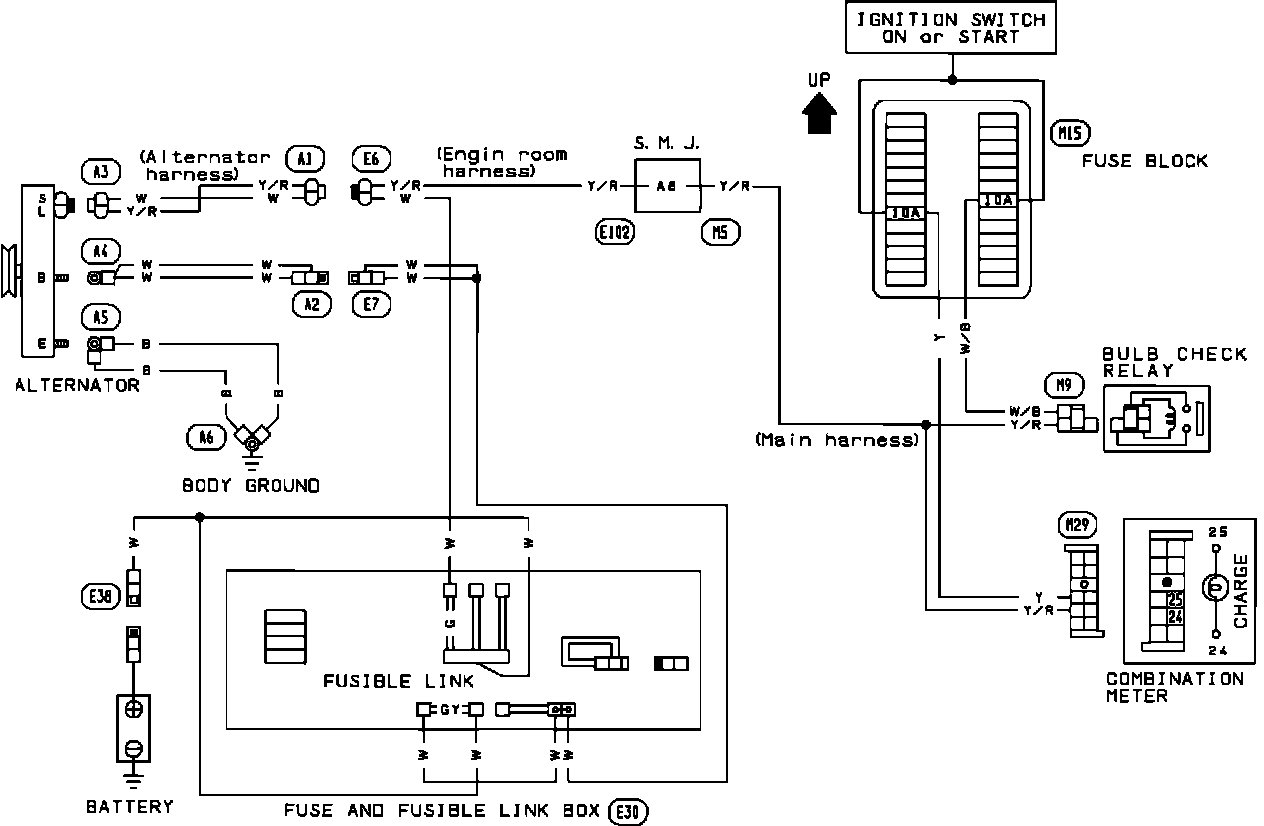

Fig. 8 Alternator Wiring Circuit.:
