Infiniti
>>
1992
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
Cellular Phone

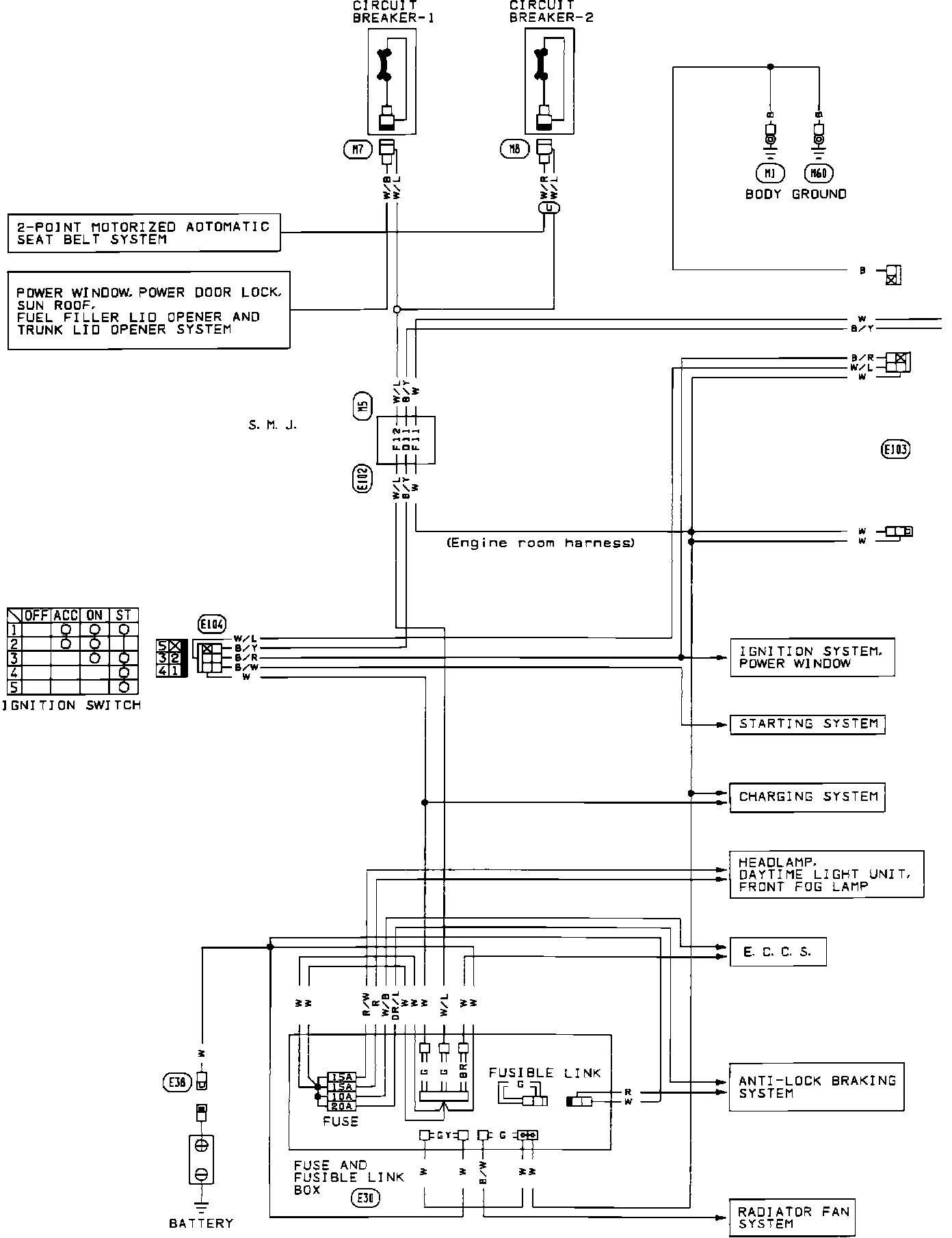

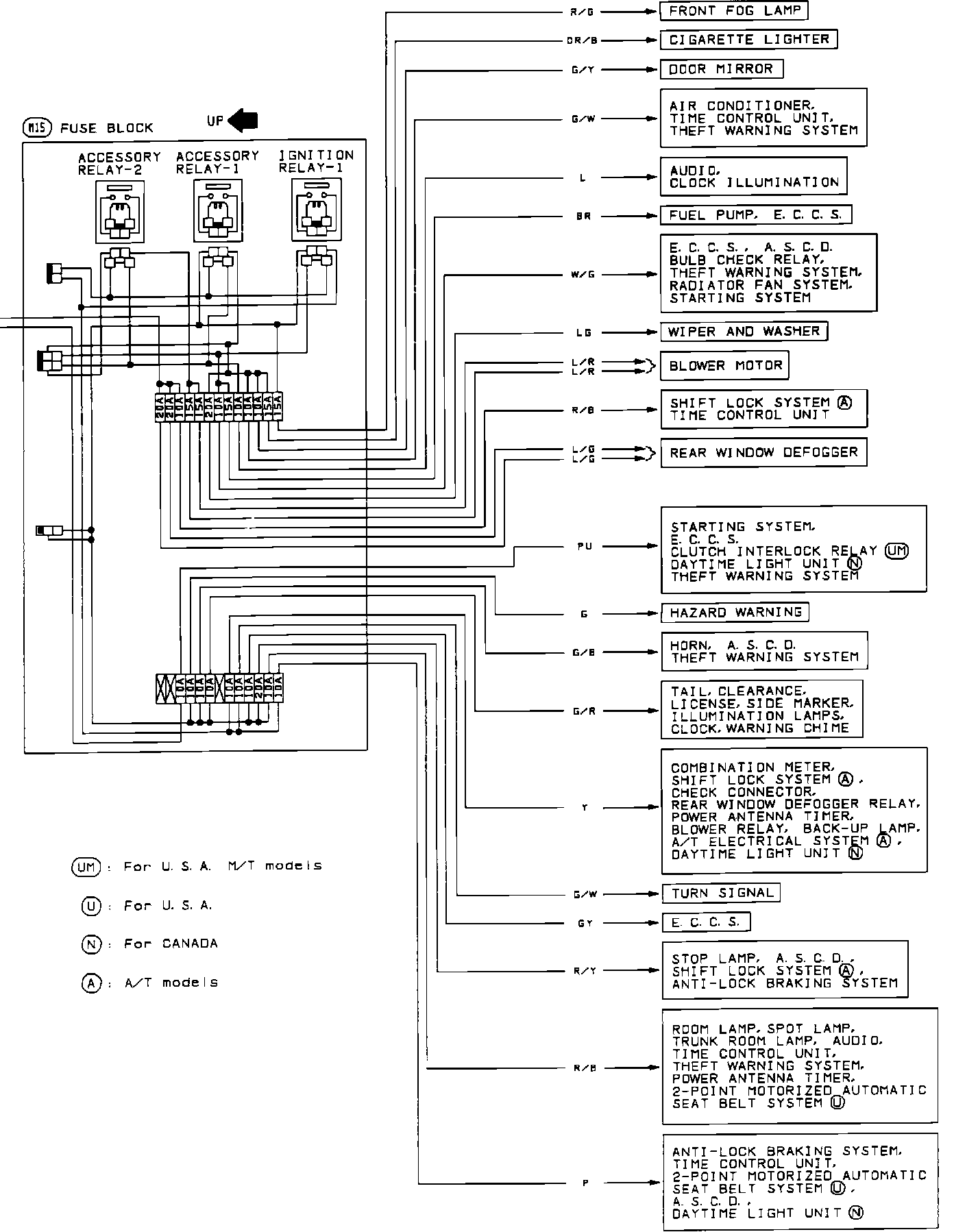

Power Supply And Fuse Block Wiring:
Power Supply And Fuse Block Wiring:
