Removal

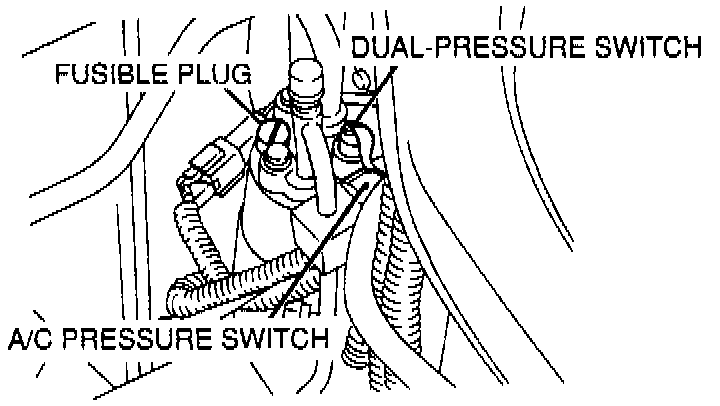

1. Disconnect the two tubes from the top of the receiver dryer. Save the two bolts and place blind caps on the end of the tubes.

2. Disconnect the vehicle harness from the A/C pressure switch connector (brown).

3. Disconnect the vehicle harness from the dual pressure switch connector (gray).

4. Remove the dual pressure switch connector (gray) from the receiver mounting bracket tab.

5. Loosen the receiver/dryer mounting bracket and save the bolt.

6. Remove the receiver-dryer.
