GVWR/GAWR (FR) Labels Incorrect

9223infiniti01

Models
1991 Q45

Section
General Information

Classification
GI91-006

Bulletin No.
ITB91-041

Date
August 2, 1991


FMVSS CERTIFICATION LABEL CORRECTION


APPLIED MODELS:
1991 Q45, all with Full Active Suspension (FAS)

APPLIED VINS:
JNKNG01C(x)MM100051 - 115526

SERVICE INFORMATION:

All affected vehicles were produced with an FMVSS Certification Label that indicates an incorrect Gross Vehicle Weight Rating (GVWR) and Gross Axle Weight Rating Front (GAWR)(FR).

SERVICE PROCEDURE:

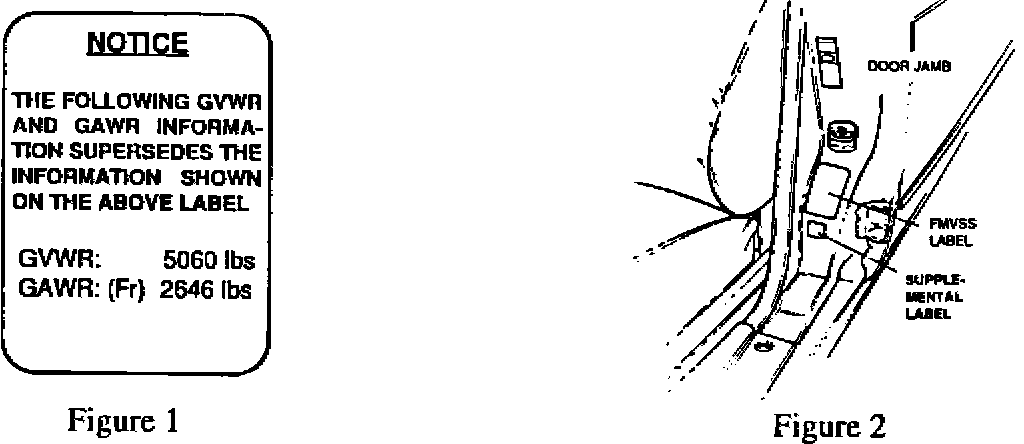

A correcting supplemental label (Fig. 1) must be placed on each affected vehicle (including new units in dealer inventory and dealer demonstrators). Retailed units should be corrected when owners return to an Infiniti dealership for any type of service. The FMVSS label is located on the driver's side door pillar. The area immediately below the FMVSS label should be cleaned to ensure it is free of grease, dirt or waxes, and a supplemental label applied. (See Fig. 2.)


PARTS INFORMATION:

A supply of labels is enclosed with this bulletin. Additional labels can be obtained from Dyment Distribution Services using normal Infiniti Forms and Literature ordering procedures. Order using code INF-011.

WARRANTY INFORMATION:

PNC CS CT OP CODE F.R.T.
P1199 9Y 99 P11991 0.2 Hr.
