Toe-In

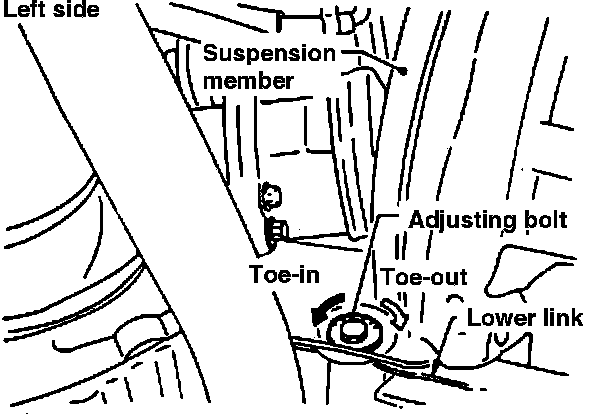

Fig. 2 Rear Toe-in Adjustment (except Super HICAS Steering).:

Except Super HICAS Steering

1. Adjust toe-in by turning lower link adjusting pins. Fig. 2.
2. Toe-in changes approximately .059 inch with each graduation of the adjusting pin.
3. Torque adjusting pin to 51-65 ft. lbs.

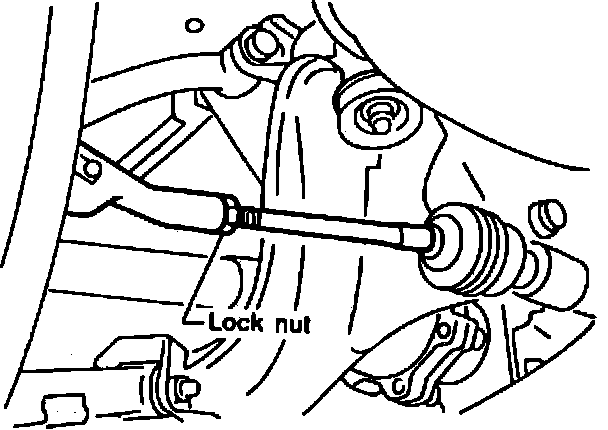

Fig. 3 Rear Toe-in Adjustment (Super HICAS Steering).:

Super HICAS Steering

1. Adjust toe-in by varying length of power cylinder lower links. Fig. 3.
a. Loosen lock nuts.
b. Turn lower links forward or backwards.
2. Ensure both lower links are same length.
3. Torque lock nuts to 27-34 ft. lbs.
