Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1991
>>
M30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission Controls
>>
Electronic Shift Controls
Electronic Shift Controls

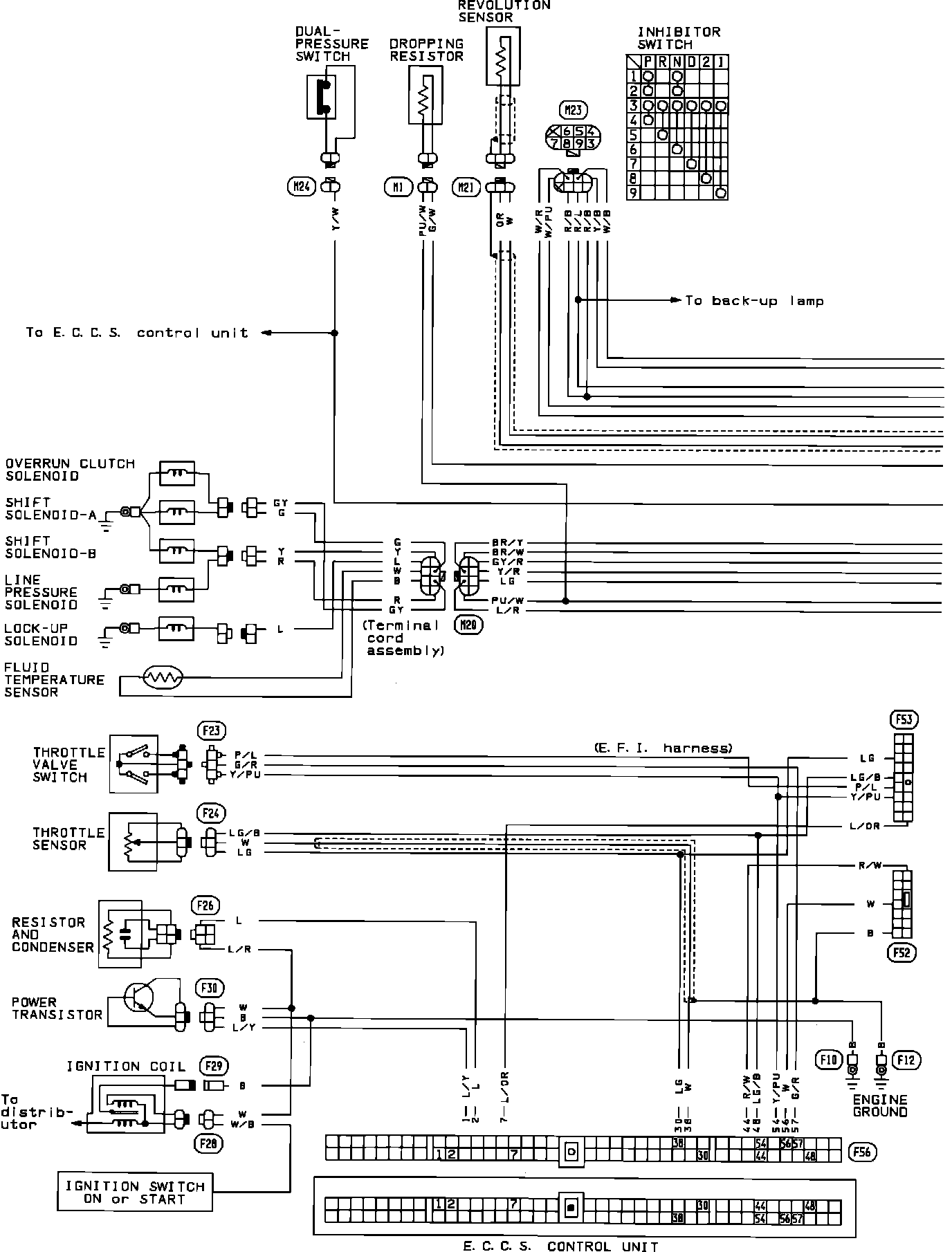

Automatic Transmission Controls:

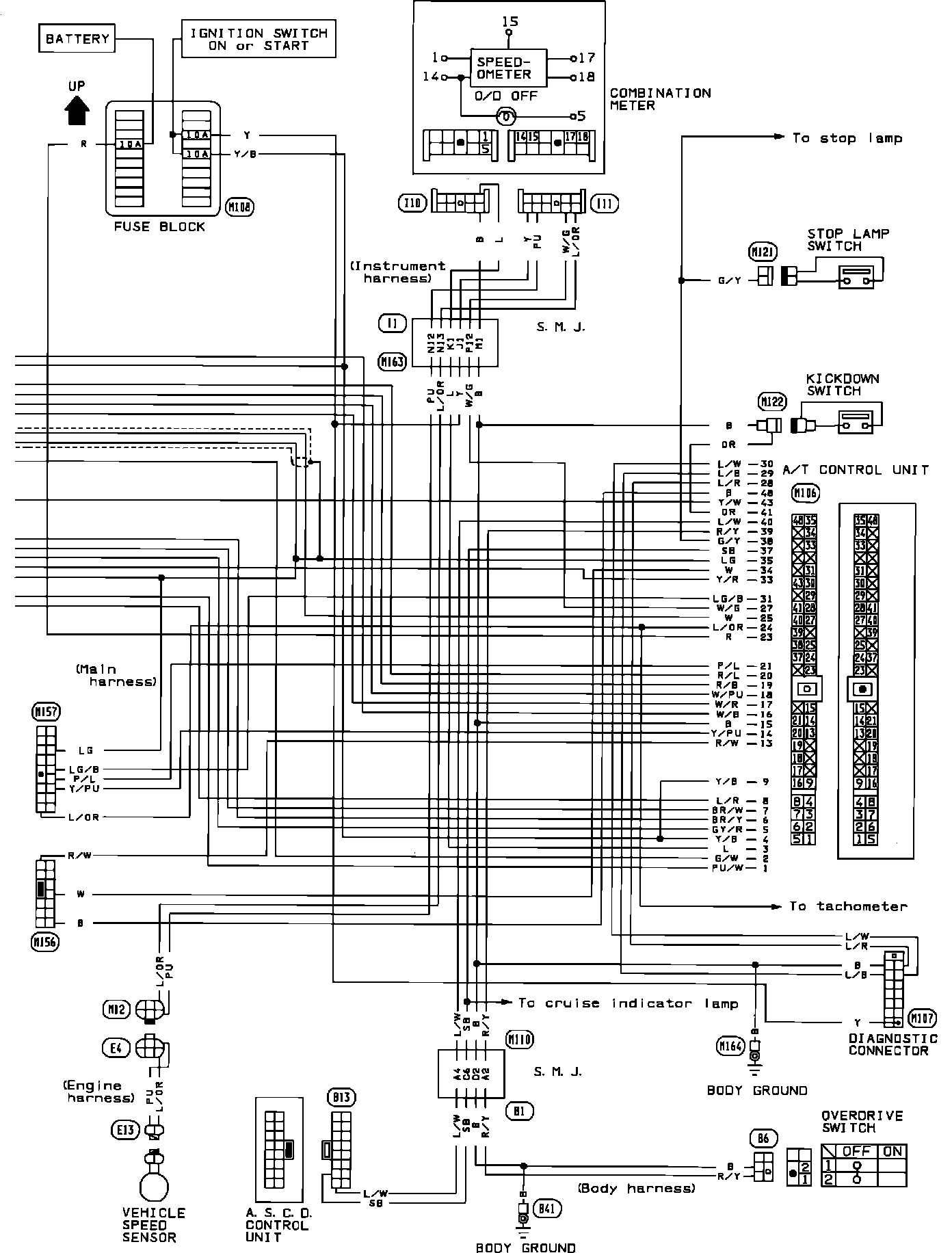

Automatic Transmission Controls:
