A/T - Slipping and Improper Shifting

Classification:
AT92-006



Section:
Auto. Trans.



Reference:
TECHNICAL BULLETIN ITB92-040



Models
1990-91 M30

Date:
July 31, 1992



A/T SLIPPING, IMPROPER SHIFTING

APPLIED MODELS:
1990-91 M30

APPLIED TRANSMISSION #/DATE:
1300001 5/91

SERVICE INFORMATION:

M30 vehicles having transmissions built before the applied transmission #/date, may exhibit transmission slipping or improper shifting. This condition may be caused by insufficient torquing of the servo retainer bolts.

SERVICE PROCEDURE:

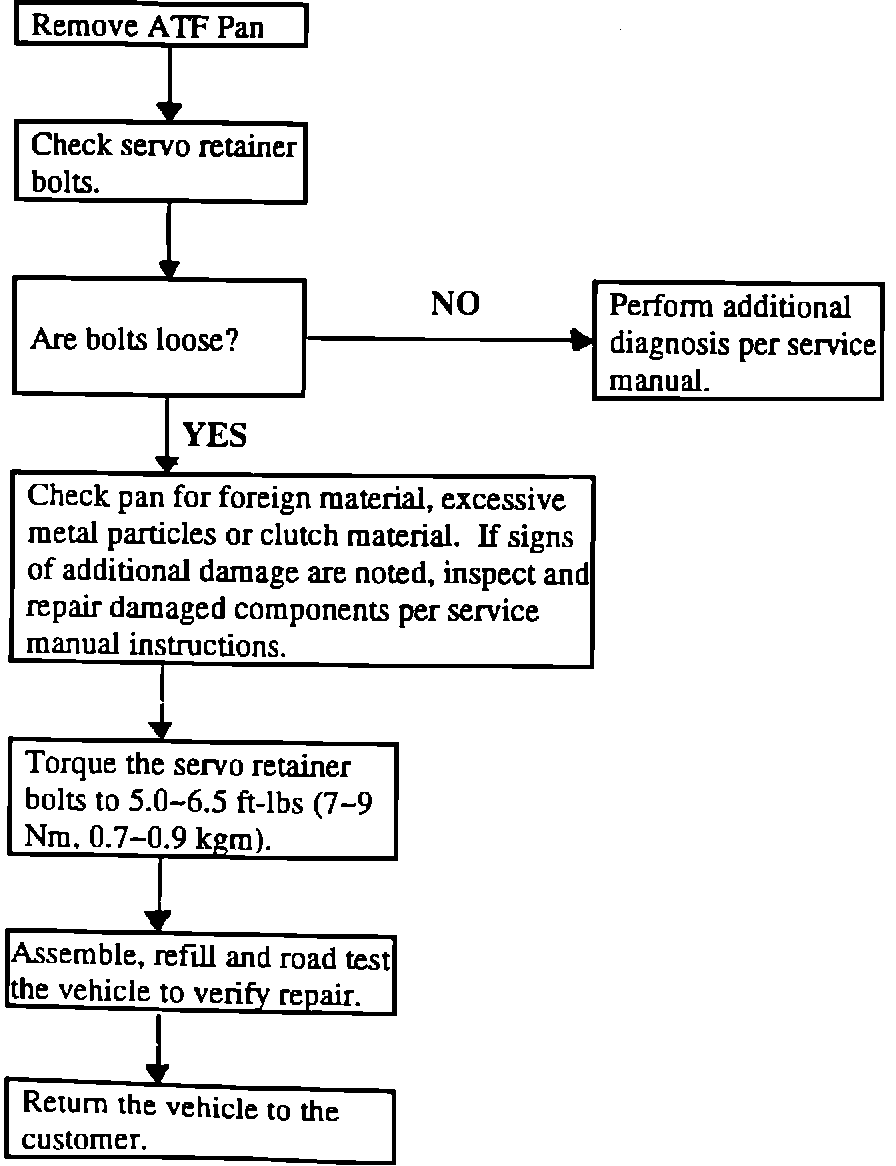

If a customer complains of slipping in 2nd or 4th gear or no shifting to 2nd gear, follow the procedure listed on the flowchart.

WARRANTY INFORMATION:
Operation 0p Code PNC CS CT FRT

Straight Time JA9999 31615 2A 32 1.0 hr.


NOTE:
For specific repairs indicated by foreign material found in the pan, please reference Section "JA" for the applicable PNC/Op Code combination(s).
