Electrical Tests

TROUBLE DIAGNOSIS - G50 SERIES

A/C Component Layout and Harness Layout


PASSENGER COMPARTMENT




G5O models are equipped with a thermo control amp. to prevent evaporator icing. In addition, A/C signal relay is adopted to send A/C ON.OFF signal to the ECM (ECCS control module).

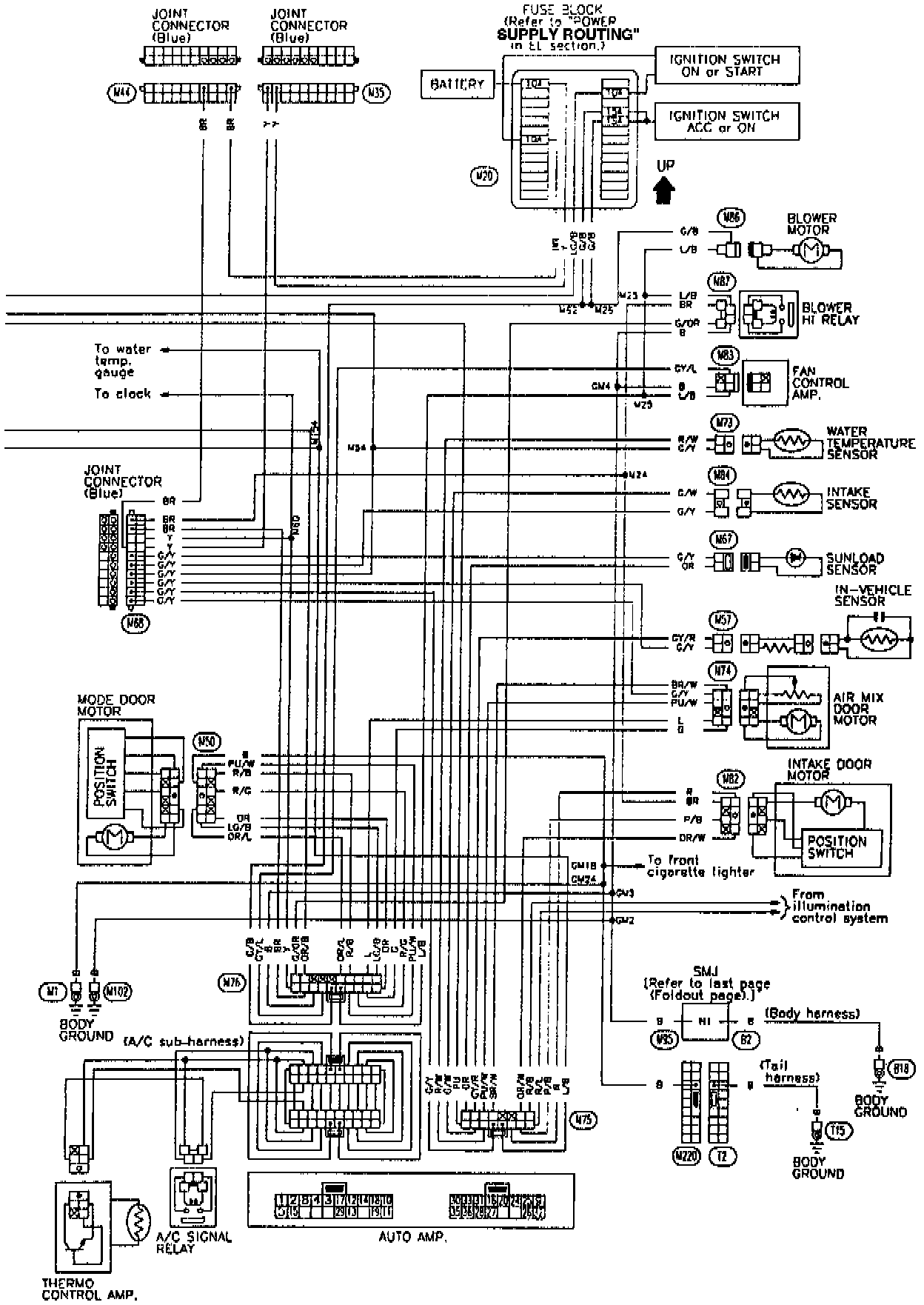

Wiring Diagram - G50 Series




Circuit Diagram for Quick Pinpoint Check

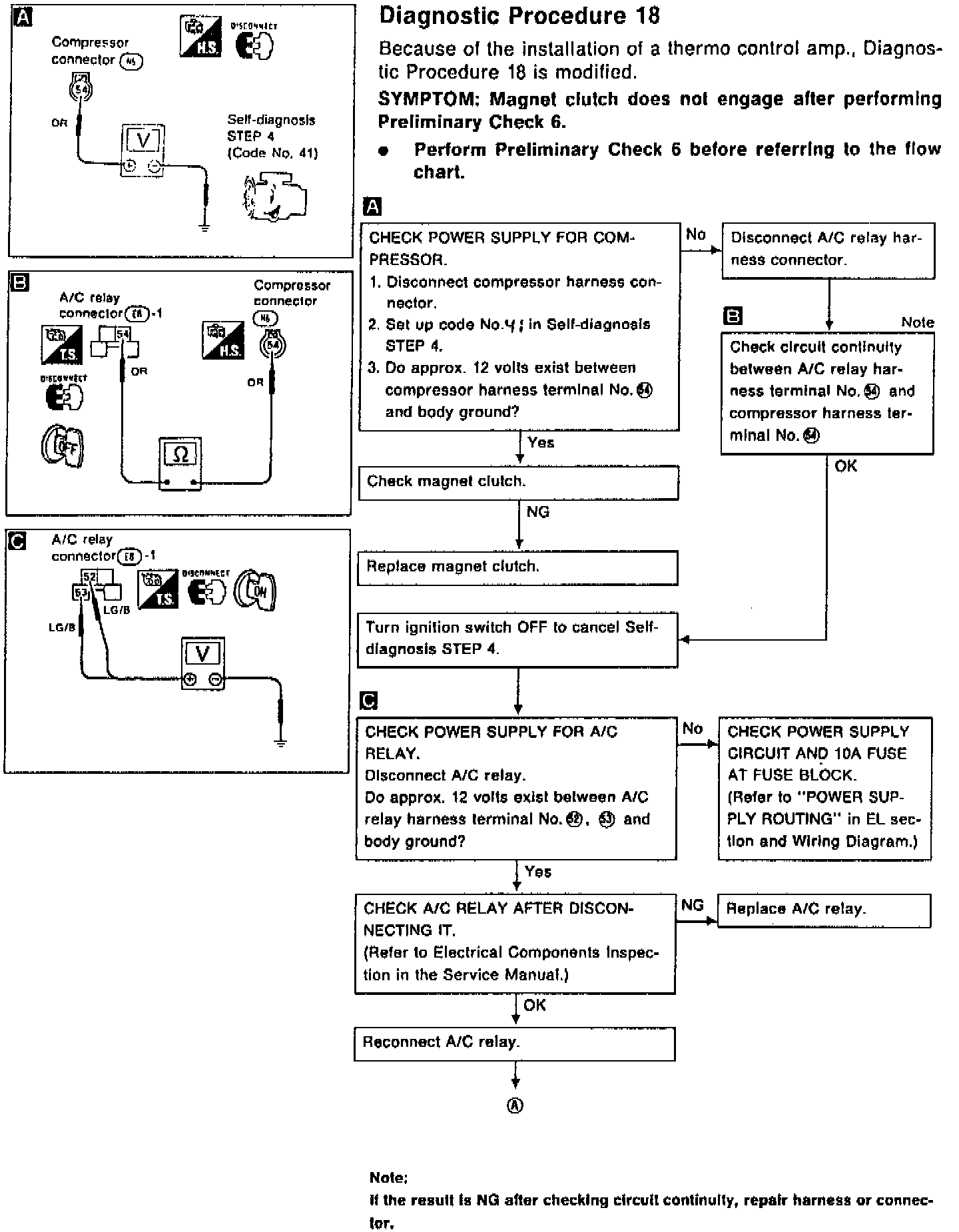

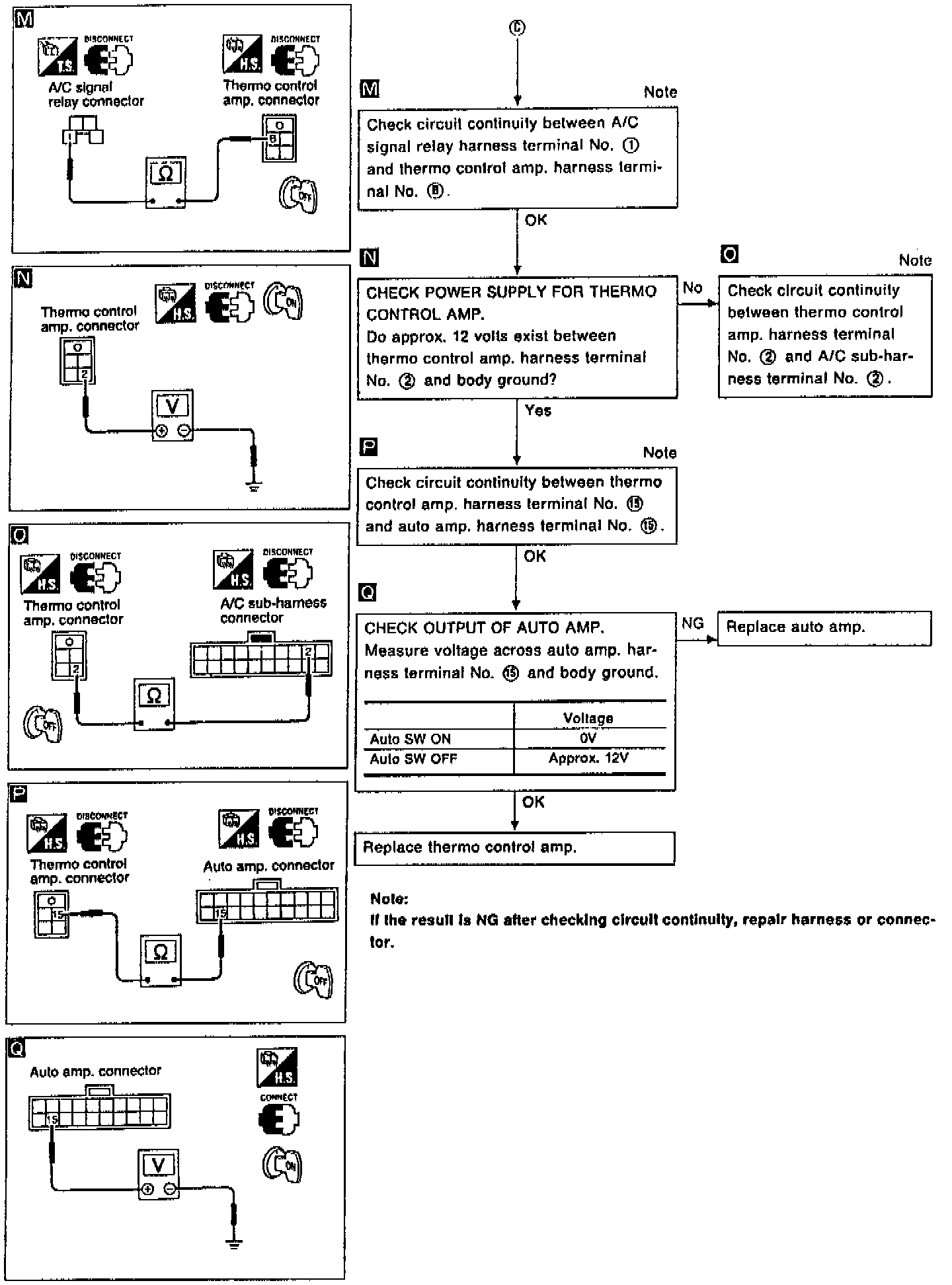

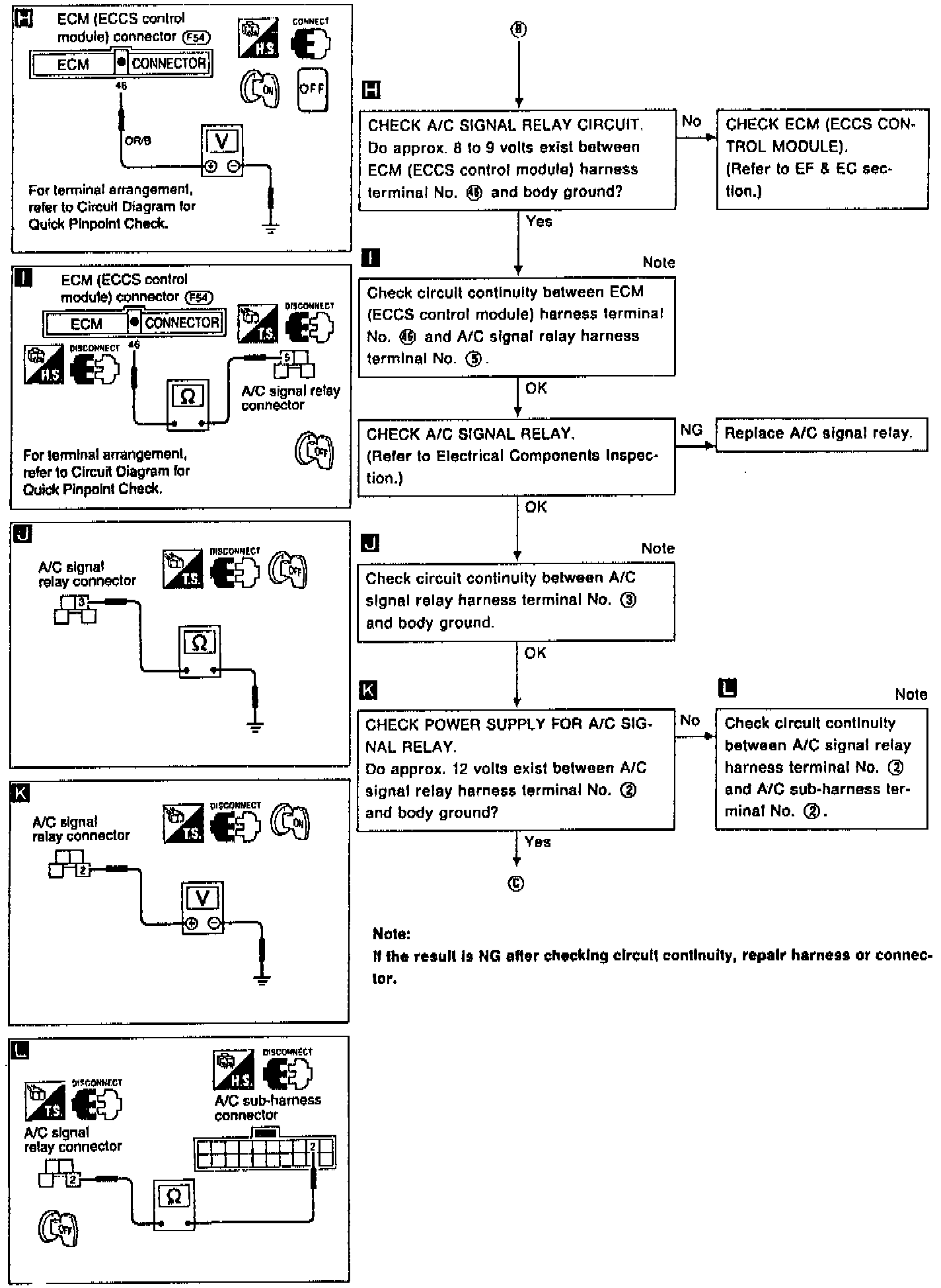

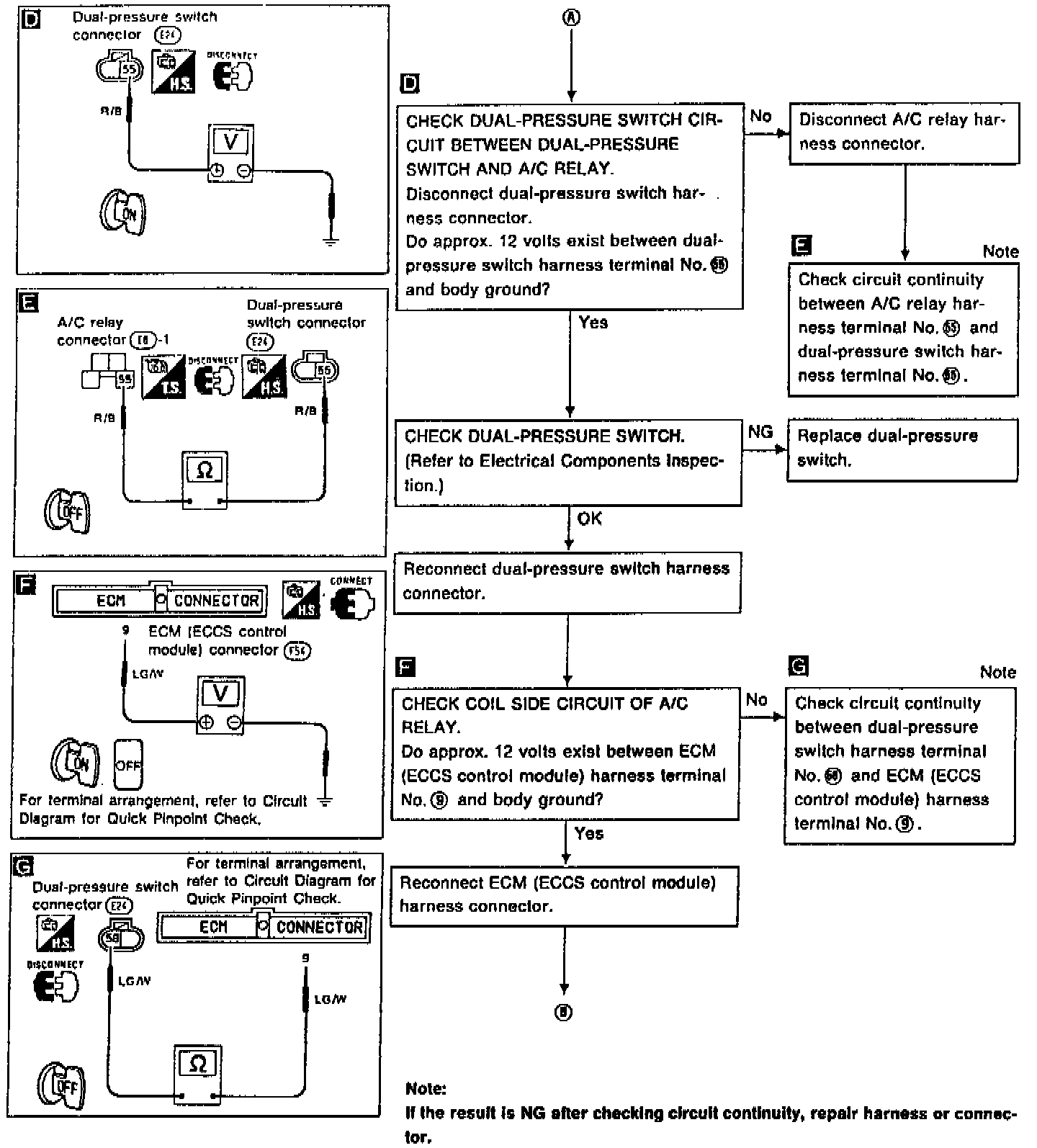

Diagnostic Procedure 18
(Magnetic clutch does not engage after performing Preliminary Check 6.)

ELECTRICAL COMPONENTS INSPECTION

For the G5O model, the dual-pressure switch operation point is changed. The thermo control amp. and the A/C signal relay are additionally adopted.

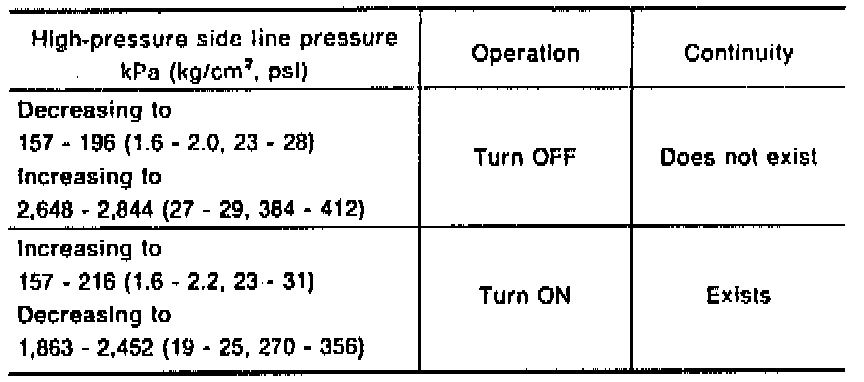

DUAL-PRESSURE SWITCH

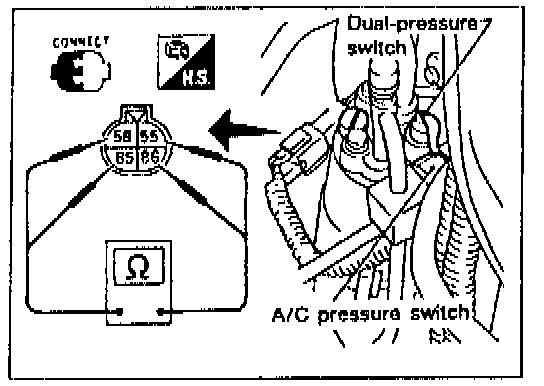

Check continuity between terminals (55) and (58).

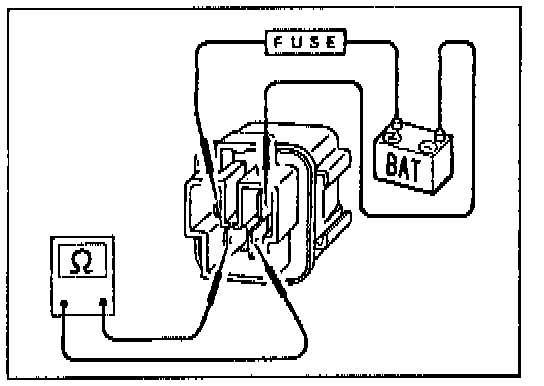

A/C SIGNAL RELAY




Check circuit continuity between terminals by supplying 12 volts to coil side terminal of relay.

THERMO CONTROL AMP.







1. Run engine, and operate A/C system.
2. Connect the voltmeter from harness side.

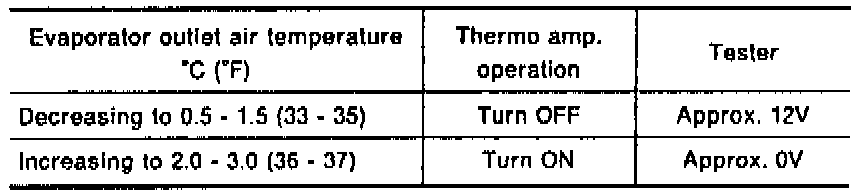

3. Check thermo control amp. operation shown in the table.
