General Precautions
PRECAUTIONS FOR WORKING WITH HFC-134A (R-134A)System Identification

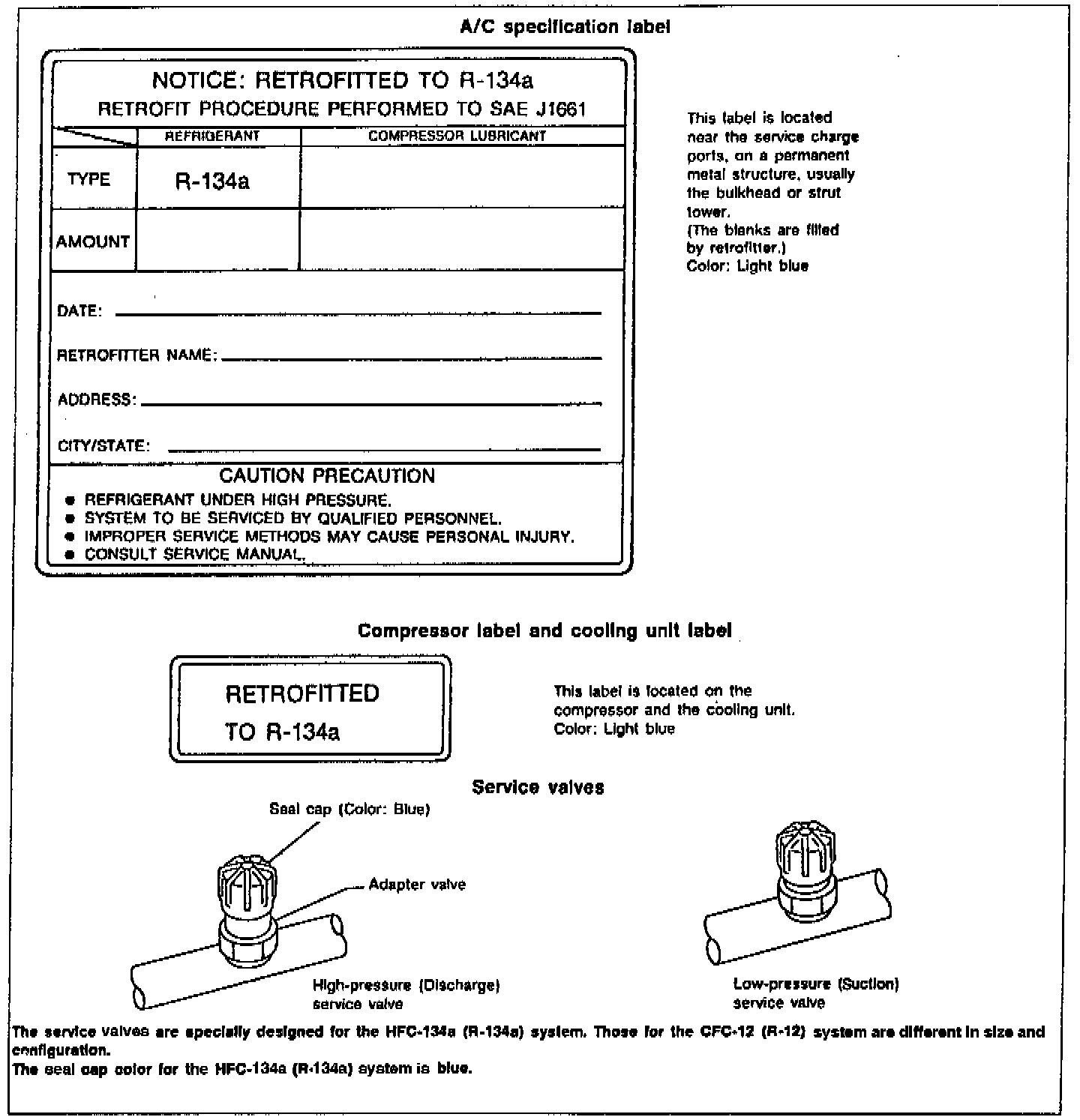

Vehicles Equipped with Retrofit A/C Systems
WARNING:
^ CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. These refrigerants must never be mixed1 even in the smallest amounts. if the refrigerants are mixed, compressor failure Is likely to occur.
^ Use only specified lubricant for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. if lubricant other than that specified is used, compressor failure is likely to occur.
^ The specified HFC-134a (R-134a) lubricant rapidly absorbs moisture from the atmosphere. The following handling precautions must be observed:
a: When removing refrigerant components from a vehicle, immediately cap (seal) the component to minimize the entry of moisture from the atmosphere.
b: When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just before connecting the components. Connect all refrigerant loop components as quickly as possible to minimize the entry of moisture Into system.
c: Only use the specified lubricant from a sealed container. immediately reseal containers of lubricant. Without proper sealing, lubricant will become moisture saturated and should not be used.
d: Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and throat. Remove HFC-134a (R-134a) from A/C system, using certified service equipment meeting requirements of SAE J221O (R-134a recycling equipment), or J22O9 (R-134a recovery equipment). If accidental system discharge occurs, ventilate work area before resuming service. Additional health and safety Information may be obtained from refrigerant and lubricant manufacturers.
e: Do not allow lubricant (Nissan A/C System Oil Type S) to come in contact with styrofoam parts. Damage may result.
GENERAL REFRIGERANT PRECAUTIONS
WARNING:
^ Do not release refrigerant into the air. Use approved recovery/recycling equipment to capture the refrigerant every time an air conditioning system is discharged.
^ Always wear eye and hand protection (goggles and gloves) when working with any refrigerant or air conditioning system.
^ Do not store or heat refrigerant containers above 52°C (125°F).
^ Do not heat a refrigerant container with an open flame; if container warming is required, place the bottom of the container in a warm pail of water.
^ Do not intentionally drop, puncture, or incinerate refrigerant containers.
^ Keep refrigerant away from open flames: poisonous gas will be produced if refrigerant burns.
^ Refrigerant will displace oxygen, therefore be certain to work in well ventilated areas to prevent suffocation.
^ Do not introduce compressed air to any refrigerant container or refrigerant component.
PRECAUTIONS FOR REFRIGERANT SERVICE
WARNING:
Make sure all refrigerant is discharged into the recycling equipment and the pressure In the system is less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.
CAUTION:
When replacing or cleaning refrigerant cycle components, observe the allowing.
^ When the compressor is removed, store it in the same position as it is when mounted on the car. Failure to do so will cause lubricant to enter the low pressure chamber.
^ When connecting tubes, always use a torque wrench and a back-up wrench.
^ After disconnecting tubes, immediately plug all openings to prevent entry of dirt and moisture.
^ When installing an air conditioner in the vehicle, connect the pipes as the final stage of the operation. Do not remove the seal caps of pipes and other components until just before required for connection.
^ Allow components stored in cool areas to warm to working area temperature before removing seal caps. This prevents condensation from forming inside A/C components.
^ Thoroughly remove moisture from the refrigeration system before charging the refrigerant.
^ Always replace used O-rings.
^ When connecting tube, apply lubricant to portions shown in illustration. Be careful not to apply lubricant to threaded portion.
Lubricant name:
Nissan A/C System Oil Type S (For swash plate type compressor and V-6 compressor)
Nissan A/C System Oil Type R (For vane rotary type compressor) Part number: KLH00-PAGS1 (For swash plate type compressor and V-6 compressor)
KLH00-PAGR1 (For vane rotary type compressor)
^ O-ring must be closely attached to inflated portion of tube.
^ After inserting tube into union until O-ring is no longer visible, tighten nut to specified torque.
^ After connecting line, conduct leak test and make sure that there is no leakage from connections. When the gas leaking point Is found, disconnect that line and replace the O-ring. Then tighten connections of seal seat to the specified torque.
