Power Antenna - Replacement Sleeve

Classification:
EL96-006

Reference:
ITB96-043

Date:
October 2, 1996

POWER ANTENNA SLEEVE

APPLIED VEHICLE:
All

SERVICE INFORMATION

An antenna sleeve (antenna guide) is available as a separate service part to replace bent or corroded antenna sleeves. A complete listing of available antenna sleeve part numbers is provided in this bulletin.

SERVICE PROCEDURE

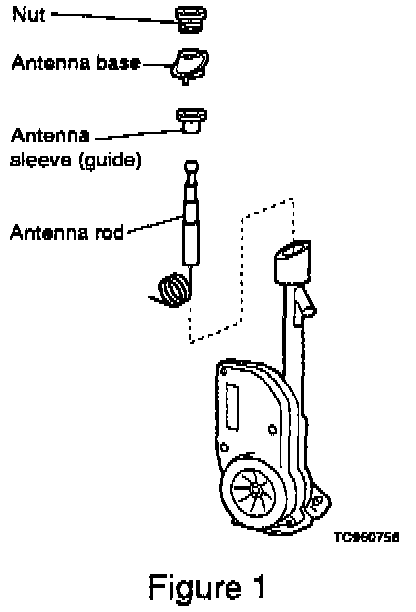

1. Follow the antenna rod removal procedure outlined in "Audio and Power Antenna" located in the EL section of the appropriate service manual.





2. The antenna sleeve should release from the antenna assembly when the rod is removed. If the antenna sleeve is bound, the rod may not release after the removal of the nut and base. In this case, use pliers to carefully remove the antenna sleeve (with the radio "OFF"). After the antenna sleeve is removed, continue with the procedure to remove and replace the antenna rod.

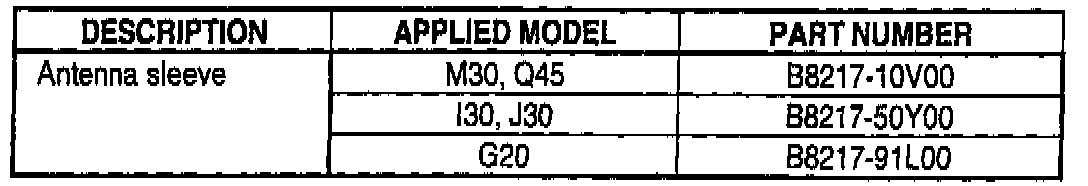

PARTS INFORMATION

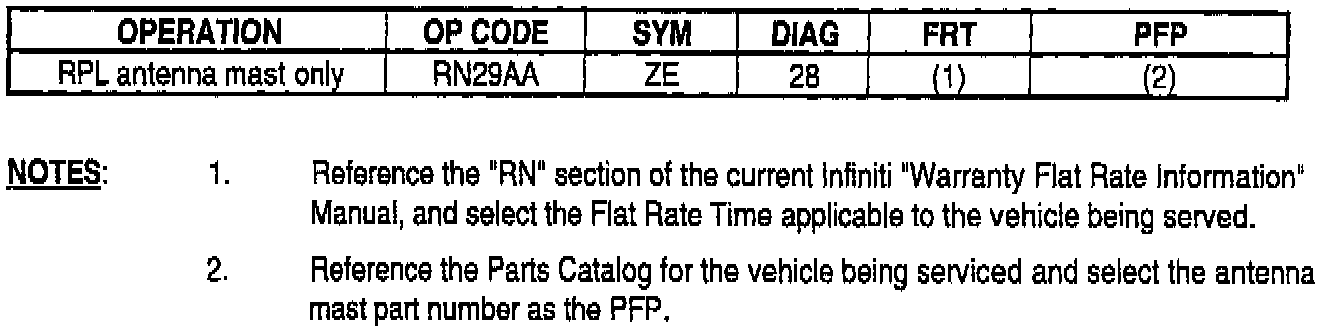

CLAIMS INFORMATION





Submit a Primary Failed Part (PFP) claim using the coding as shown.
