Interior Lamp - Revised Wiring Diagram

9215infiniti01

Classification: Section:
EL92-001 Electrical

Reference:
TECHNICAL BULLETIN ITB92-001


Models:
1991-92 M30 Convertible

Date:
January 9, 1992


M30 CONVERTIBLE - REVISED WIRING DIAGRAM FOR INTERIOR LAMP


APPLIED MODELS: 1991-92 M30 Convertible





SERVICE INFORMATION:

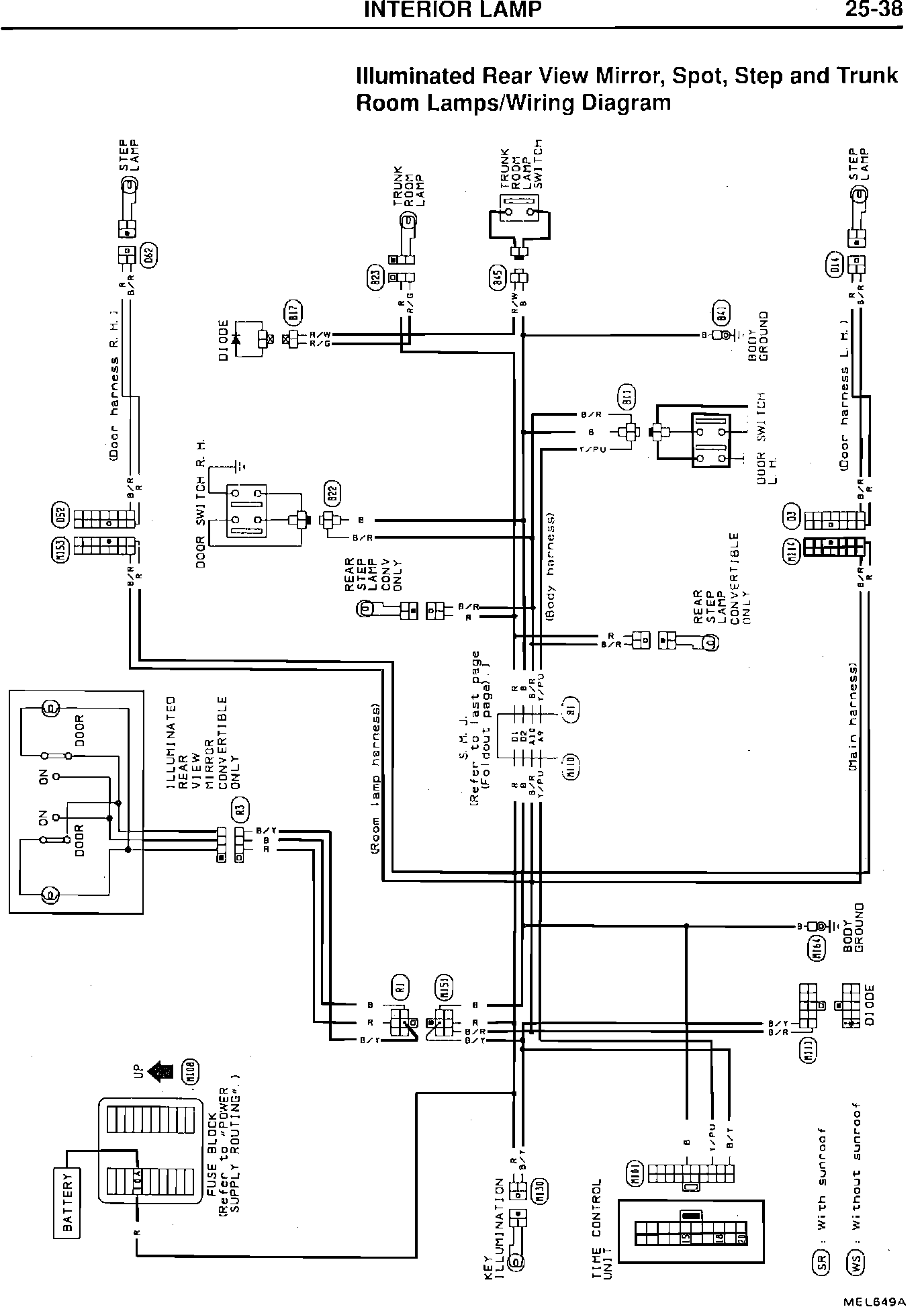

Attached to this Bulletin is a revised wiring diagram for the Interior Lamp and related circuits. Please paste this revised diagram on Page 25-38 in the July 1991 Edition of the M30 Convertible Supplementary Service Manual.
