Essential Tools - New Release
Classification: T&E95-03Reference: ITB95-009
Date: February 22, 1995
ESSENTIAL TOOL RELEASE
SERVICE INFORMATION
During the week of February 6, 1995, all Infiniti dealers were sent the following special tools as part of the Essential Service Tool Program.
SERVICE PROCEDURE
1. J36741-A, Oxygen Sensor Socket. This socket accommodates the new, longer Bosch type 22 mm front O2 sensor used on the 1996 I30.

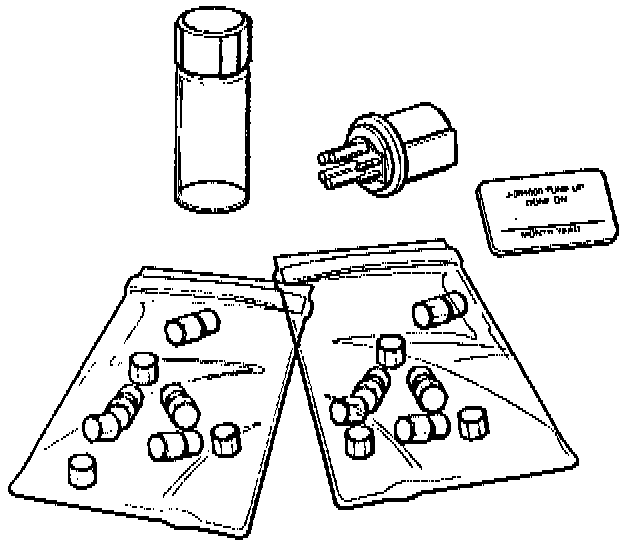

2. J39400-A/C Leak Detector Tune-up Kit. This kit provides all the items necessary to perform preventive maintenance on the J39400 A/C Leak Detector.
J39400-TUNEUP Leak Detector Tune Up Kit

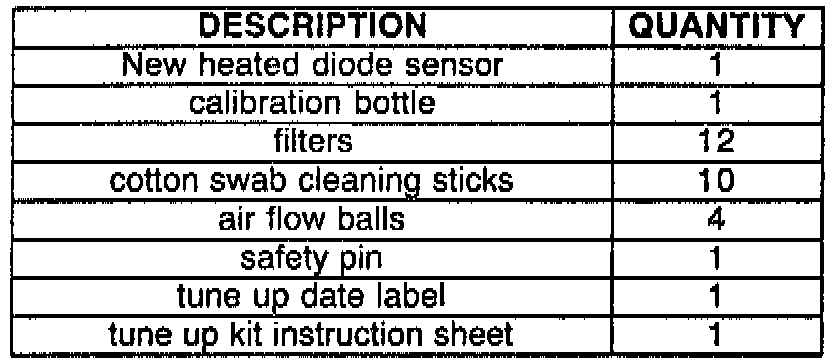

Included in the kit are:

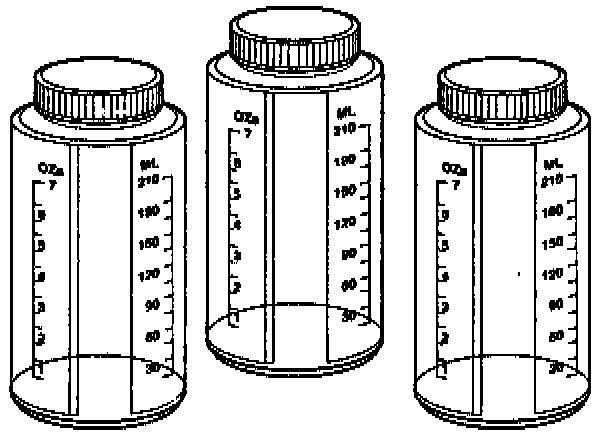

3. J39500-71N, ACR4 Lubricant Injection Bottle Conversion Kit.
J 39500-71
ACR4 Lubricant Injection Conversion Kit
This kit provides three, 12 ounce plastic bottles and related fittings to replace the existing 7 ounce bottles. These bottles will accommodate the proper oil charge when retrofitting from R-12 to R-134a refrigerant systems.

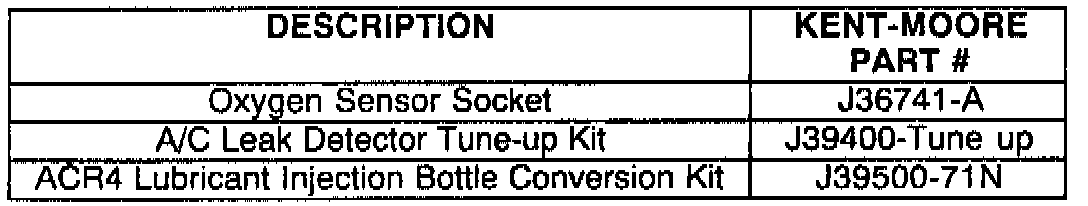

PARTS INFORMATION
