Engine Stalls
>>
Engine Stalls When Hot
Engine Stalls When Hot

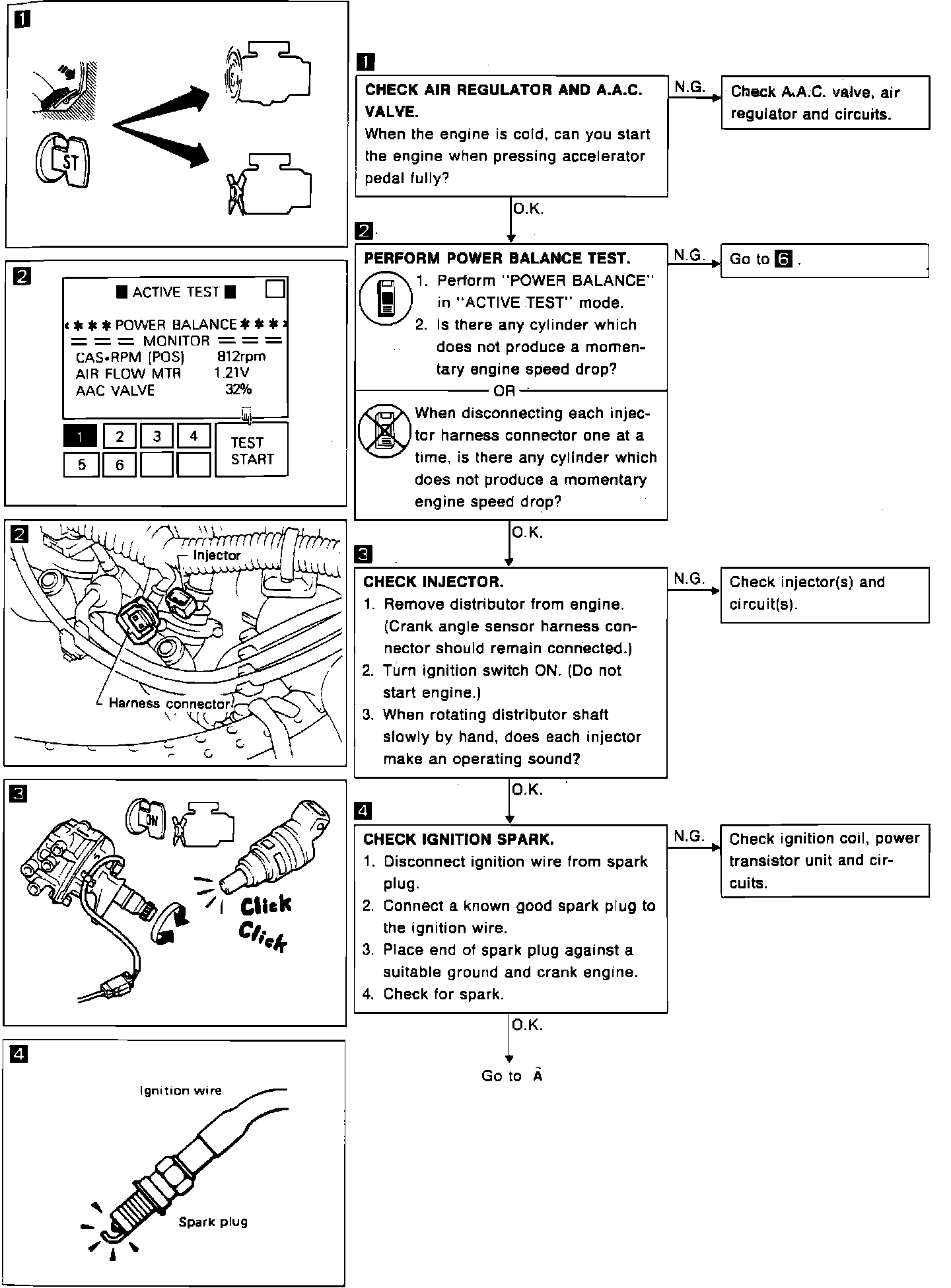

Fig. 125 Symptom, Stalls W/engine Cold (Part 1 Of 2):

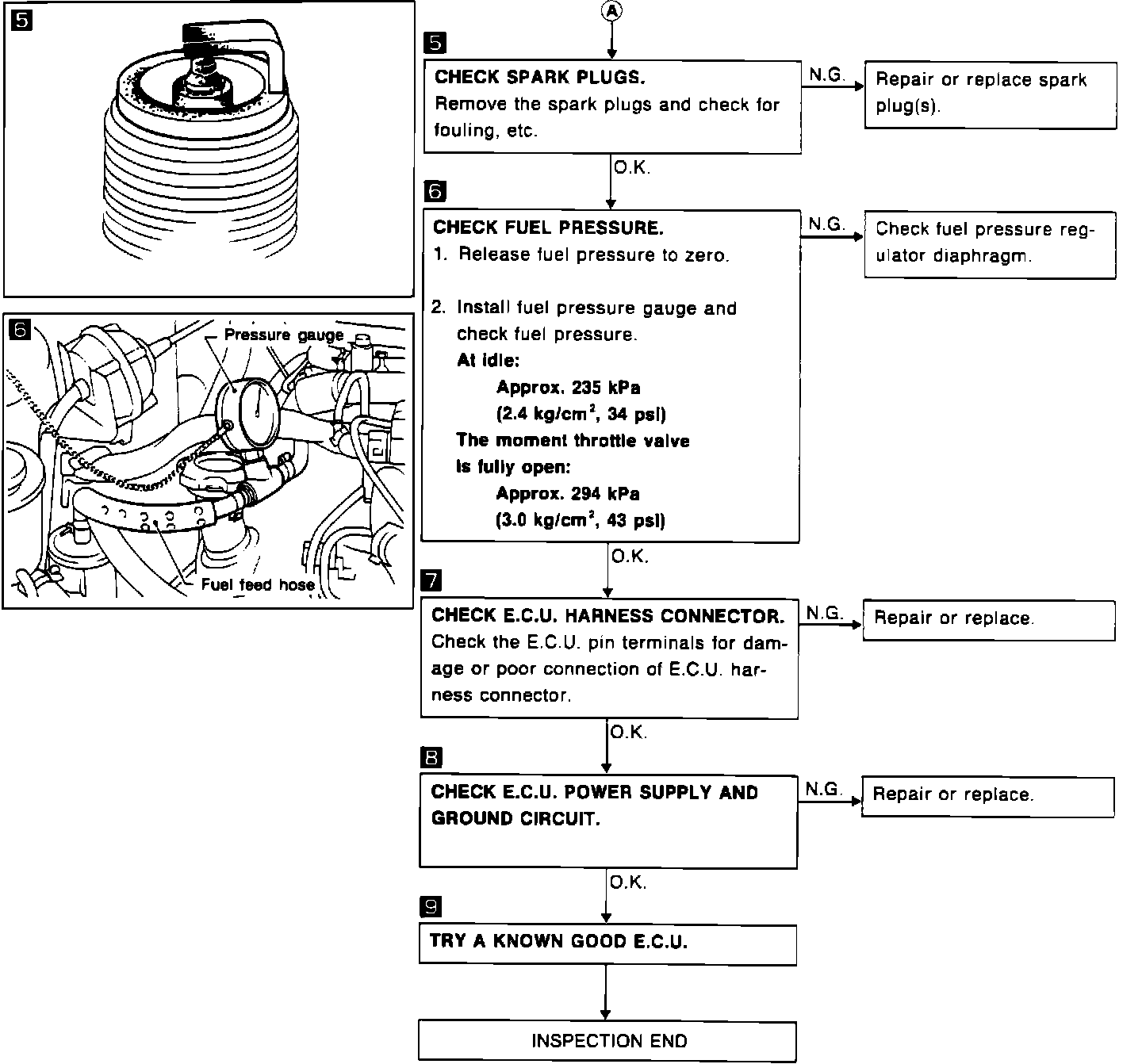

Fig. 125 Symptom, Stalls W/engine Cold (Part 2 Of 2):
