Radio - Identification

9217infiniti01

Classification:
EL92-003

Section:
Electrical

Reference:
TECHNICAL BULLETIN ITB92-016


Models:
All Models

Date:
February 21, 1992


RADIO IDENTIFICATION (INCLUDING 1992 MODELS)

INFINITI


APPLIED MODELS:
ALL INFINITI MODELS

SERVICE INFORMATION:


This Bulletin contains radio identification information on all Infiniti models through the 1992 model year. Use this Bulletin to identify the component manufacturer and model number when ordering an exchange unit under the Direct Dealer Manufacturer Radio Warranty Exchange Program.


Infiniti audio components are supplied by four audio manufacturers. When ordering an exchange unit, it is important to properly identify the manufacturer and model number of the incident unit. This will ensure that the exchange unit shipped from the radio manufacturer is the same brand and model as the incident unit.


ALL RADIO CORES SHOULD BE RETURNED TO THE MANUFACTURER IMMEDIATELY AFTER REMOVAL FROM THE CUSTOMER'S VEHICLE.

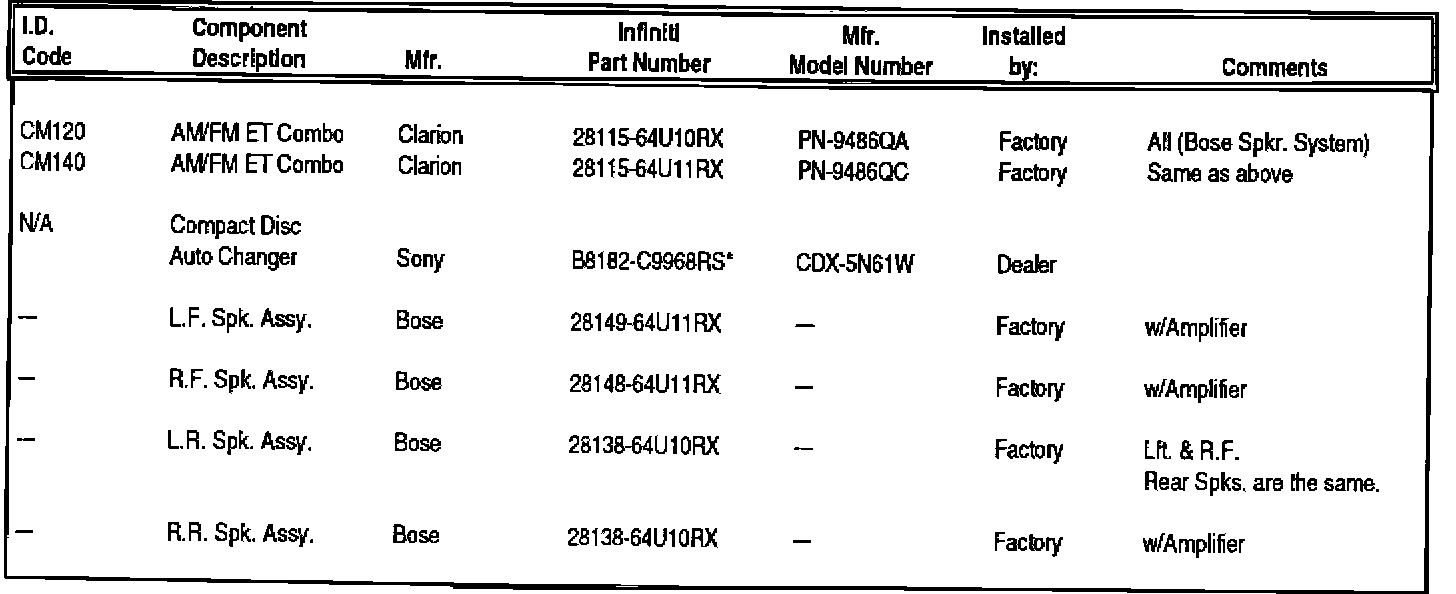

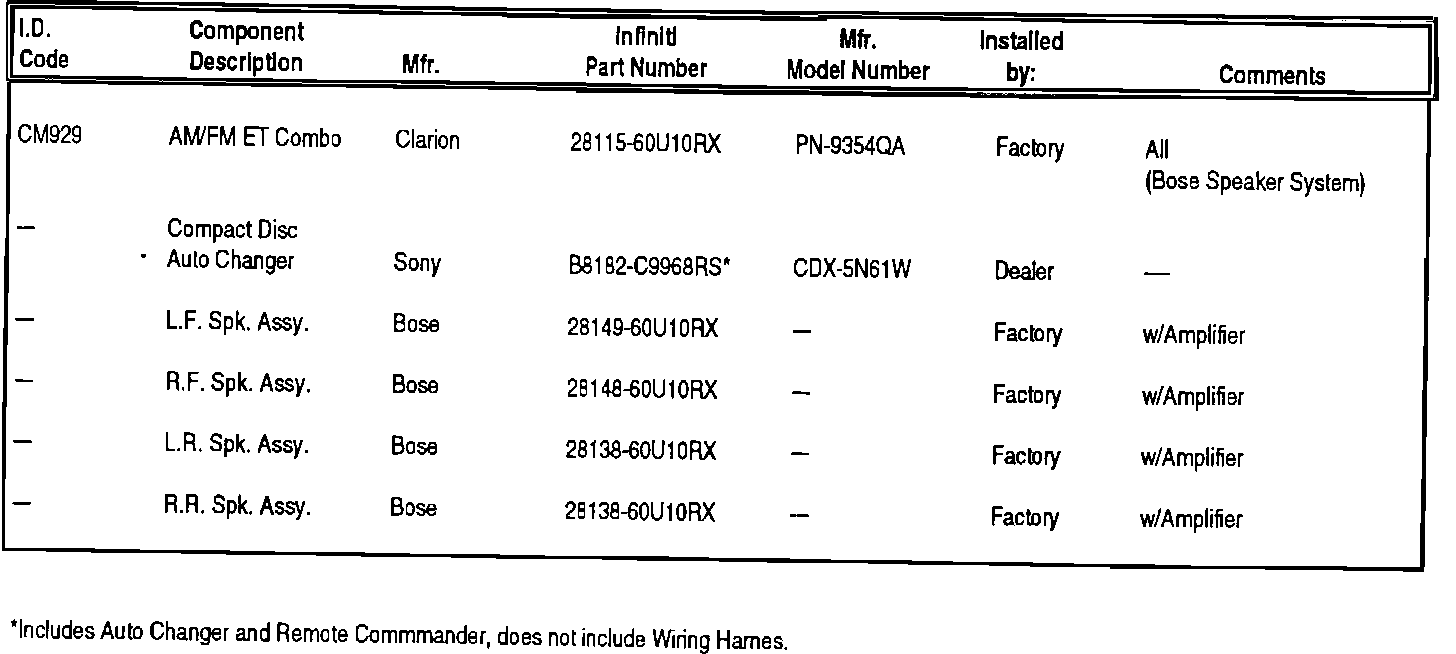

1991/92 INFINITI Q45 4 DR. SEDAN

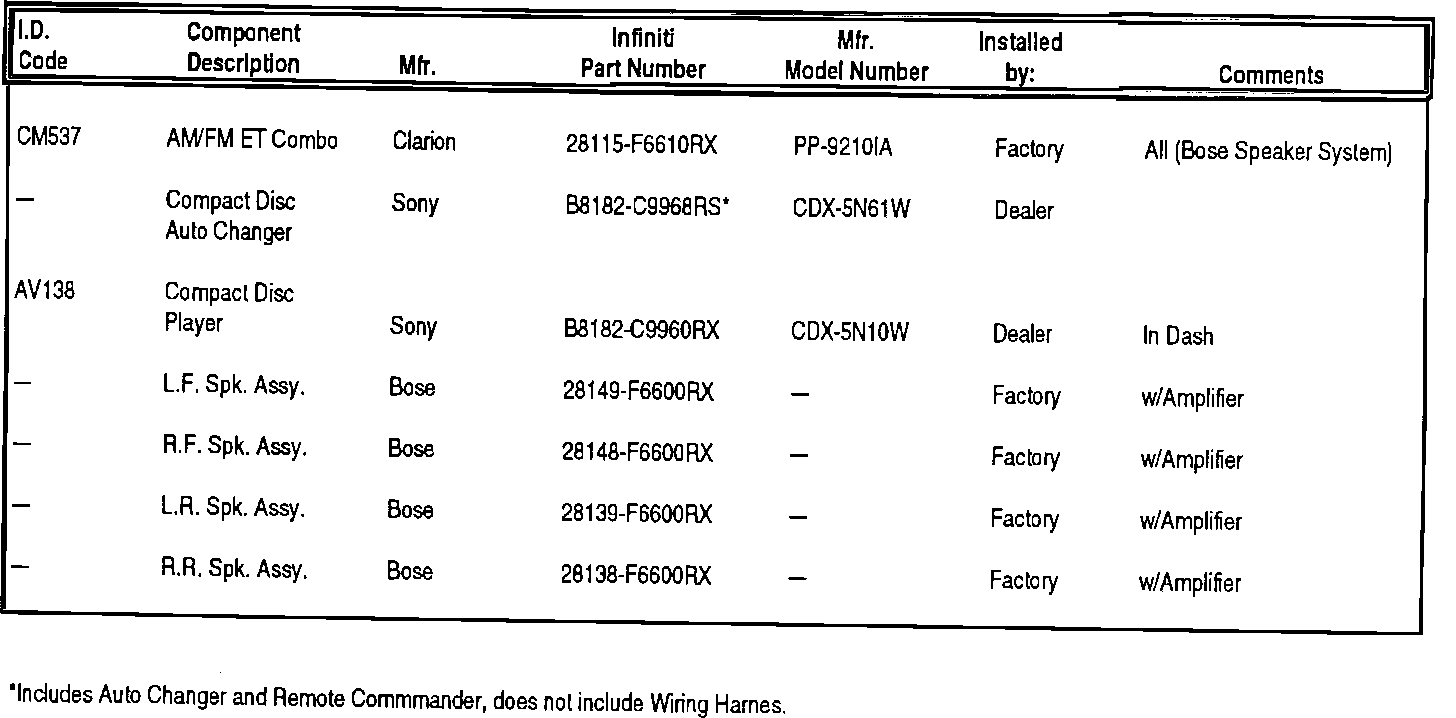

1990 INFINITI Q45 4 DR. SEDAN

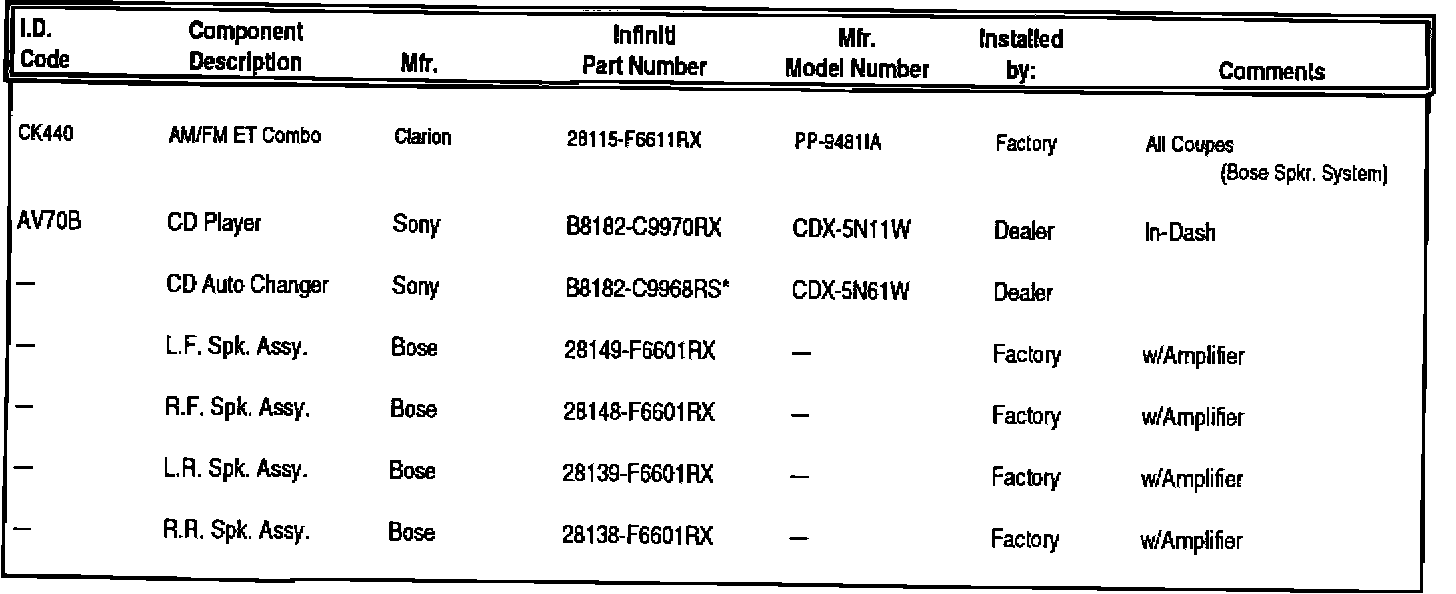

1991/92 INFINITI M30 COUPE





1990 INFINITI M30 COUPE

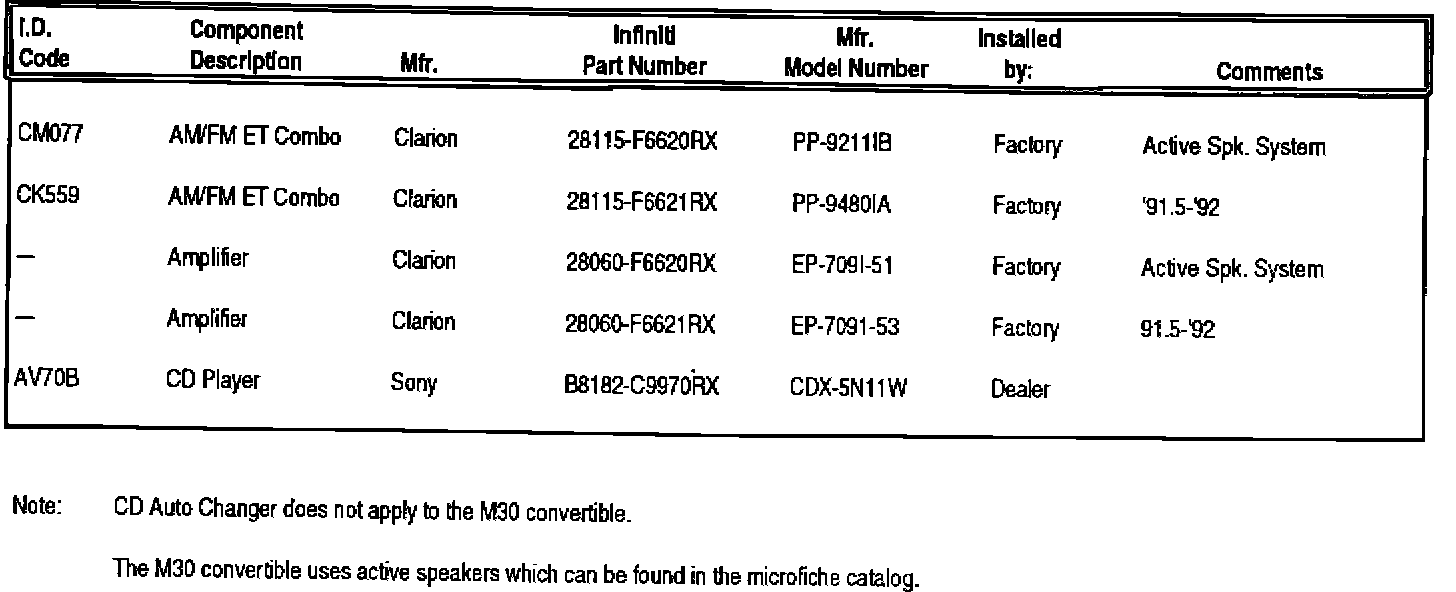

1991/92 INFINITI M30 CONVERTIBLE

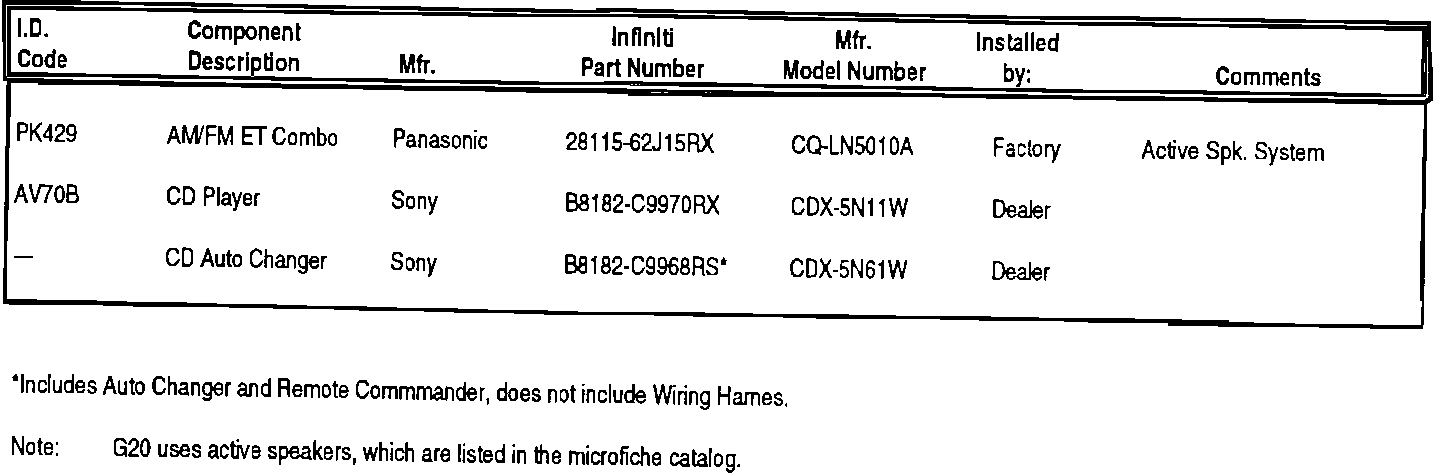

1991/92 INFINITI G20 4-DOOR SEDAN
