Abnormal Idle
>>
Uneven Idle
Uneven Idle

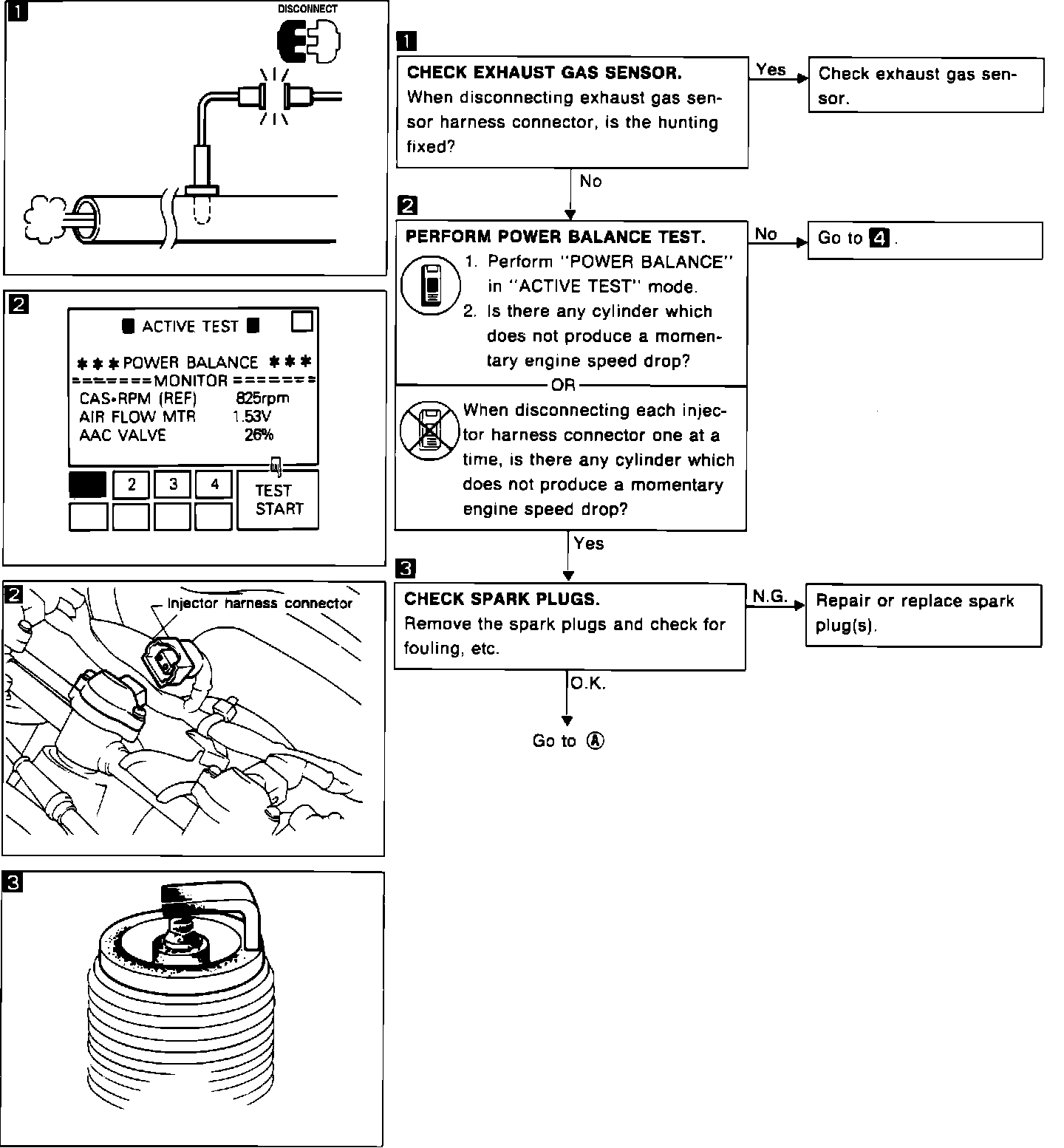

Fig. 66 Symptom, Uneven Idle (Part 1 Of 2):

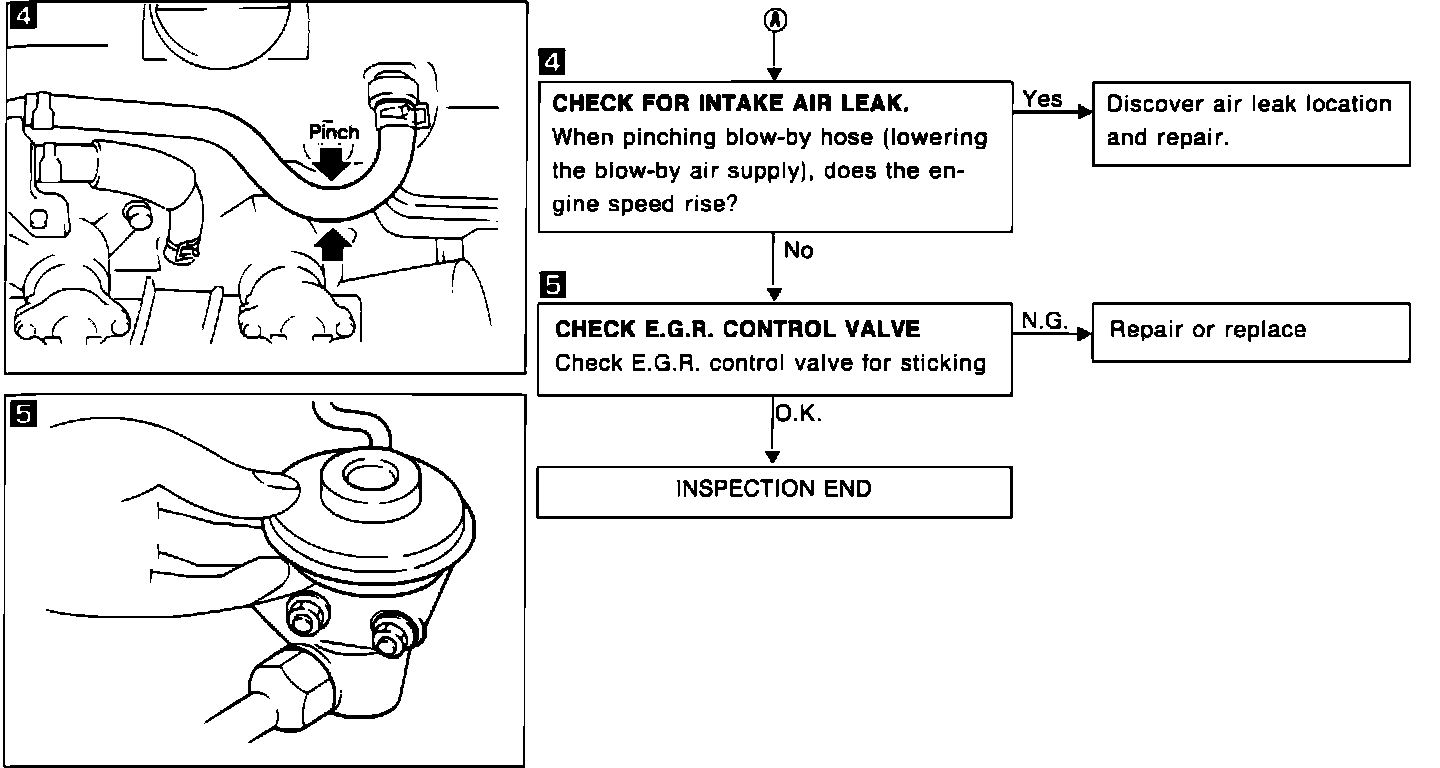

Fig. 66 Symptom, Uneven Idle (Part 2 Of 2):
