A/C System - O-Ring Replacement

91infiniti01

Classification: Section:
HA91-003 HEATER & A/C

Reference:
TECHNICAL BULLETIN ITB91-019


Models:

1990-1991 Q45, 1991 G20

Date:
APRIL 25,1991


REPLACEMENT O-RINGS FOR A/C SYSTEM


APPLIED MODELS: 1990-1991 Q45 (G50) 1991 G20 (P10)





SERVICE INFORMATION:

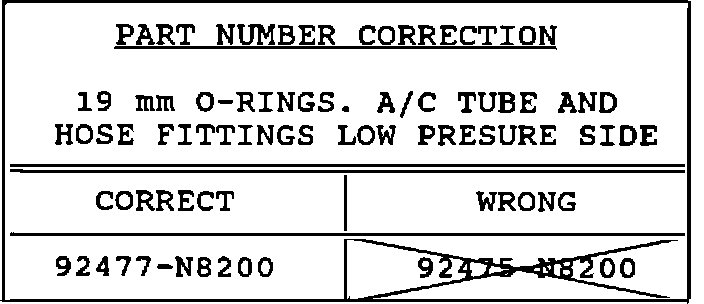

The correct part number for 19 mm O-rings for A/C tube and hose fittings on the low pressure side of the A/C systems of the Q45 and G20 models is 92477-N8200. When ordering replacement O-rings, use this part number.


Additionally, a Technical Bulletin (ITB91-003; HA91-001) was issued with 19 mm O-rings in a bag labeled with part number 92475-N8200. This part number is incorrect. When ordering additional 19 mm O-rings, order part number 92477-N8200.
