Starting System Wiring Circuit
>>
Automatic Transmission
Automatic Transmission

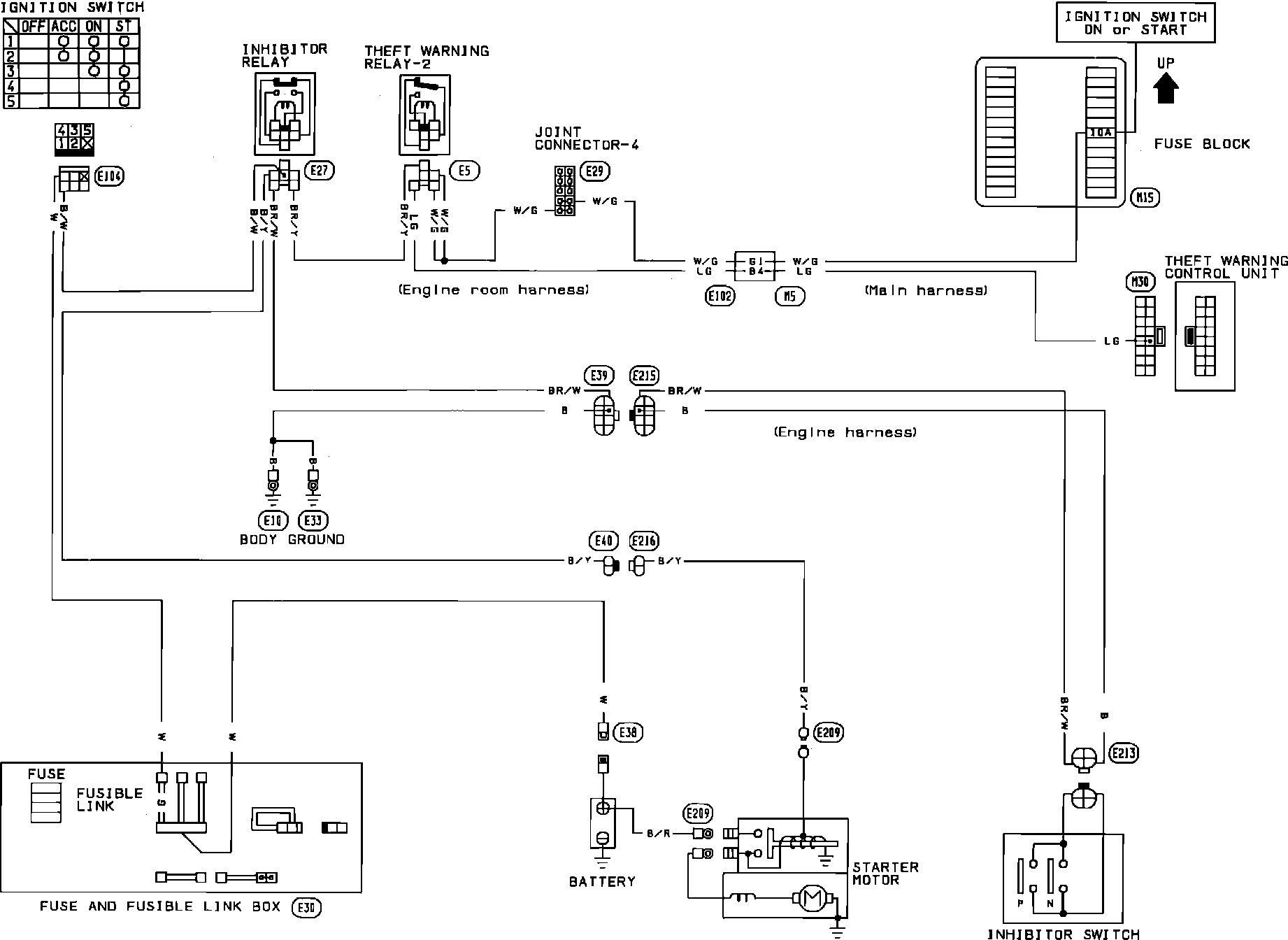

Fig. 7 Starter Wiring Diagram. W/Automatic Transmission:

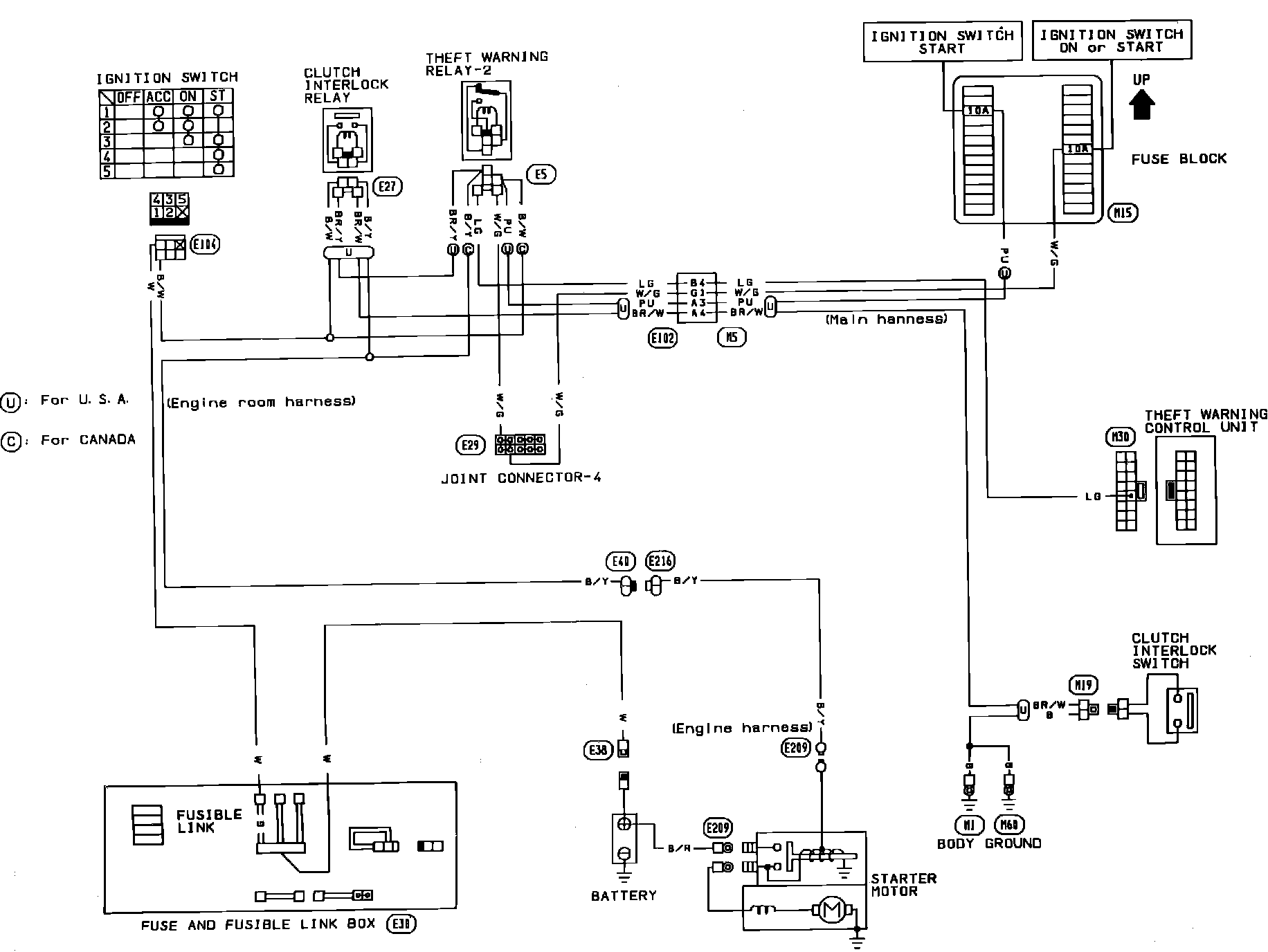

Fig. 8 Starter Wiring Diagram. W/Manual Transmission:
