9: Actuator Motor Relay (LED Flashes 9)
9: Actuator Motor Relay (LED Flashes 9)

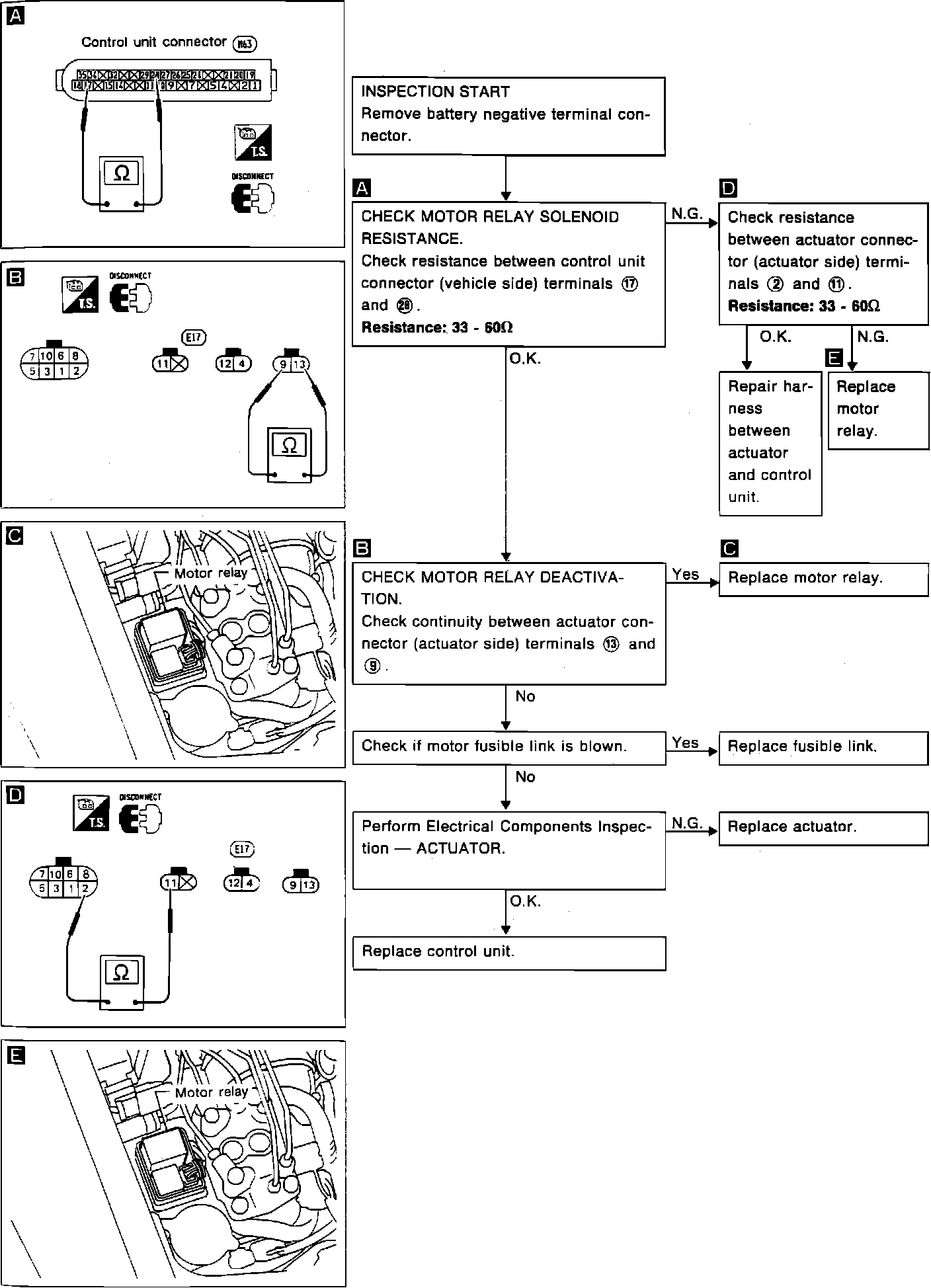

Fig. 24 Diagnostic Procedure 9, Actuator Relay Motor (LED Flashing Number 9).:
