Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti Truck
>>
2010
>>
QX56 RWD V8-5.6L (VK56DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>
Front Seat
>>
Exploded View
Exploded View
FRONT SEAT
Exploded View

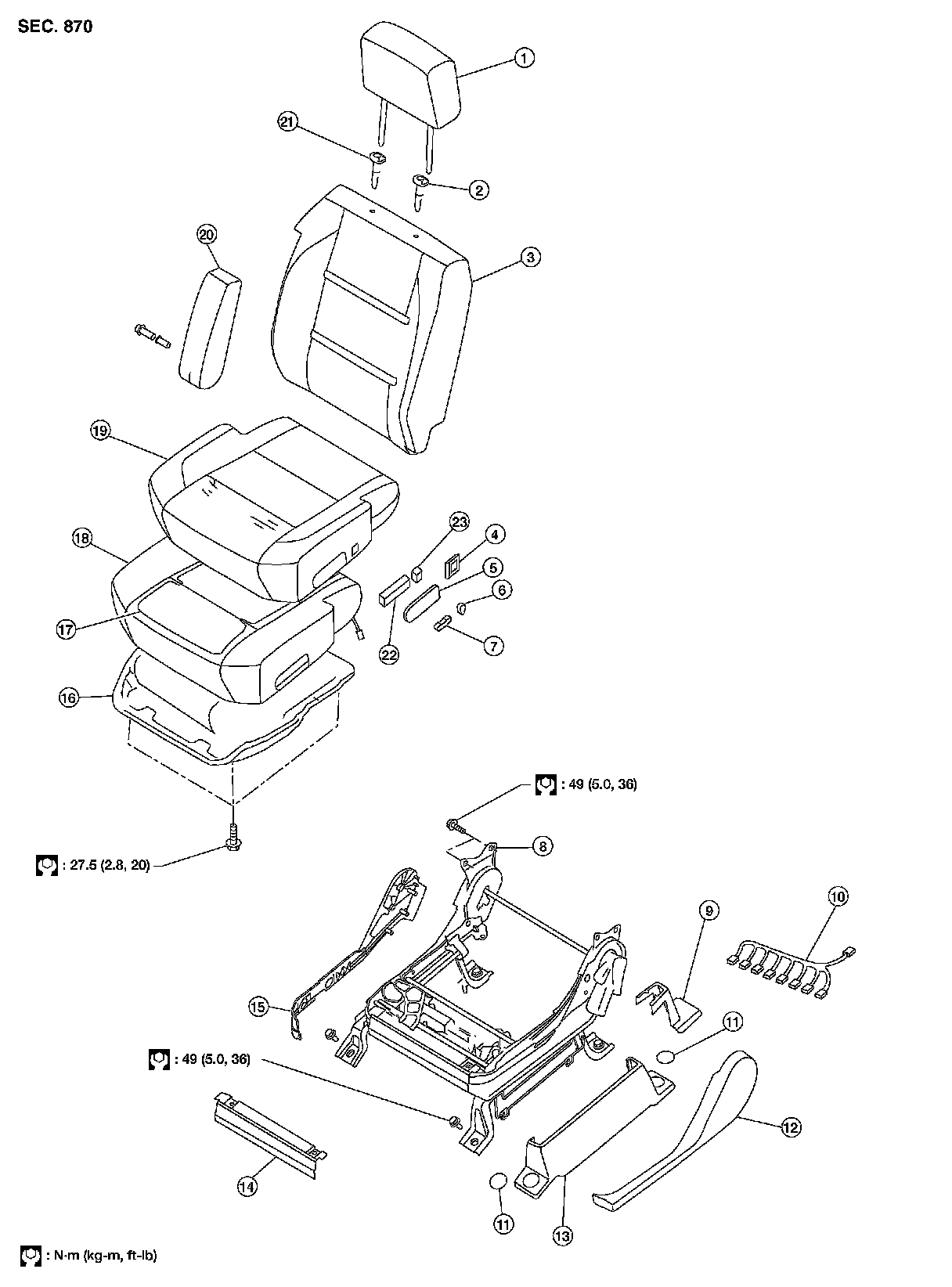

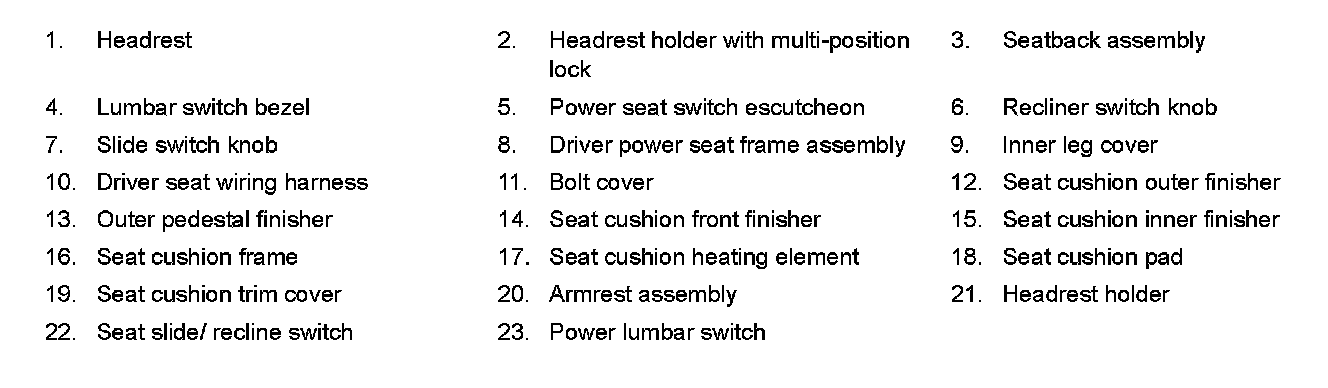

Driver Seat

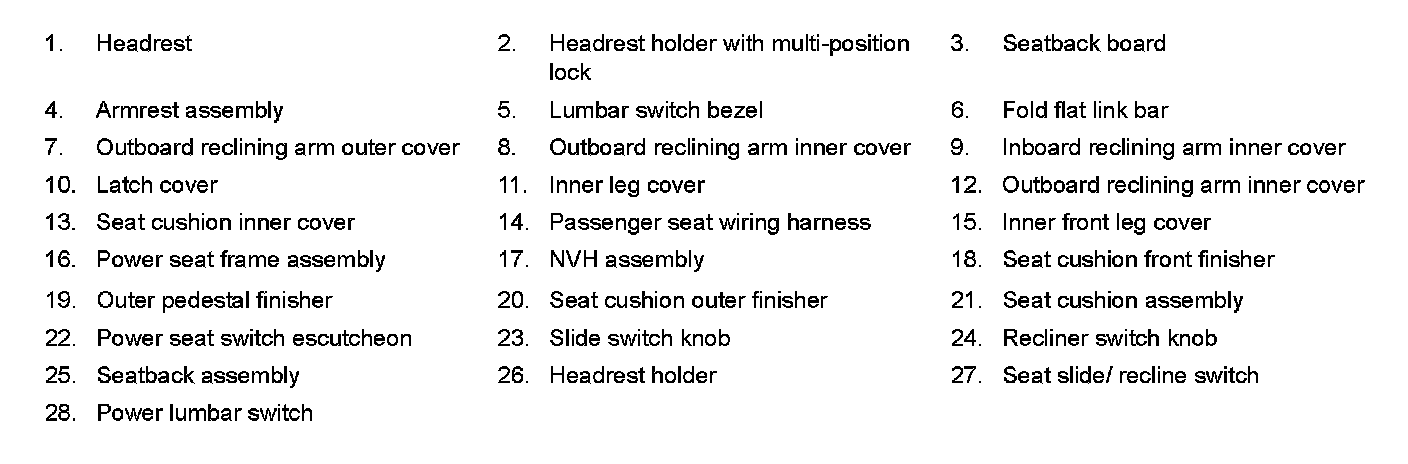

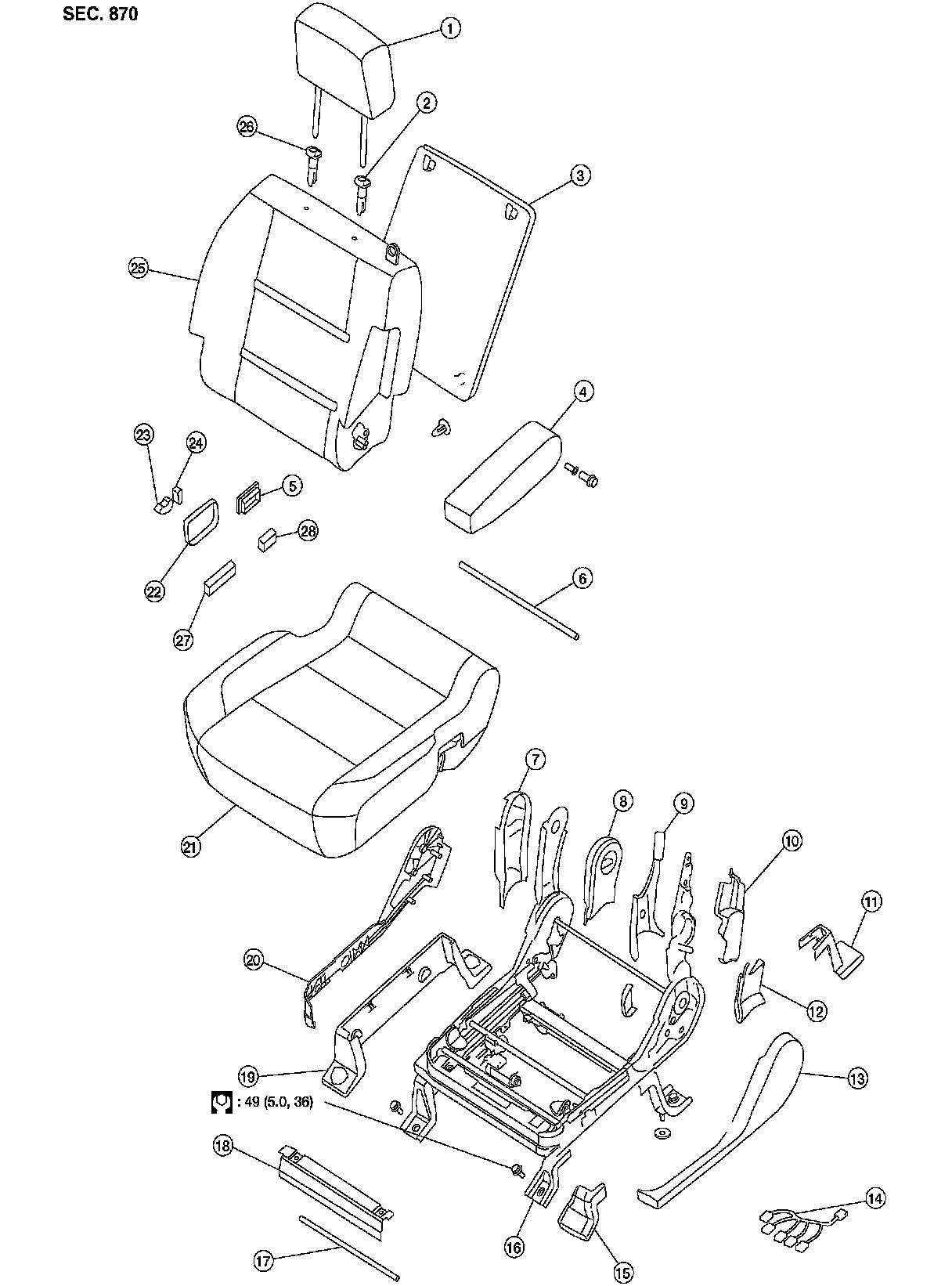

Passenger Seat
FRONT SEAT
Exploded View

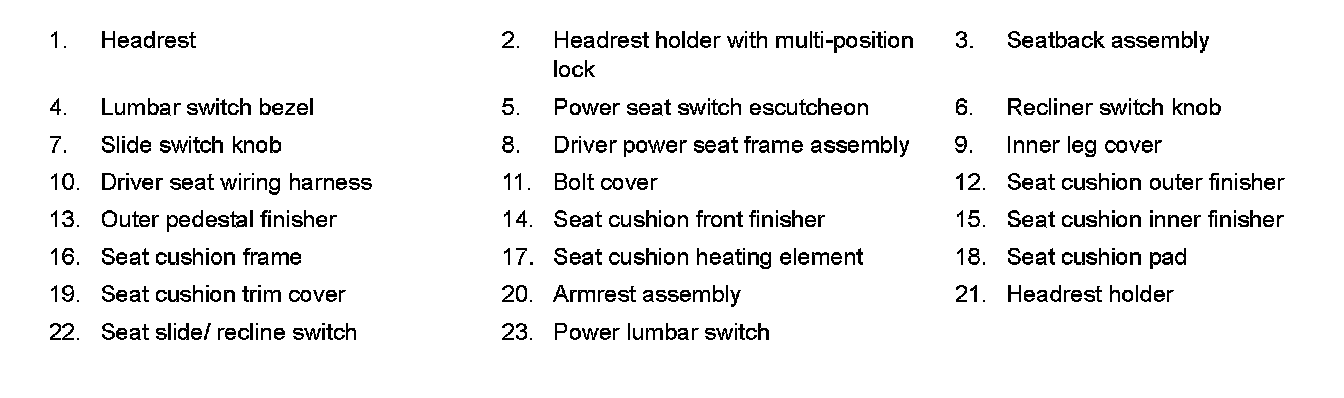

Driver Seat

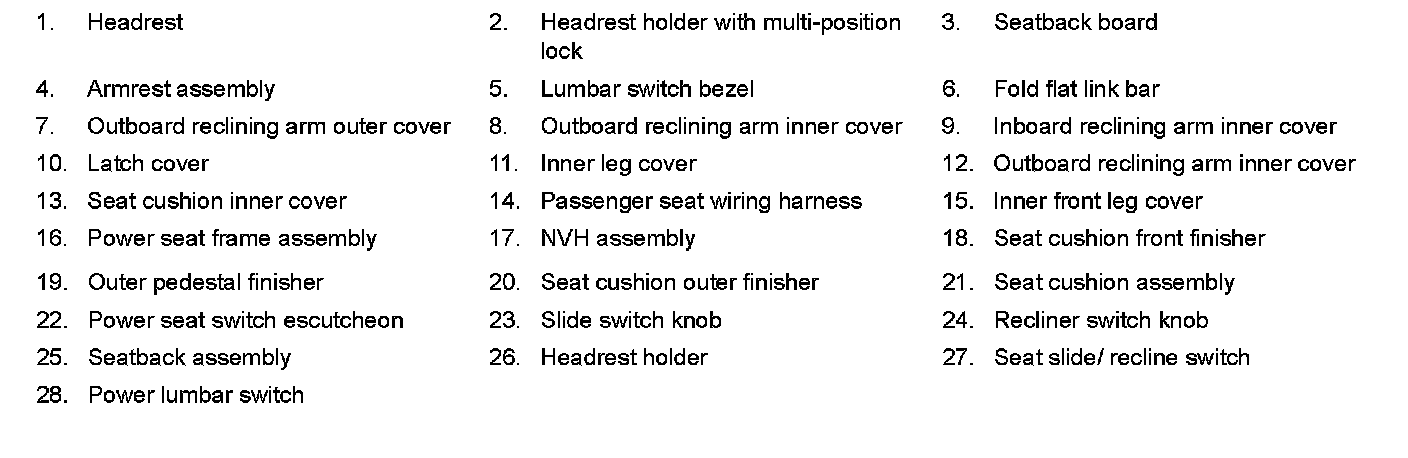

Passenger Seat
