Infiniti Truck
>>
2010
>>
QX56 RWD V8-5.6L (VK56DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Rear Center Console
>>
Exploded View
Exploded View

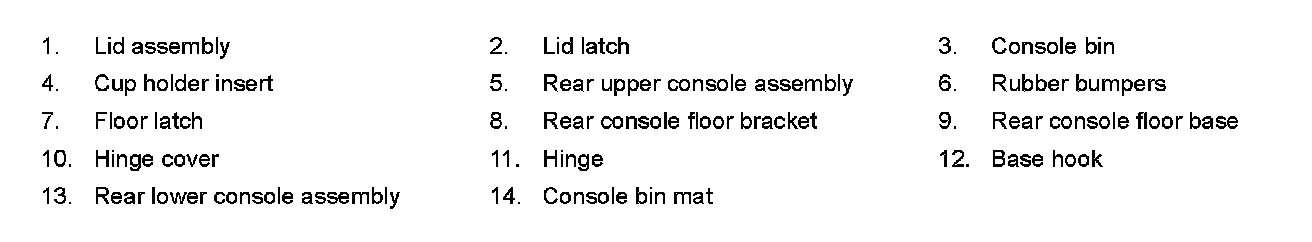

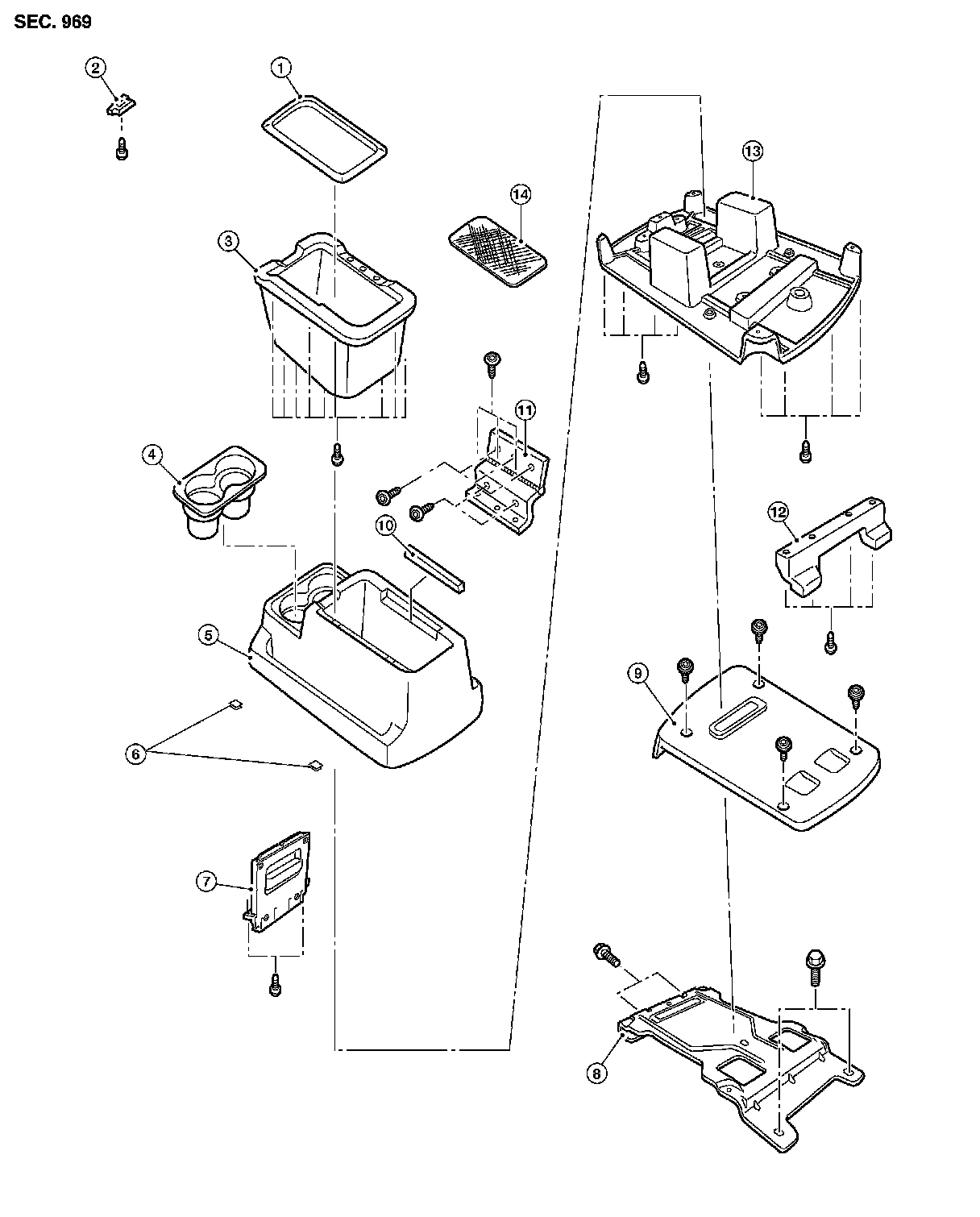

REAR CENTER CONSOLE
Exploded View
