Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti Truck
>>
2010
>>
FX50 AWD V8-5.0L (VK50VE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Service and Repair
>>
Removal and Replacement
>>
Front Final Drive F160A
>>

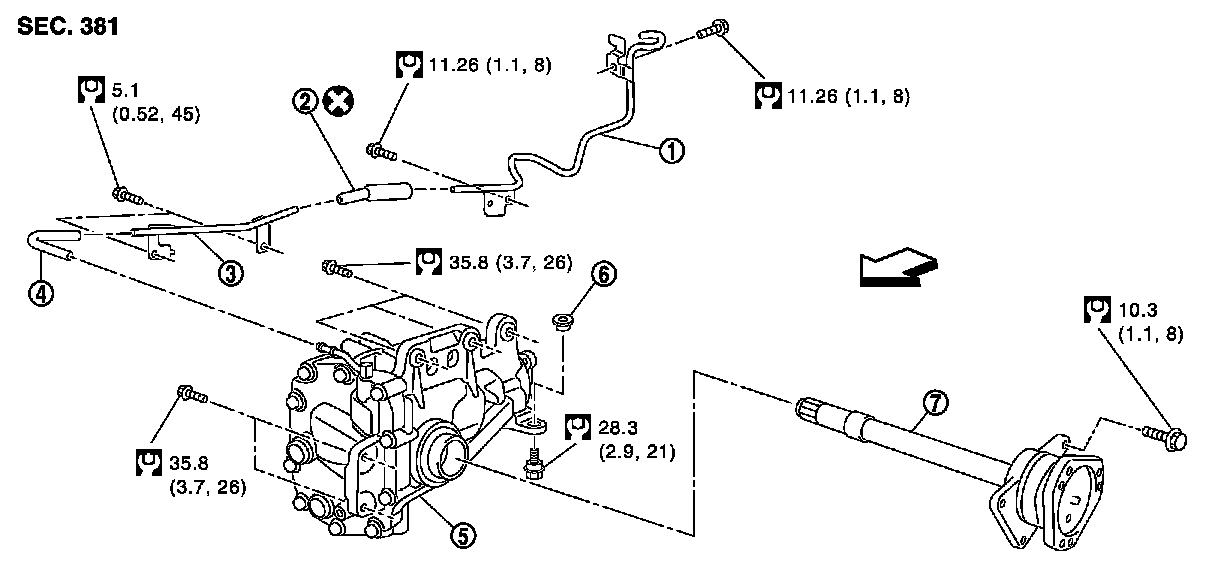

Exploded View
Exploded View

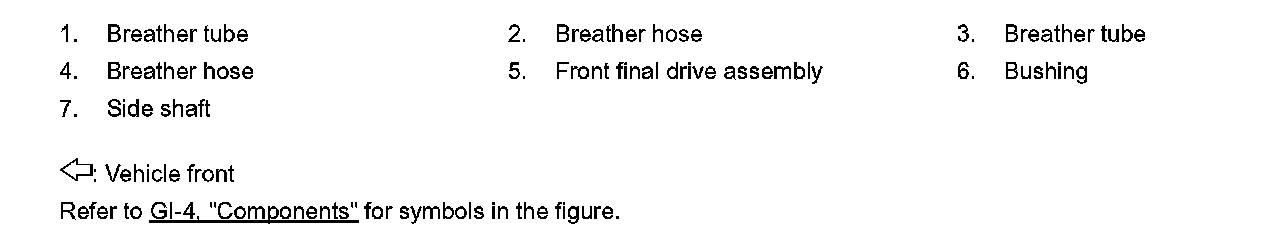

FRONT FINAL DRIVE ASSEMBLY
VK50VE VK50VE : Exploded View
