CAN System (With Active AFS)





CAN COMMUNICATION SYSTEM

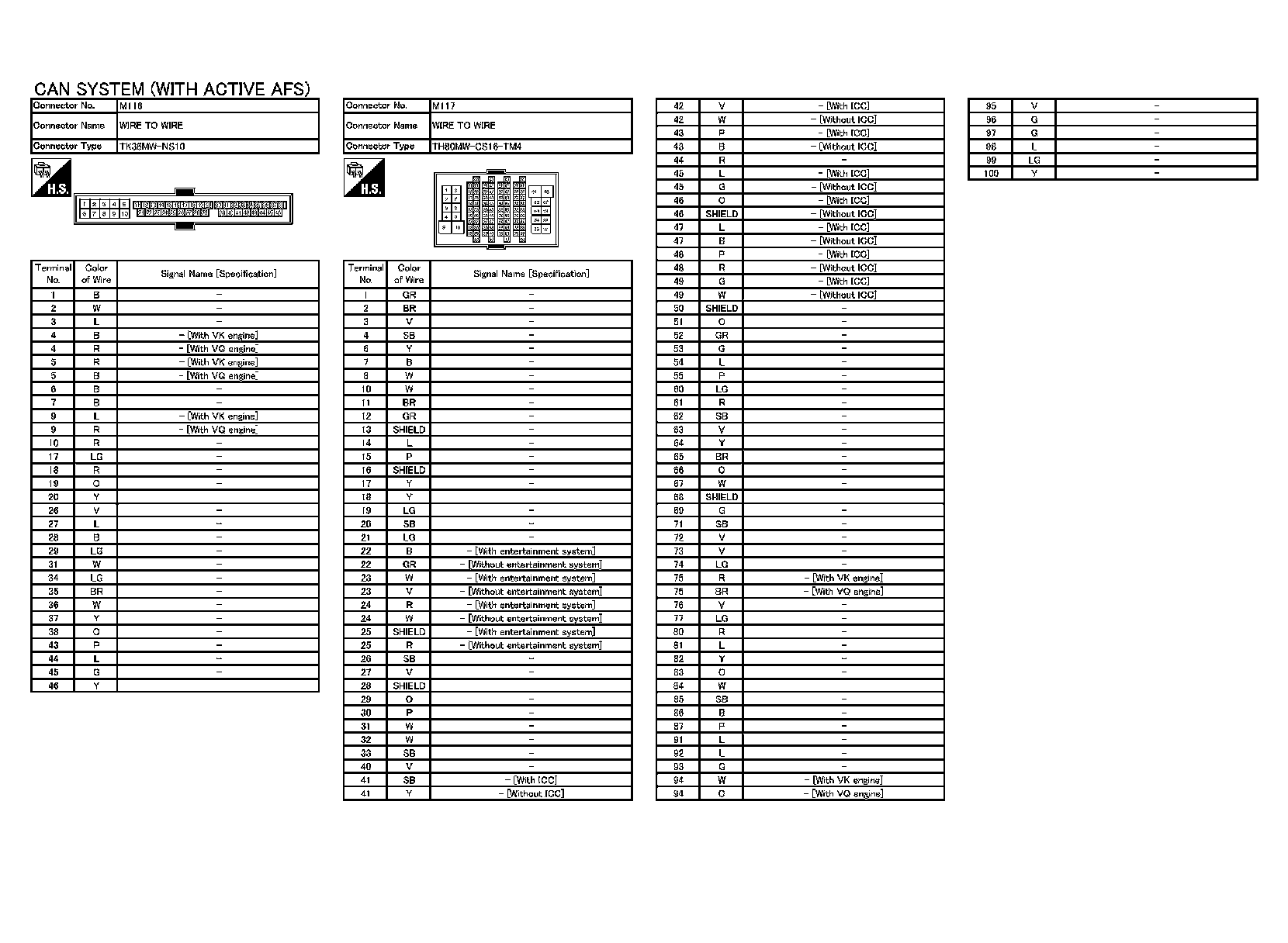

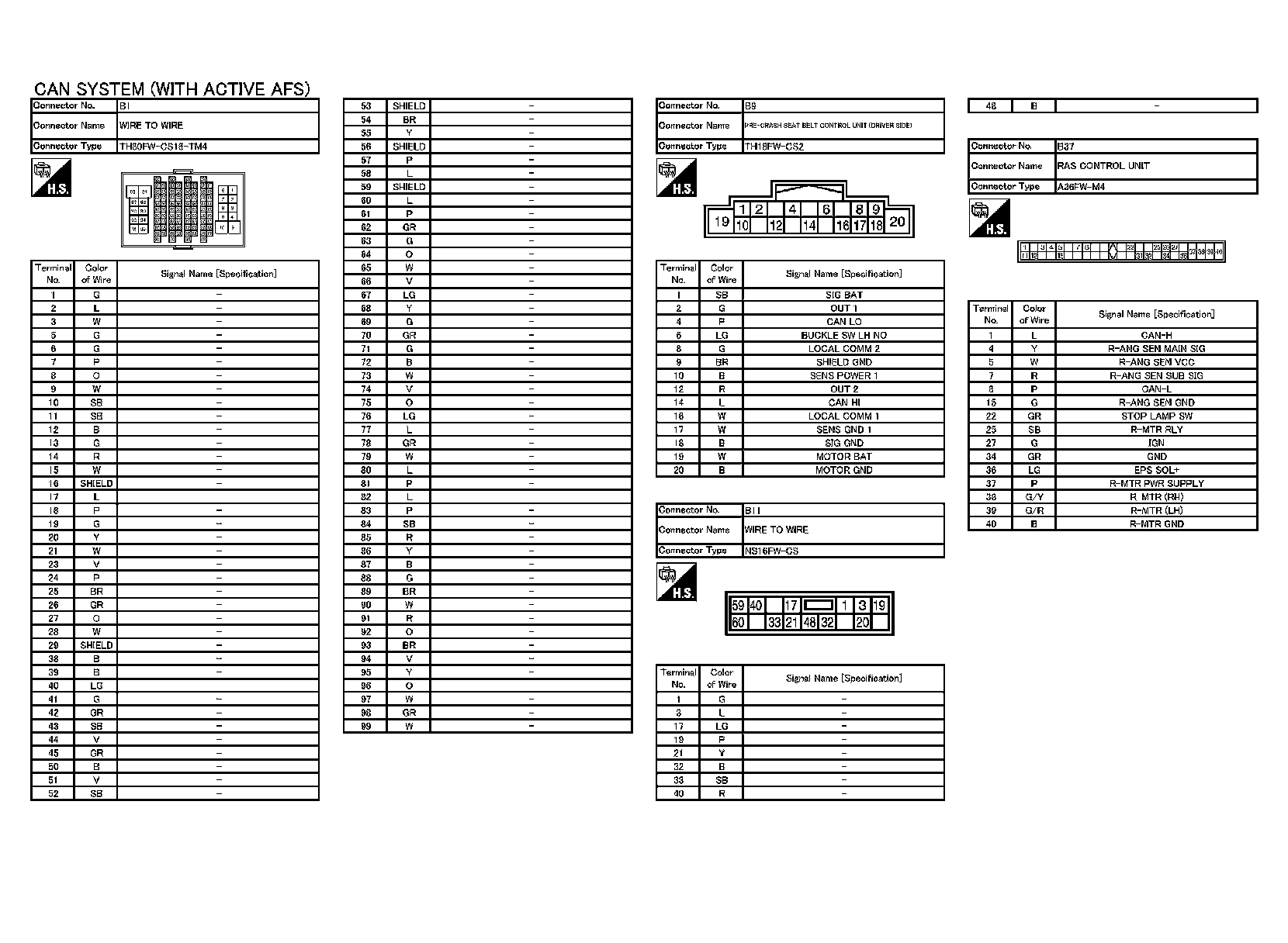

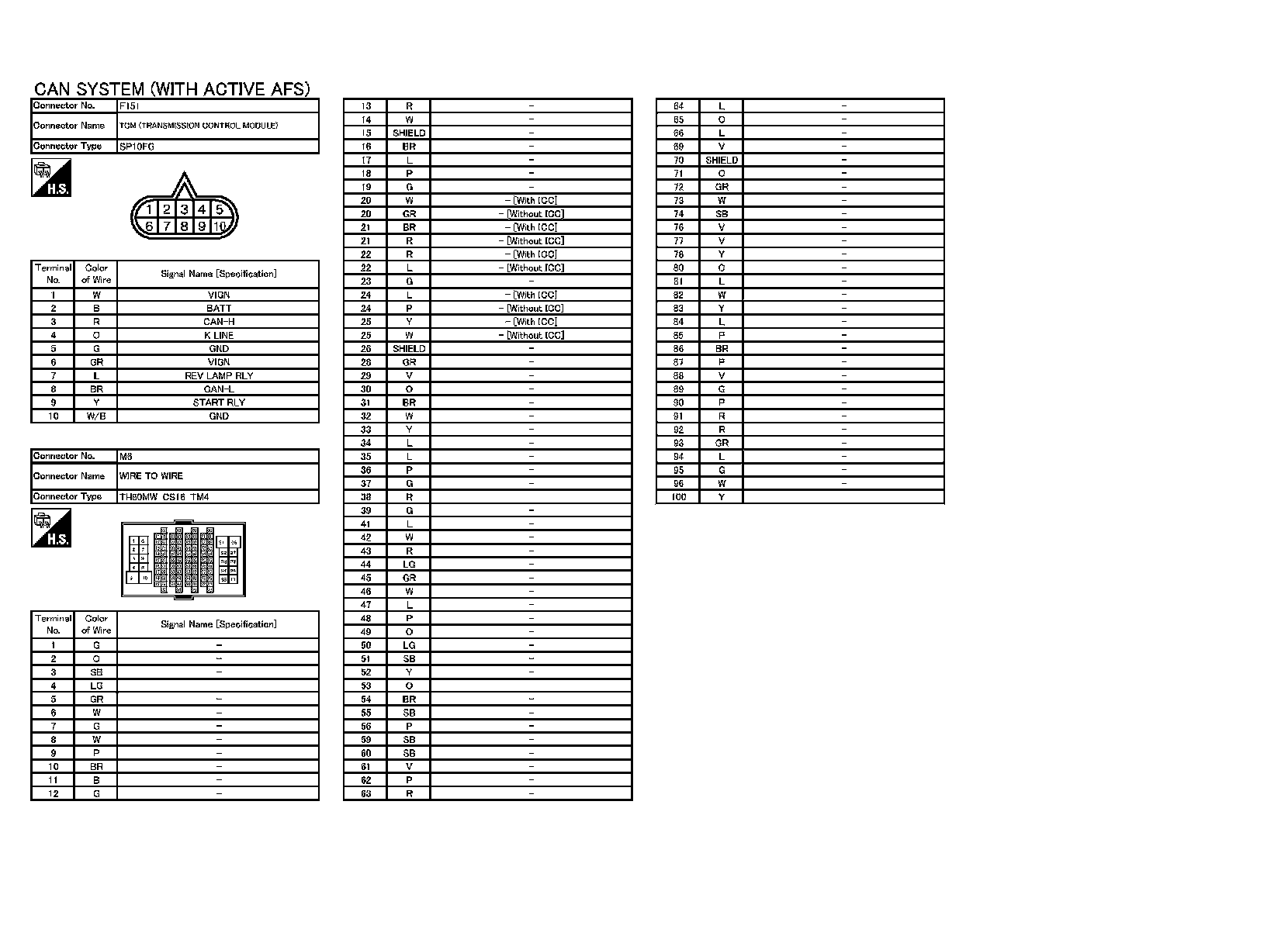

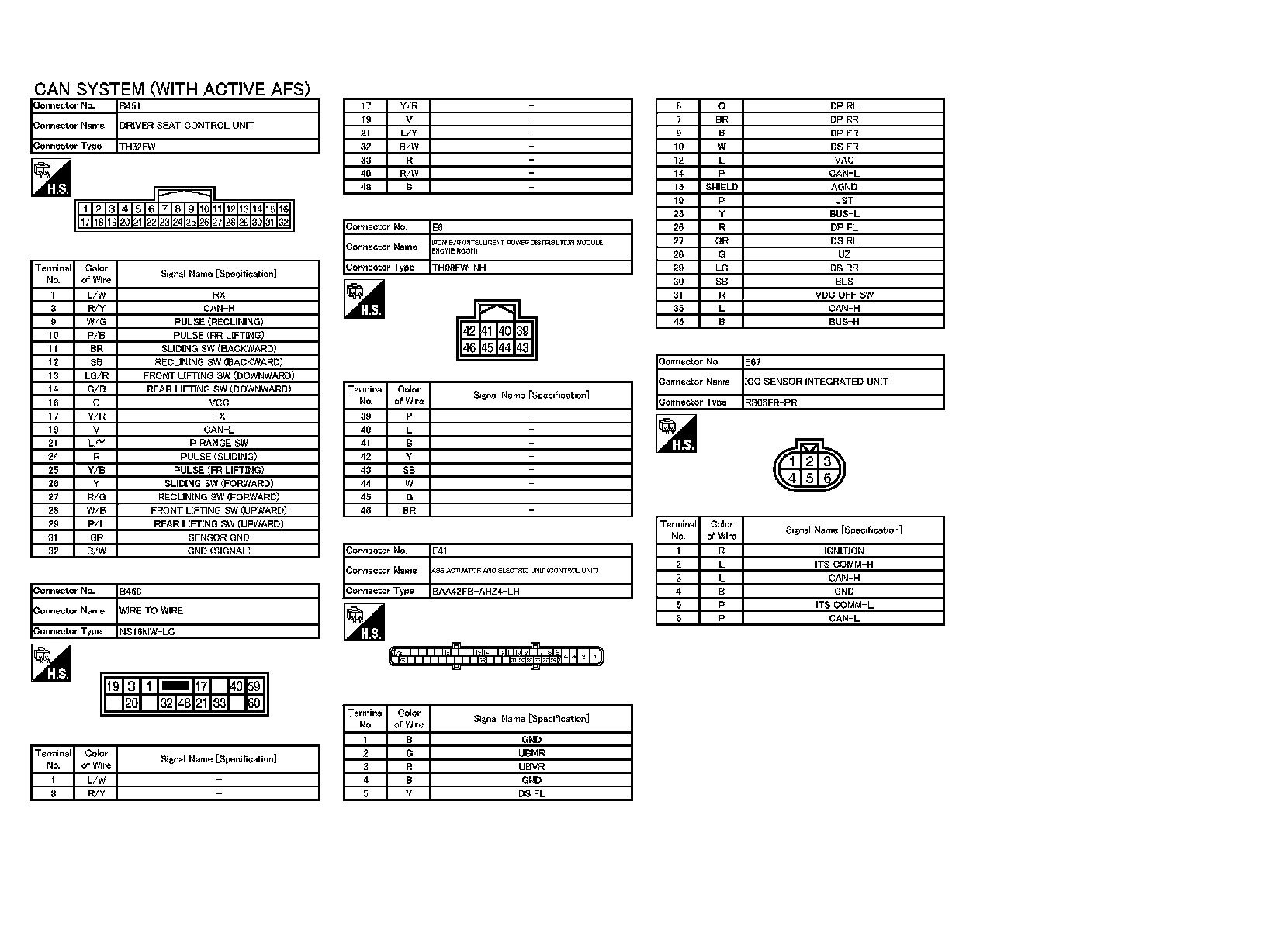

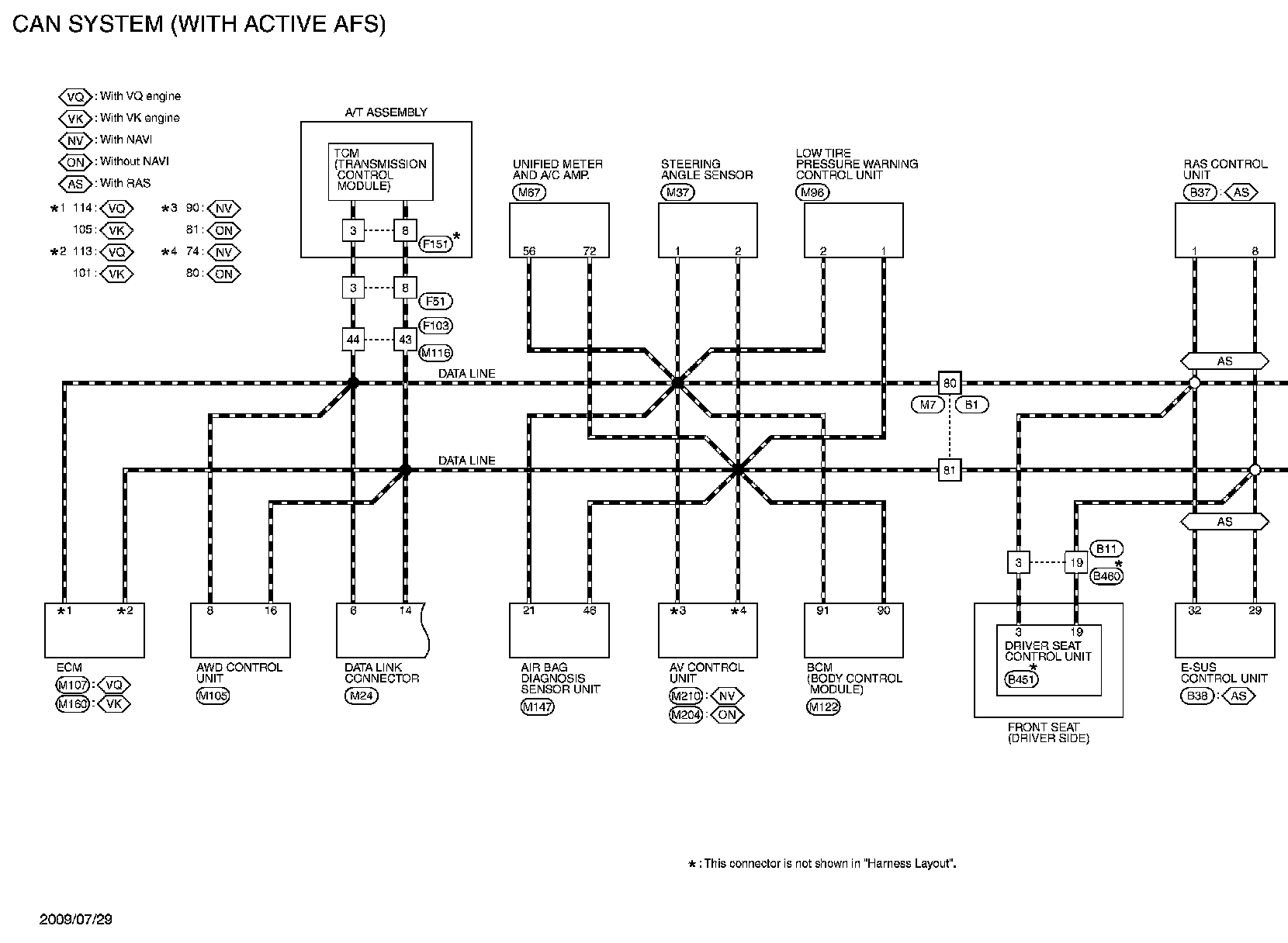

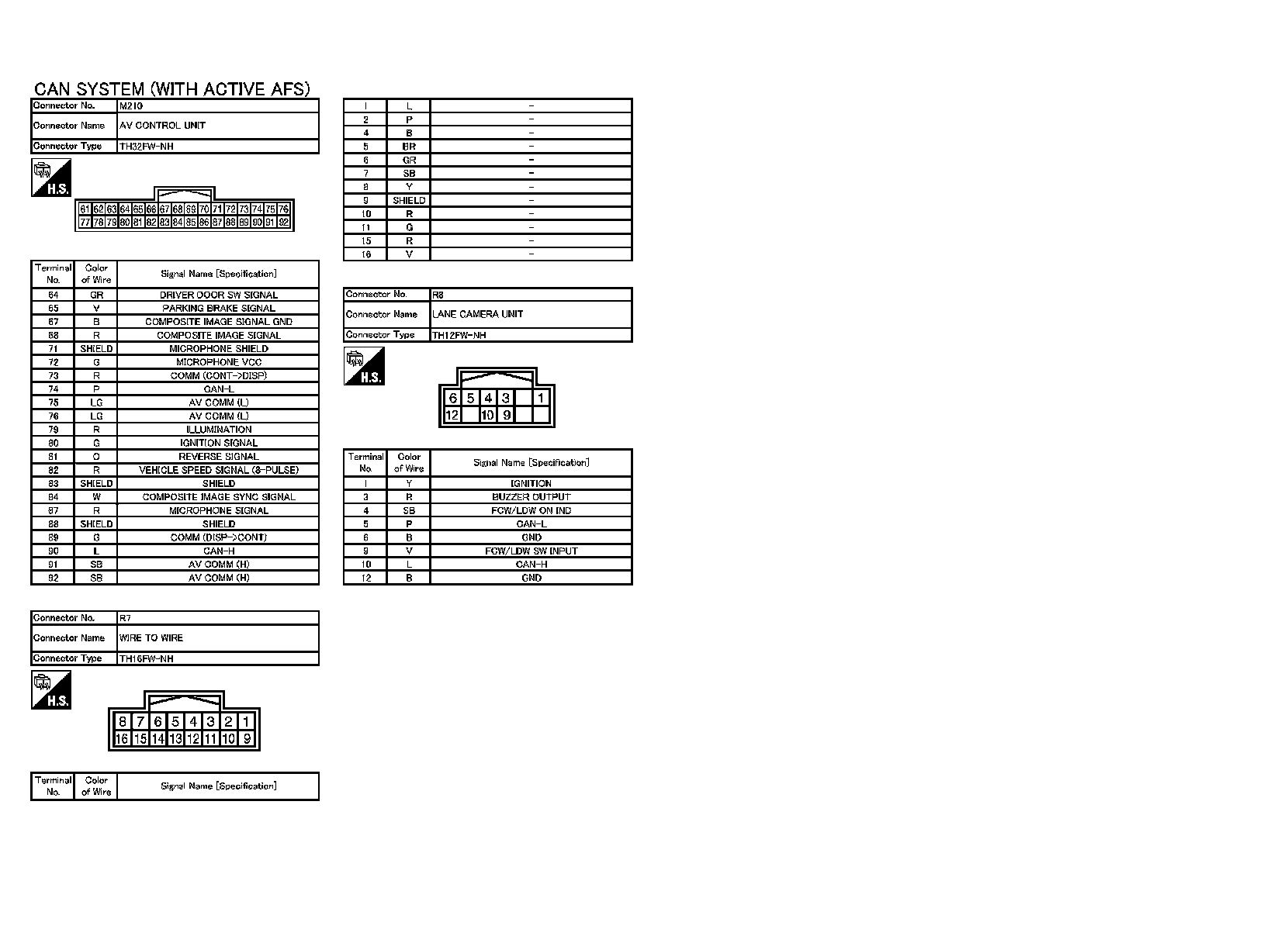

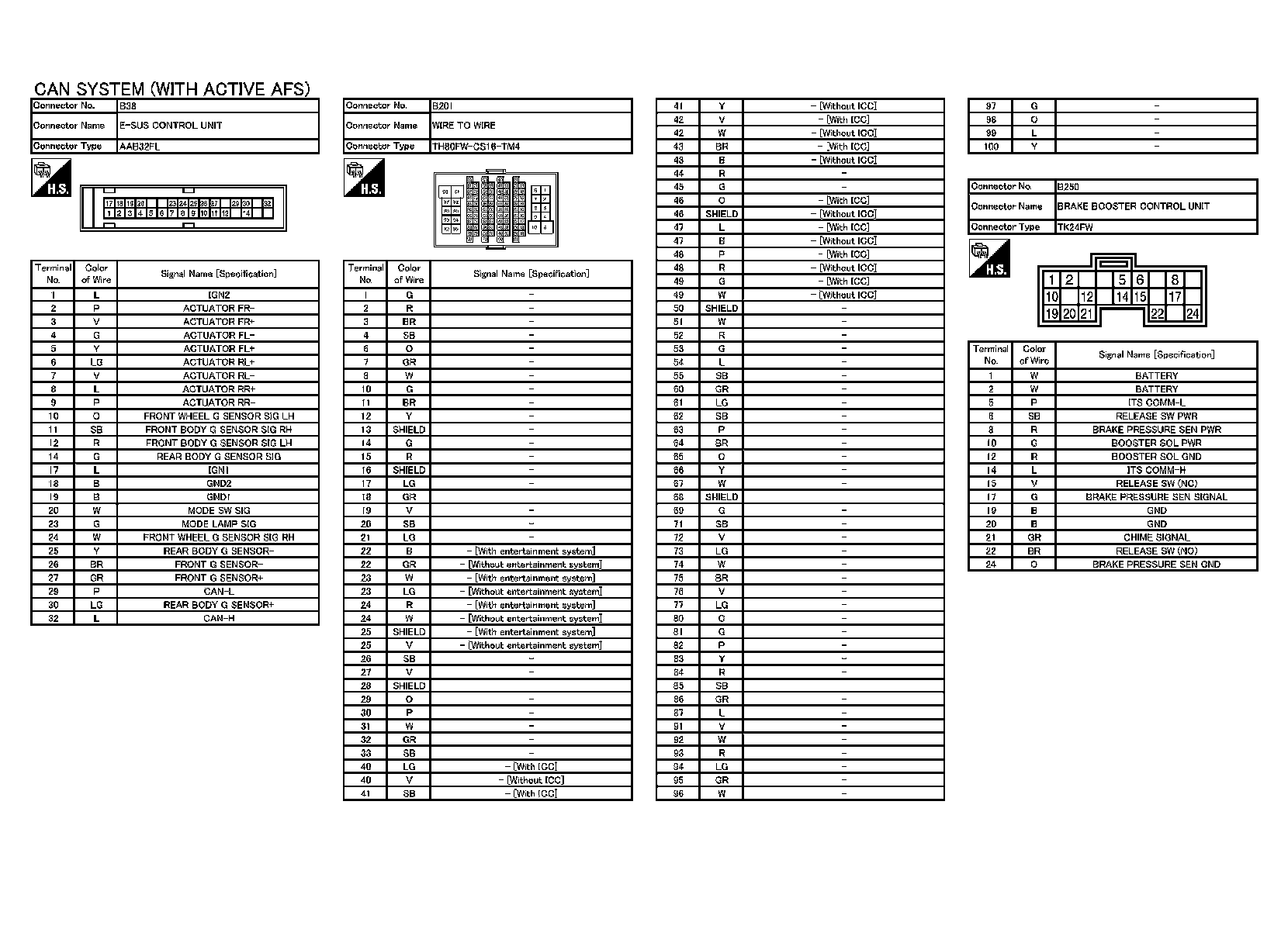

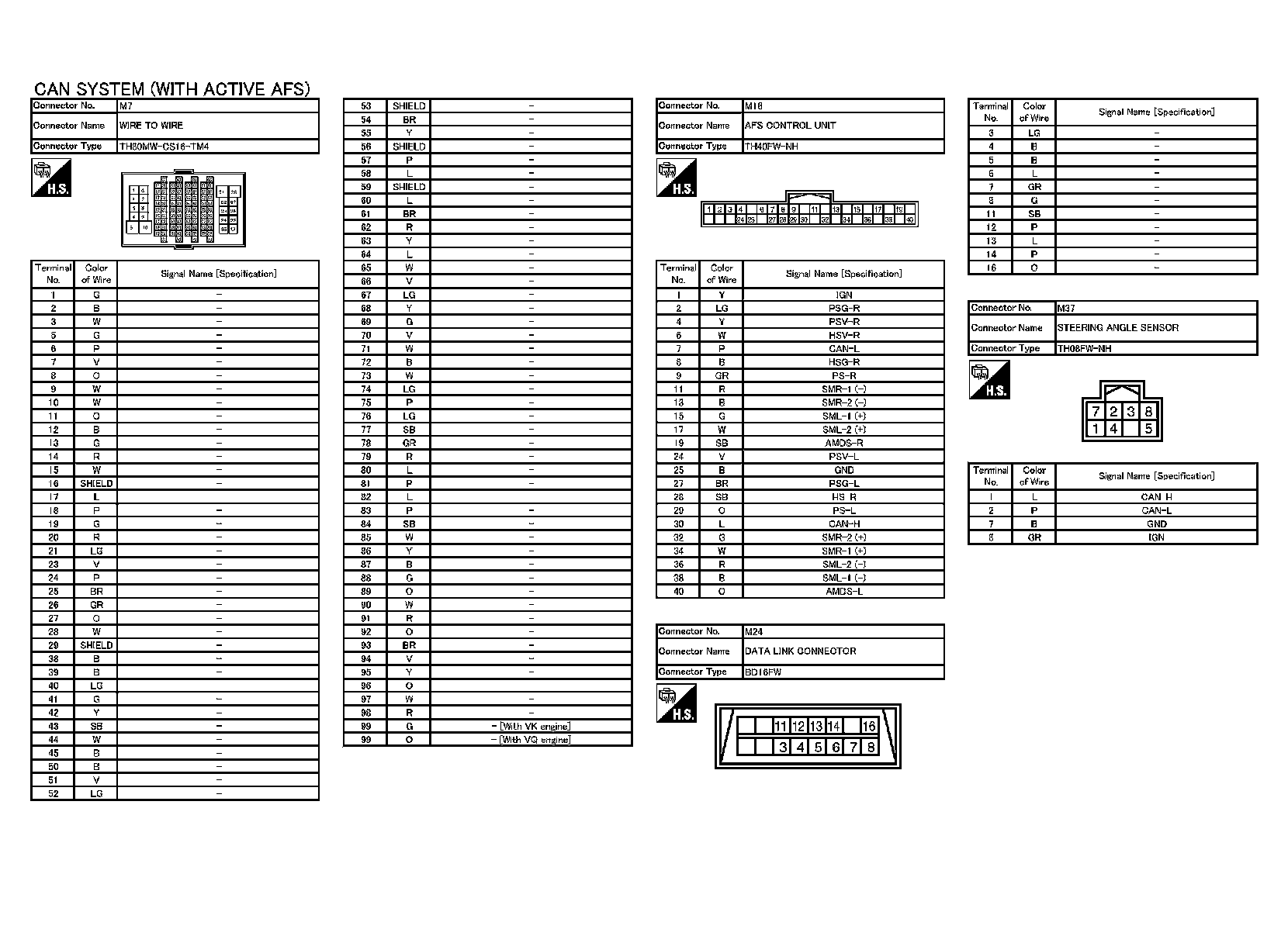

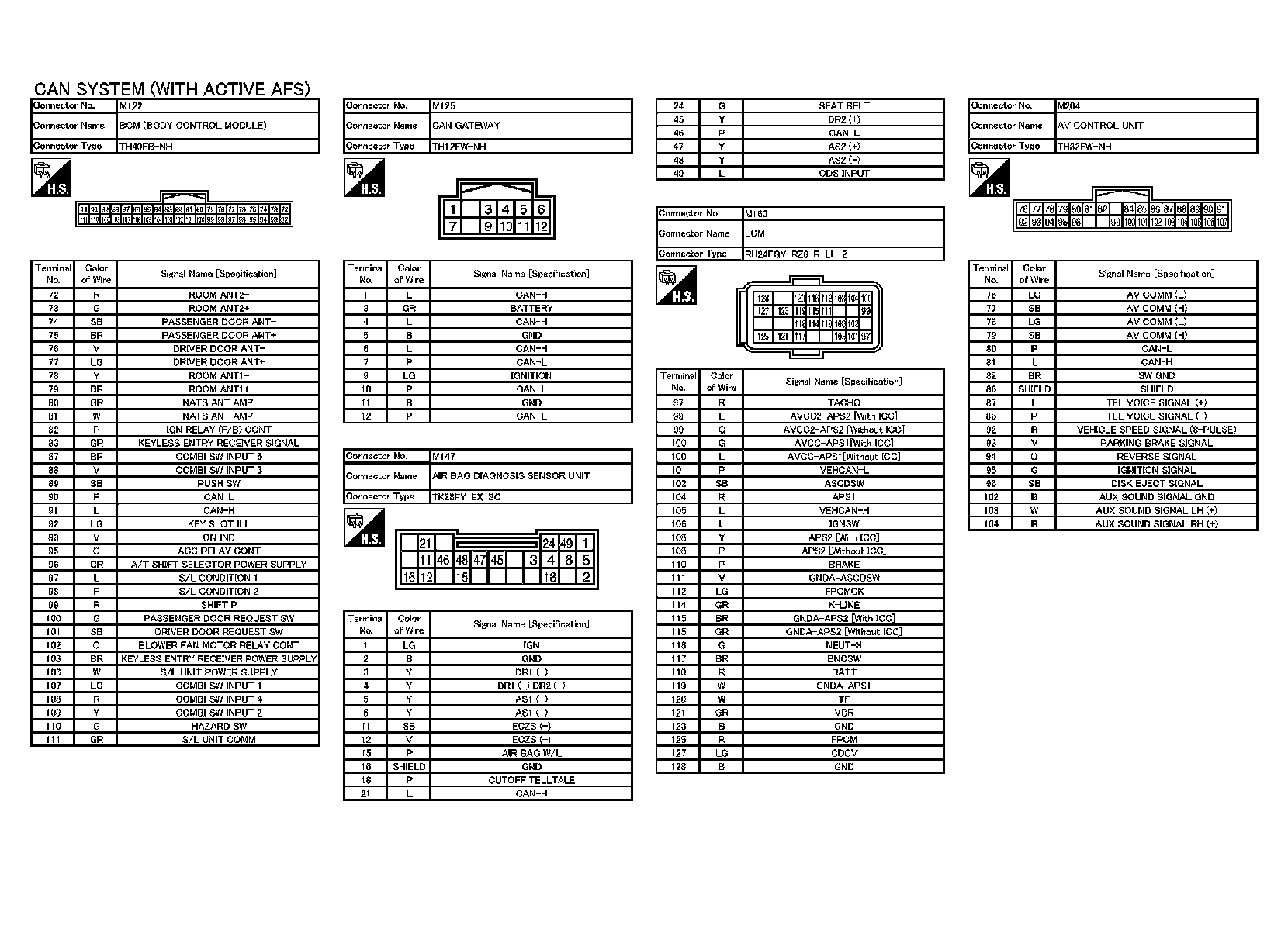

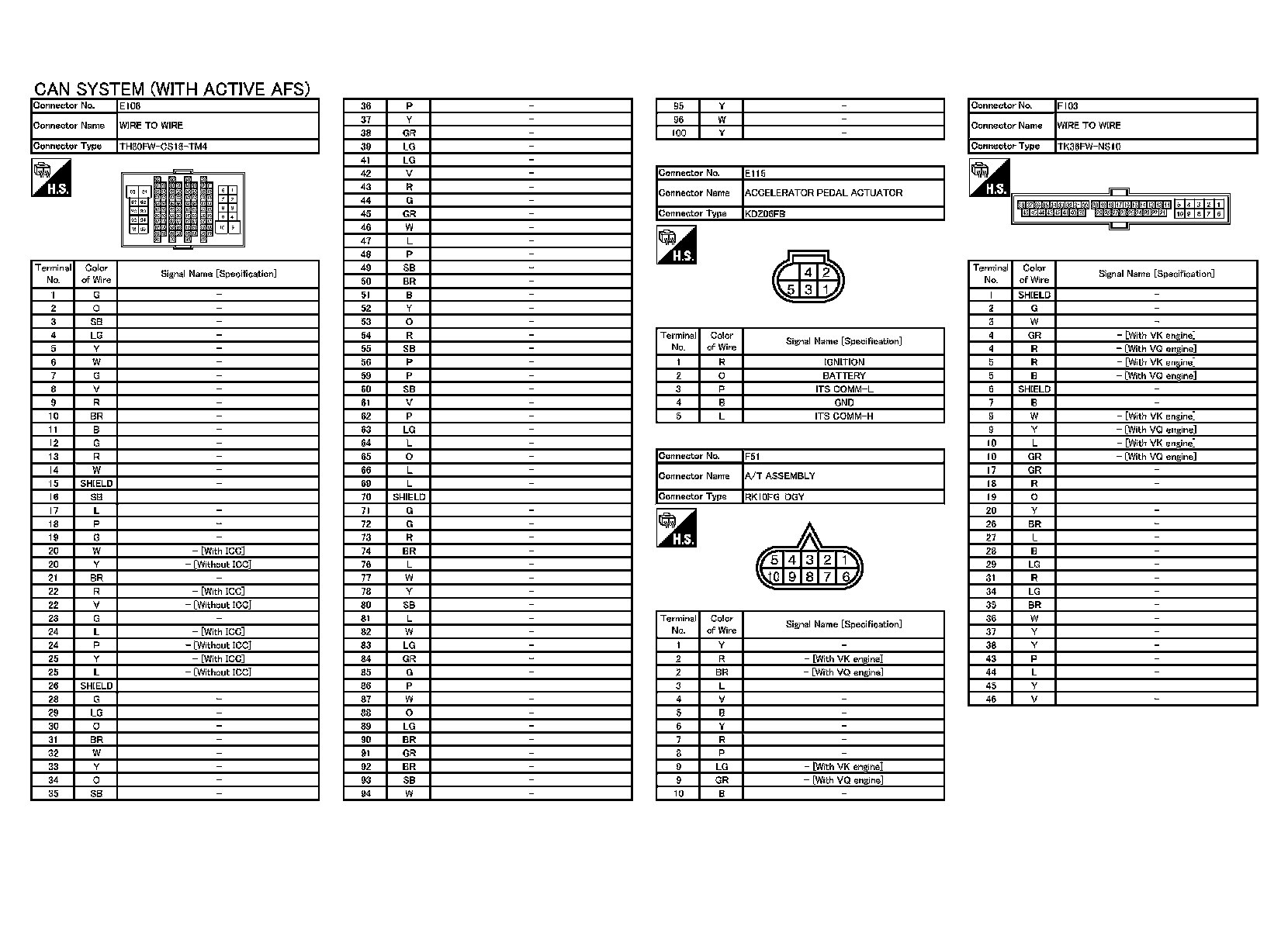

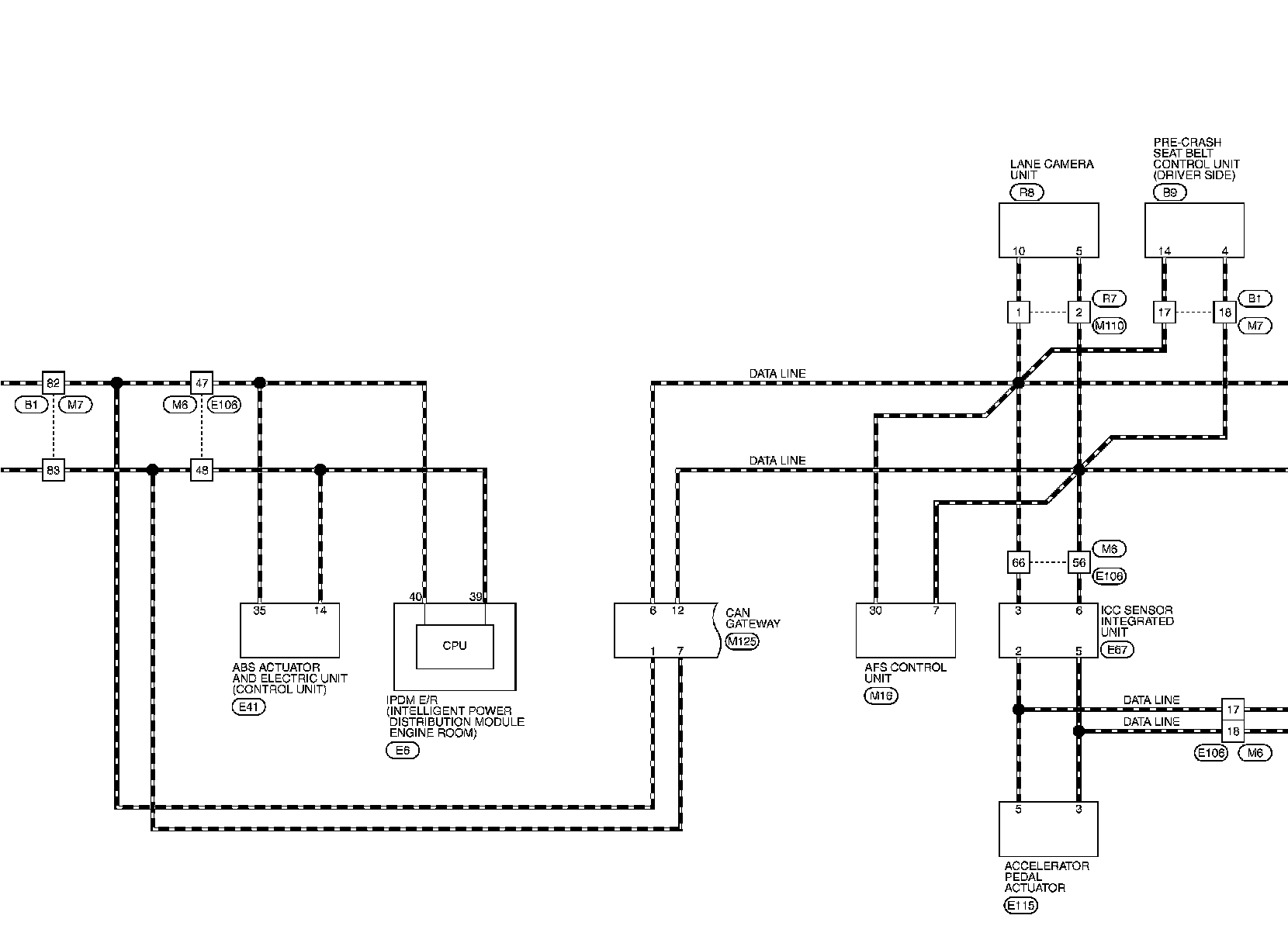

Wiring Diagram - CAN SYSTEM (WITH ACTIVE AFS) -
