Infiniti Truck
>>
2010
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Memory Positioning Systems
>>
BCM (Body Control Module)
>>
ADP
ADP

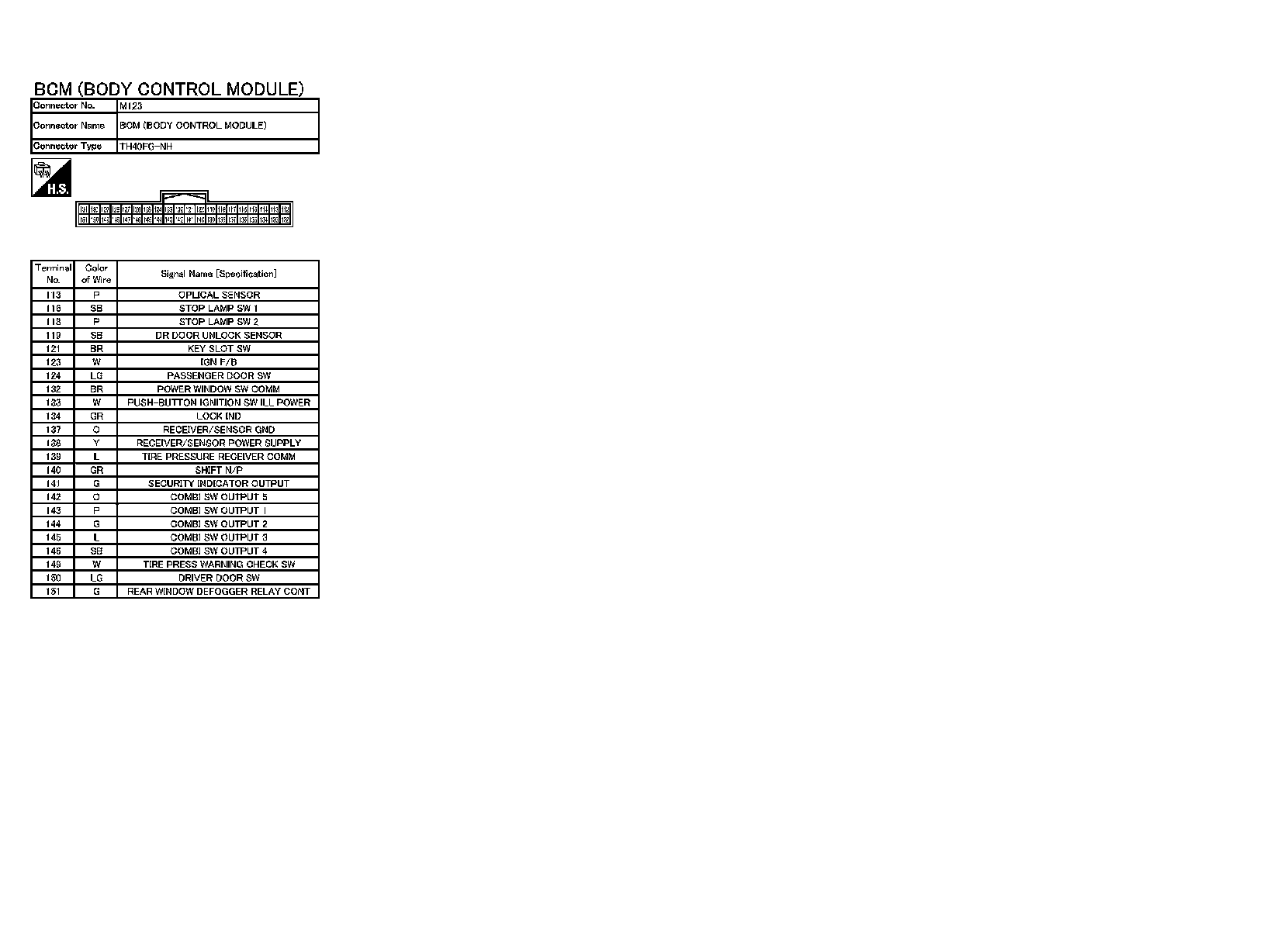

BCM (BODY CONTROL MODULE)

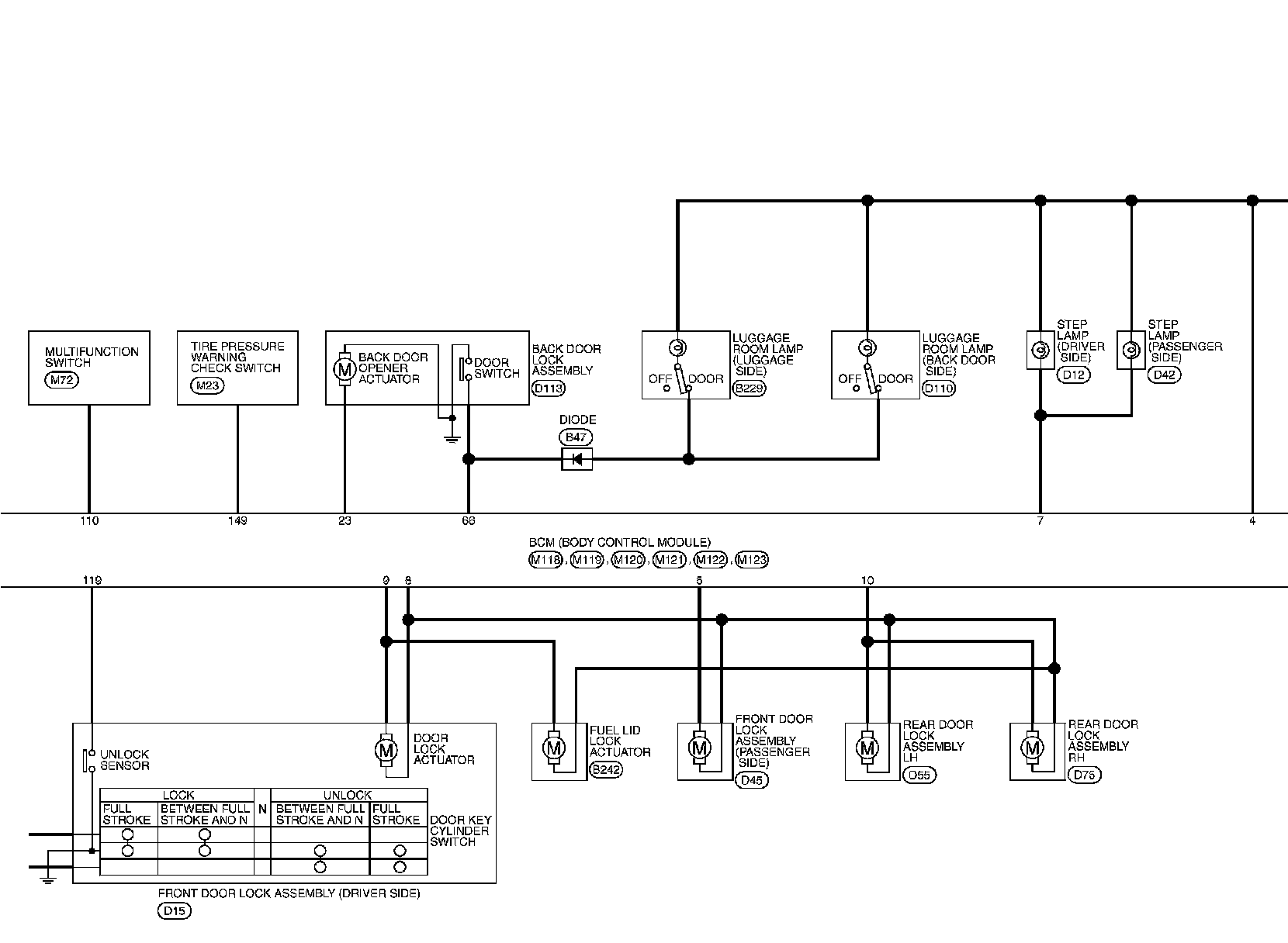

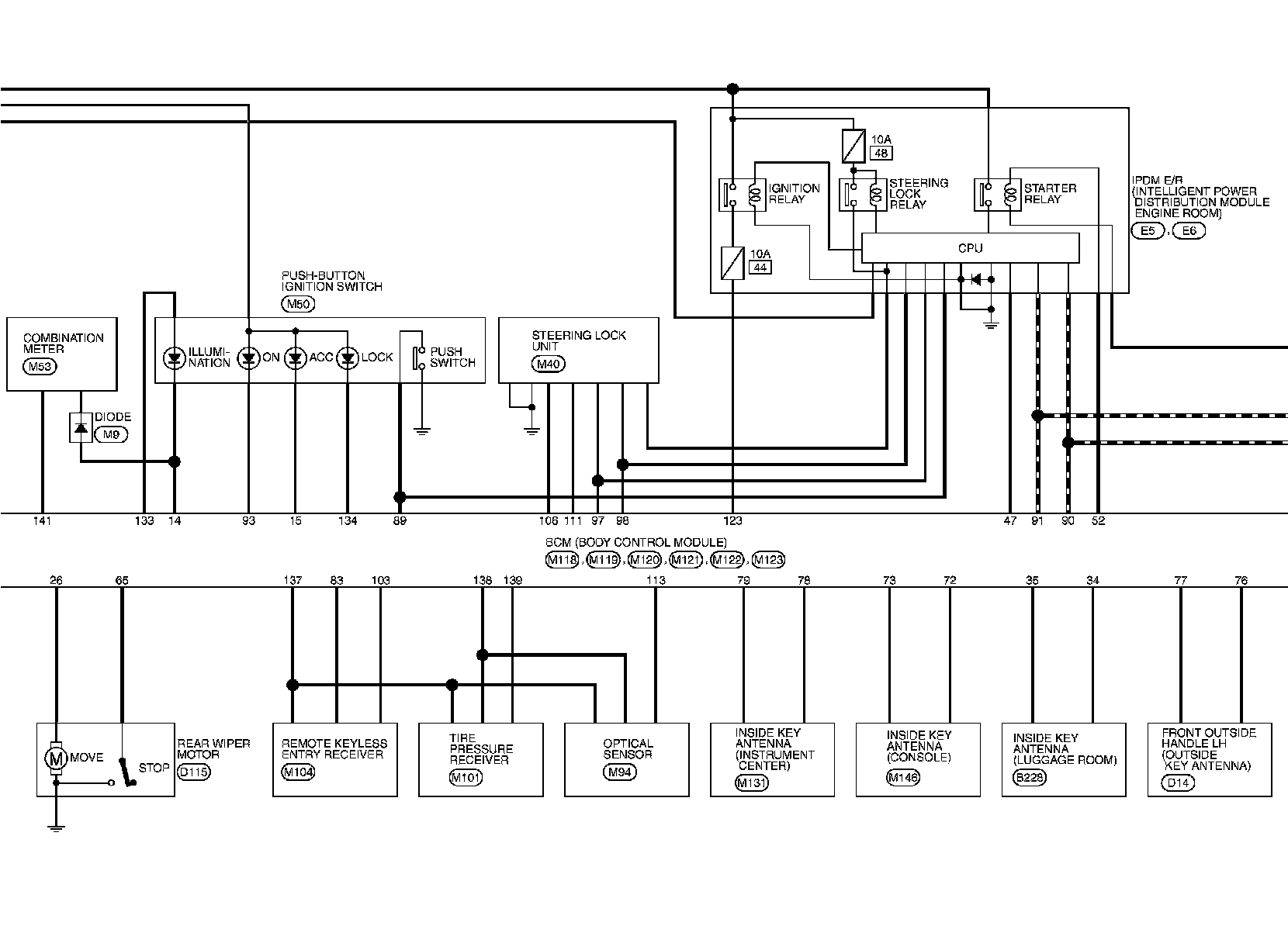

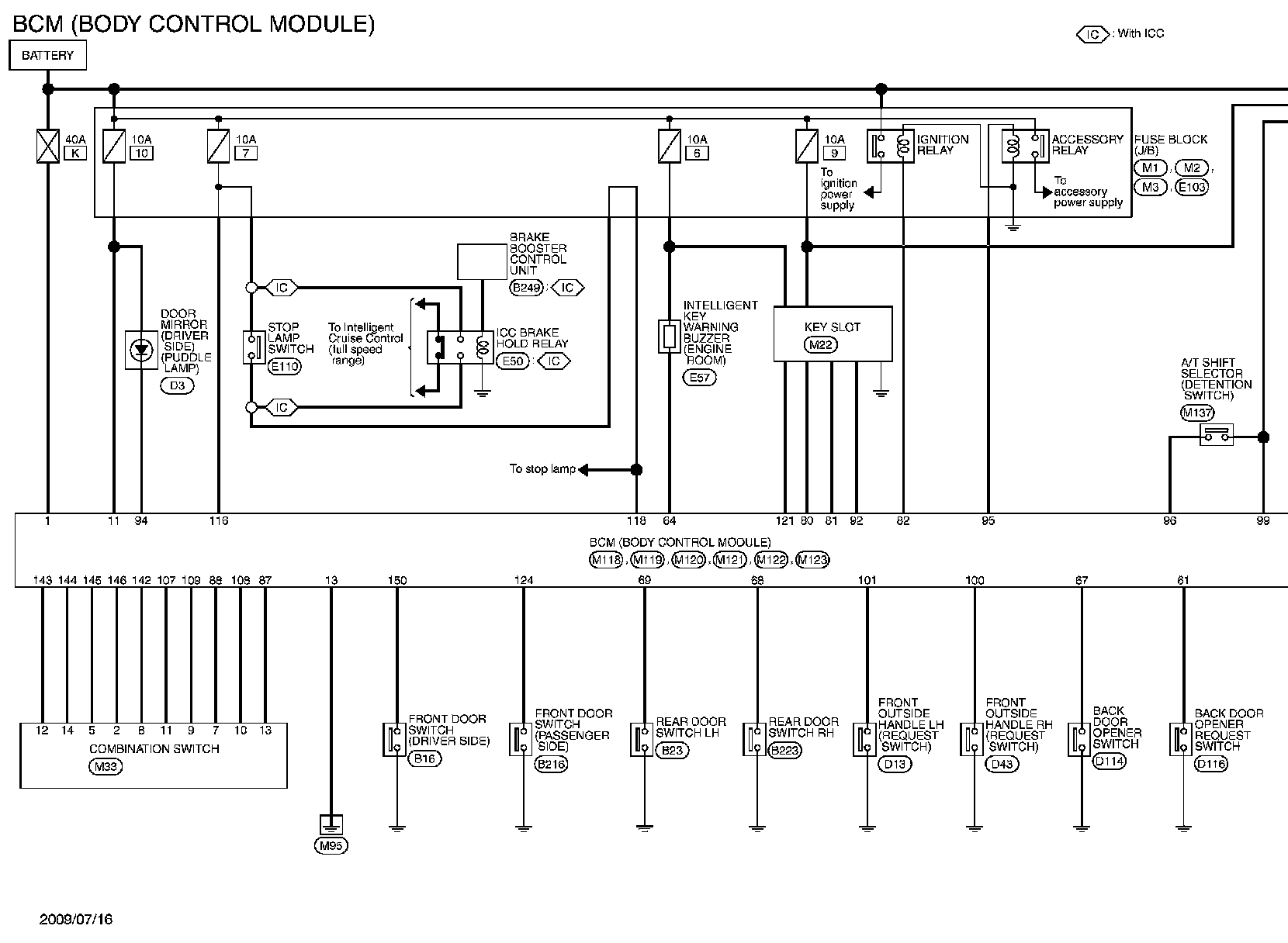

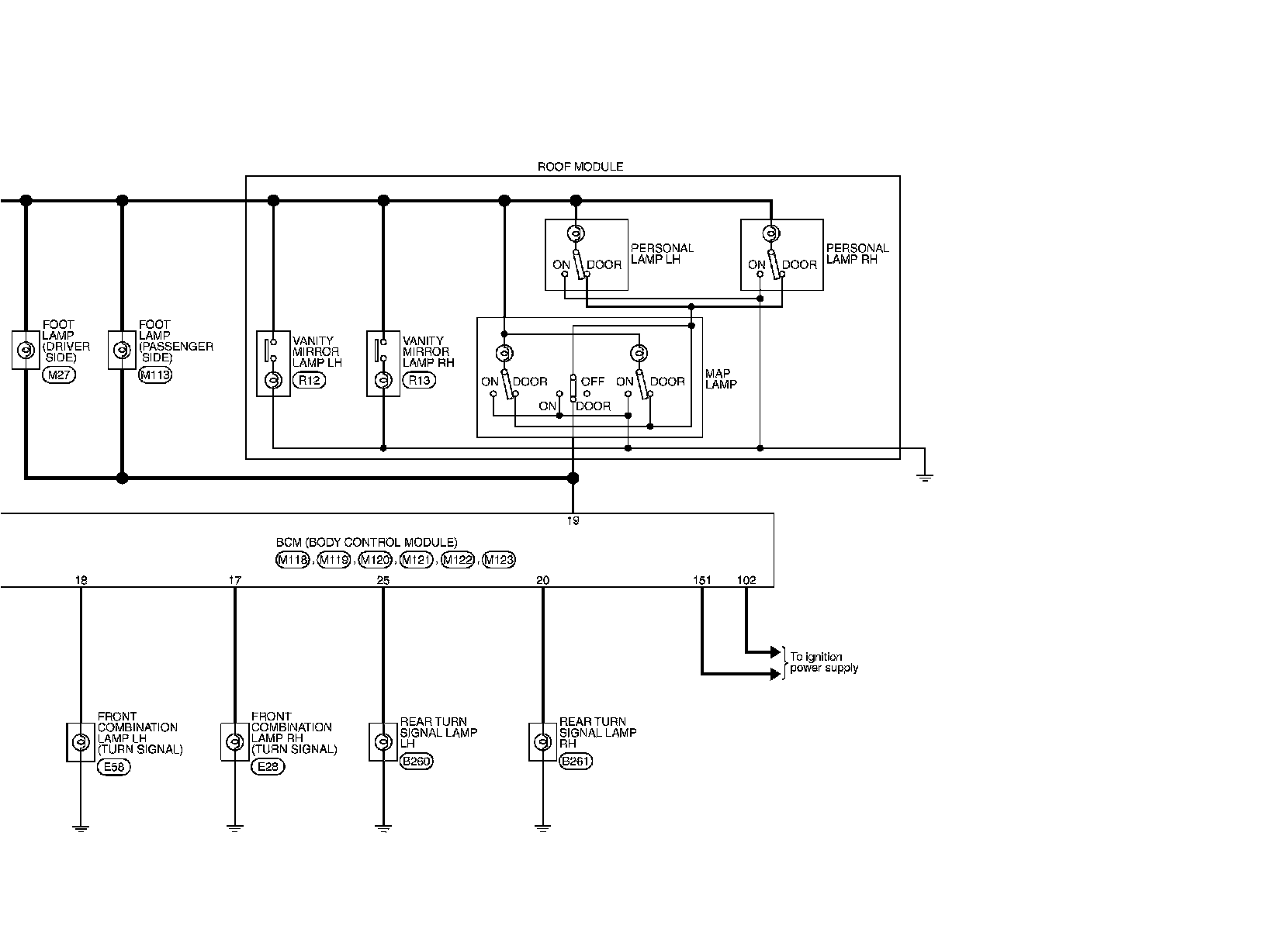

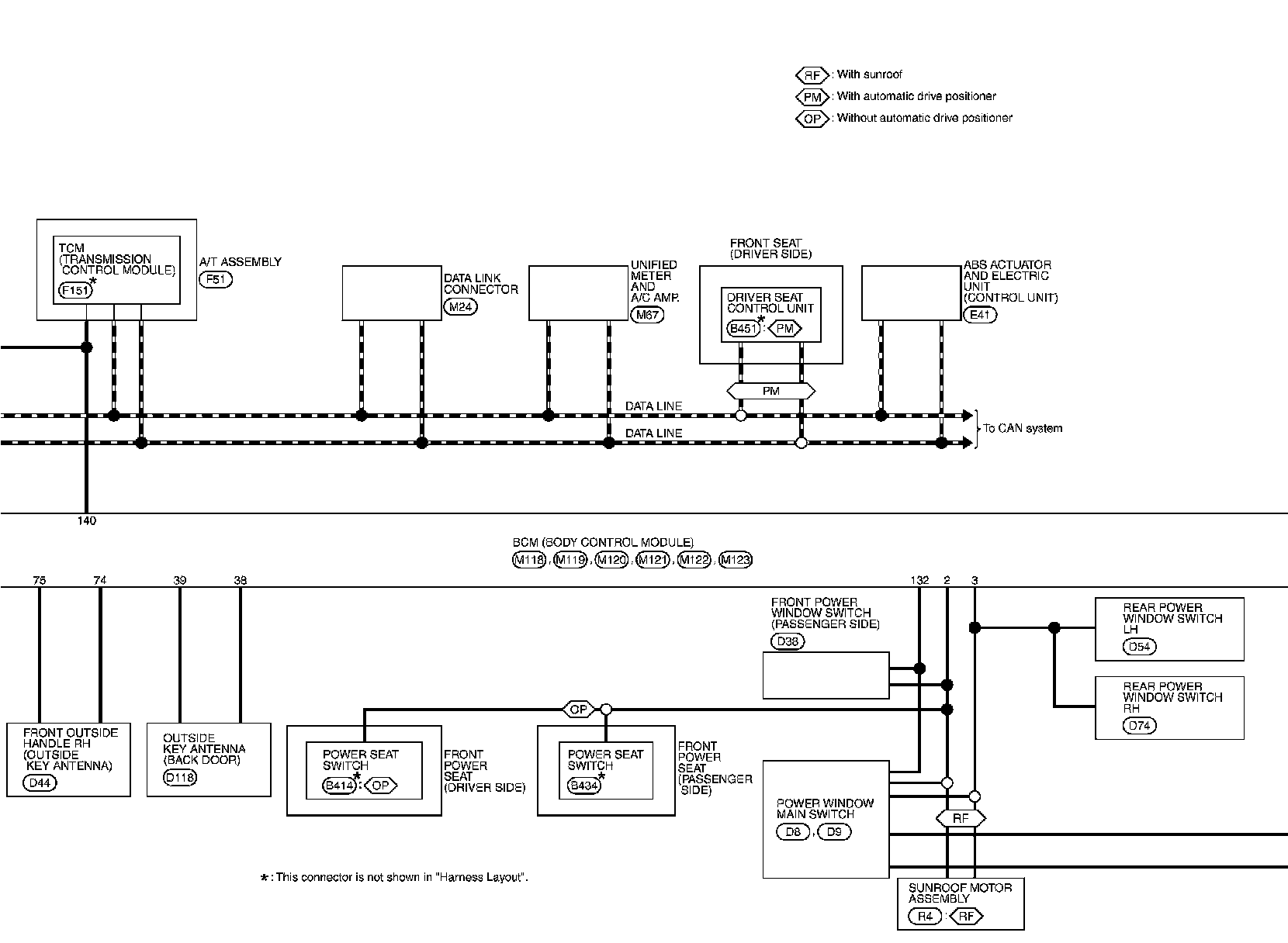

Wiring Diagram - BCM -
