Infiniti Truck
>>
2010
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
ICC Sensor Integrated Unit
>>
FCW
FCW
ICC SENSOR INTEGRATED UNIT
Reference Value

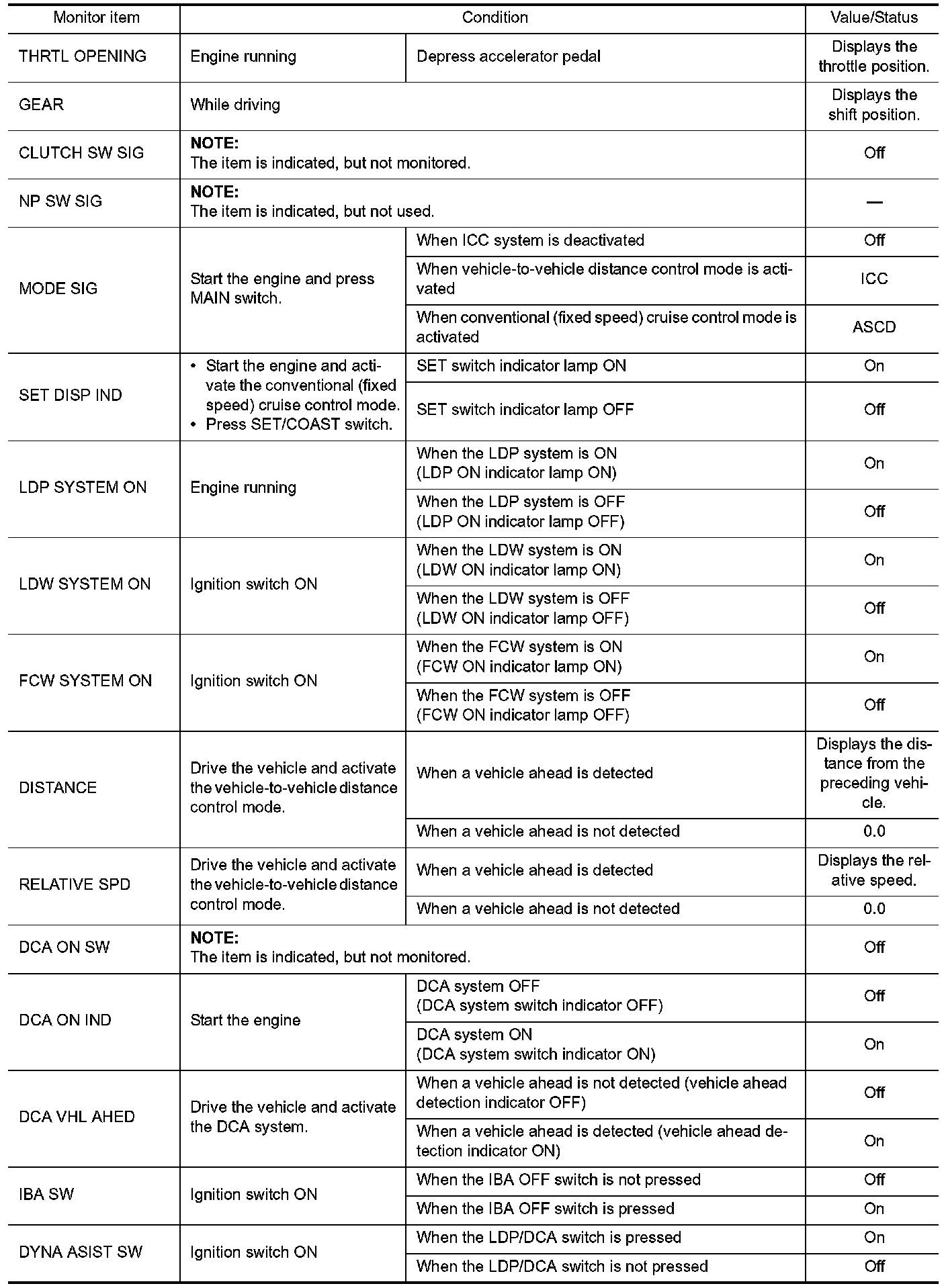

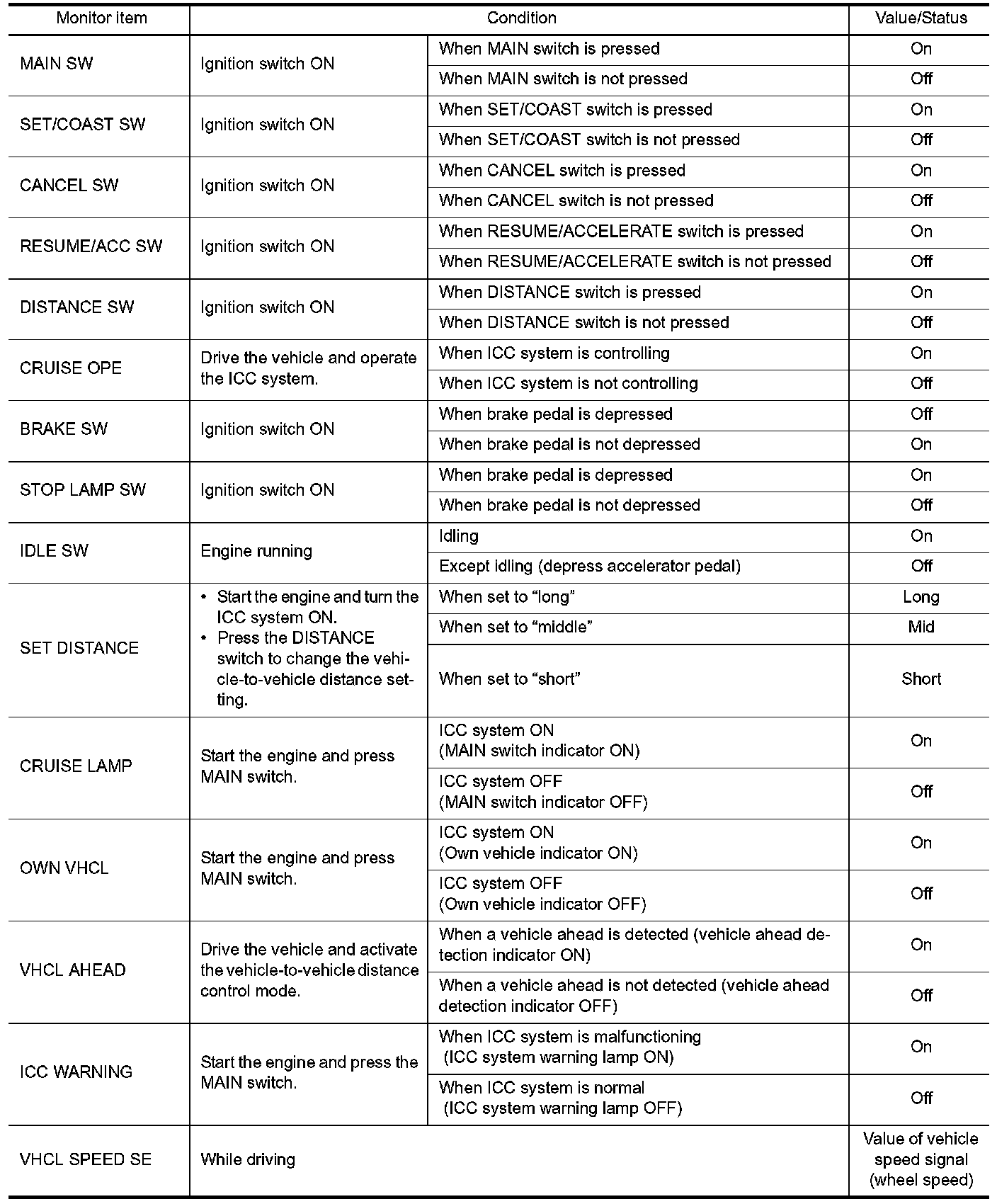

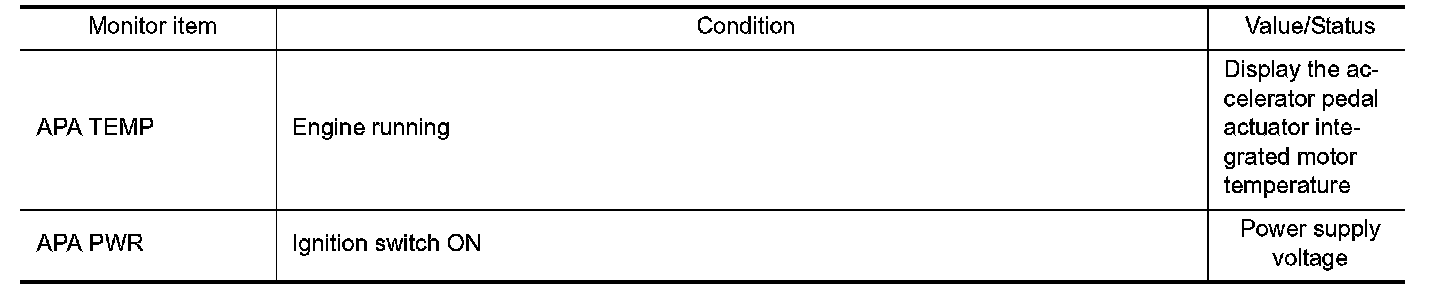

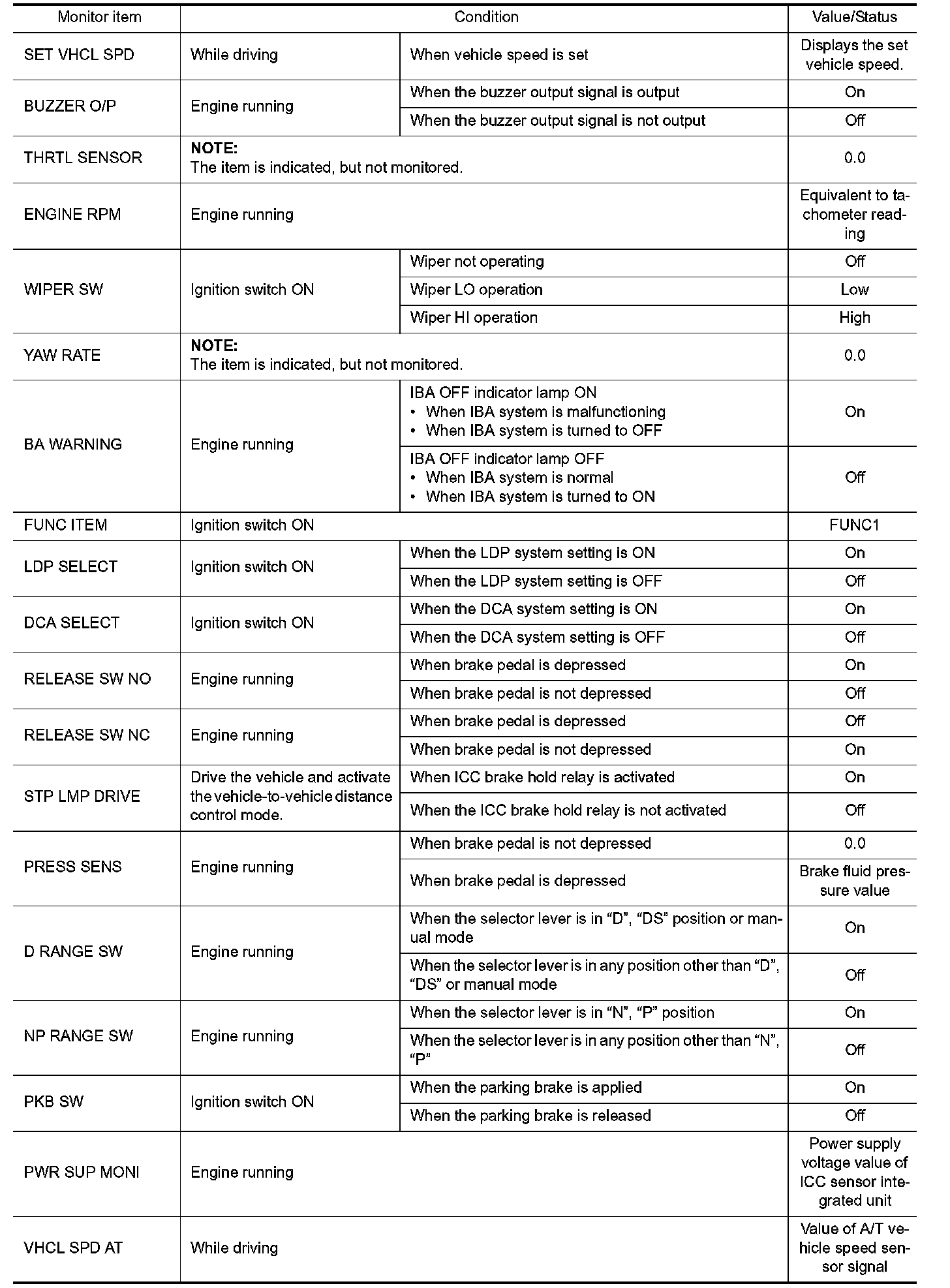

VALUES ON THE DIAGNOSIS TOOL

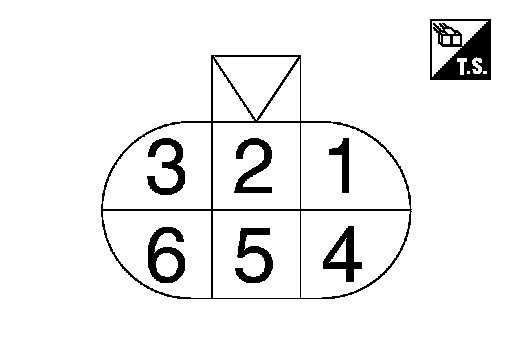

TERMINAL LAYOUT

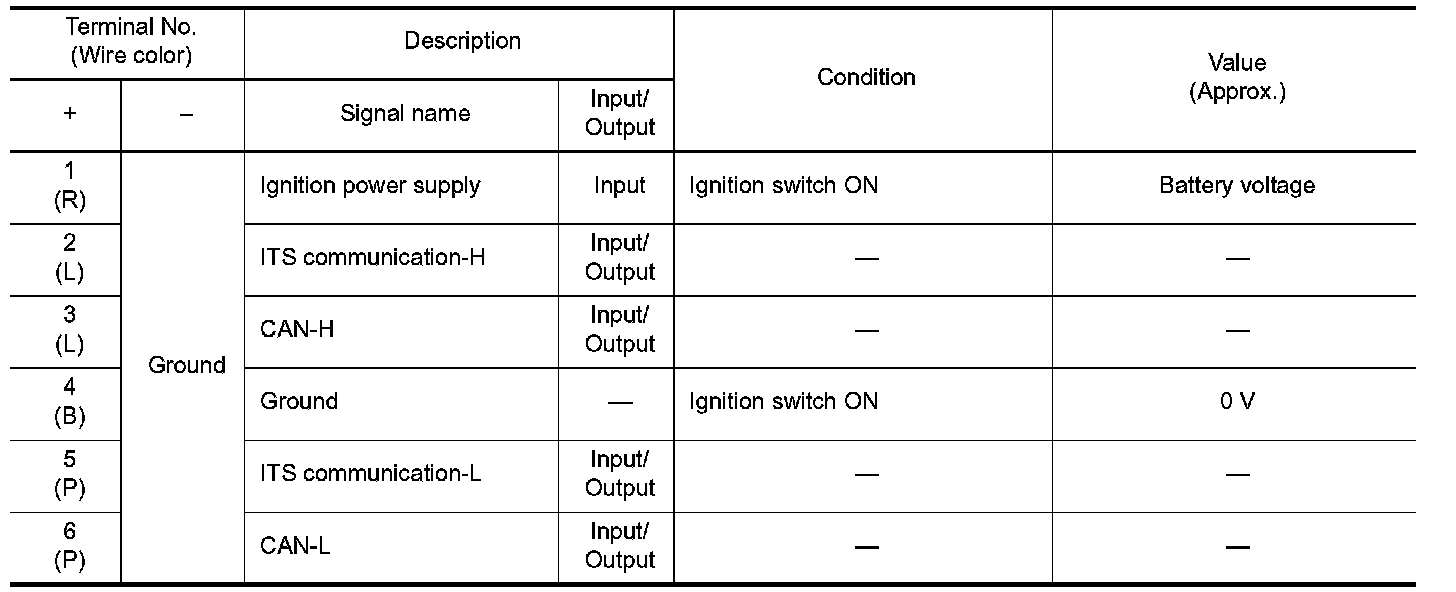

PHYSICAL VALUES
