ICC Sensor Integrated Unit
>>
Forward Collision Warning
Forward Collision Warning
ICC SENSOR INTEGRATED UNIT

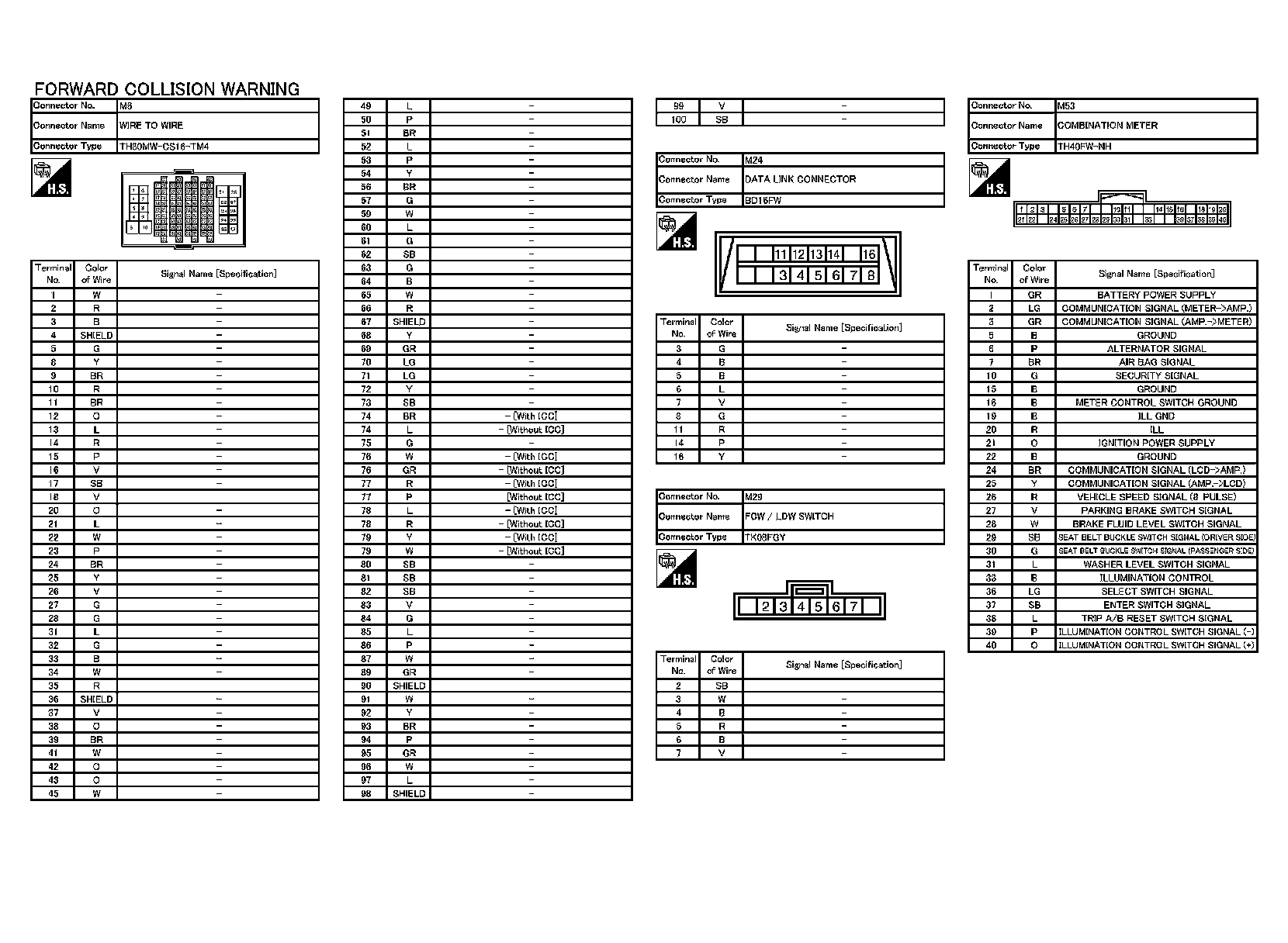

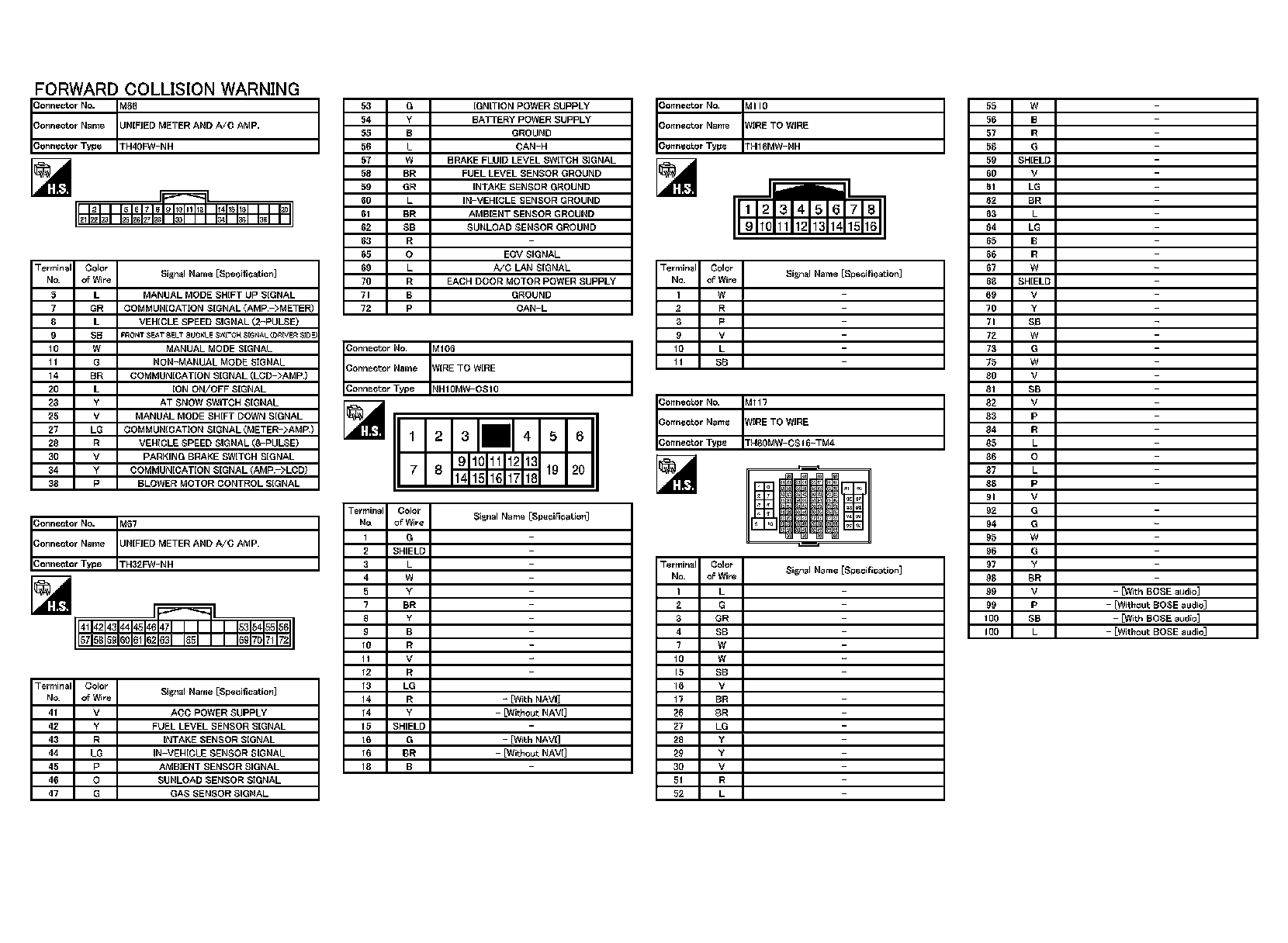

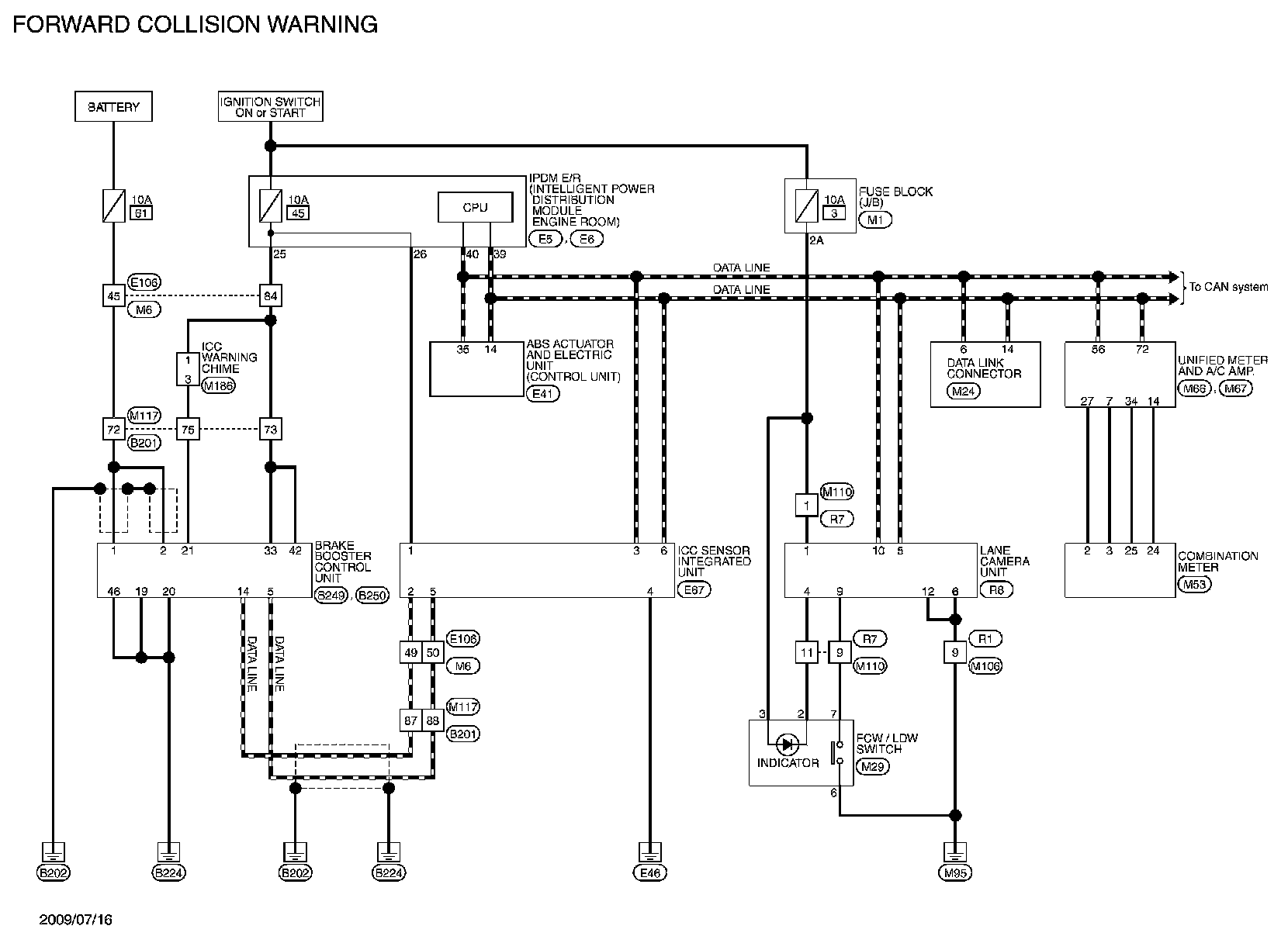

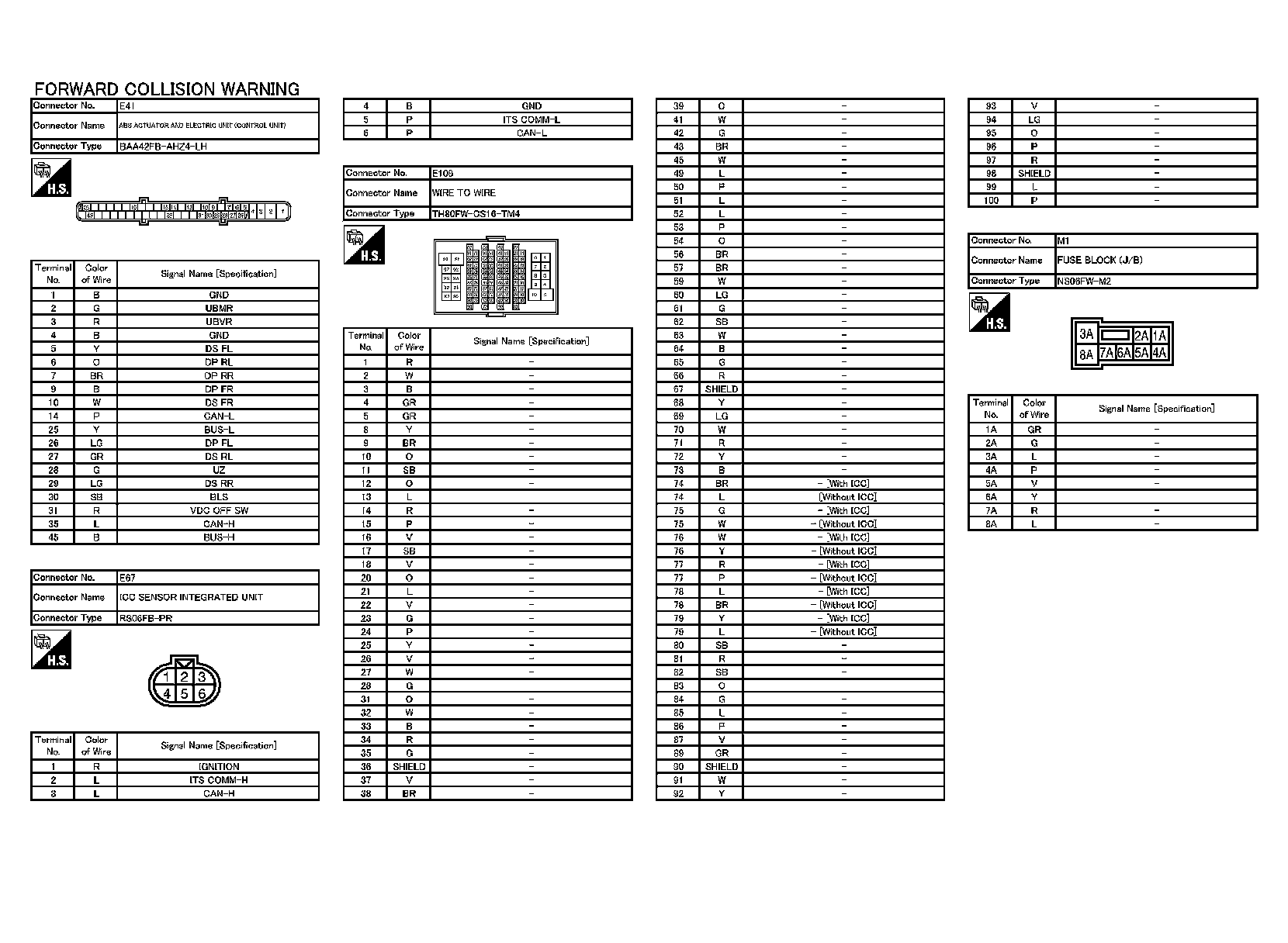

Wiring Diagram - FORWARD COLLISION WARNING -
