Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti Truck
>>
2010
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Headliner
>>
Service and Repair
>>
Exploded View
Exploded View

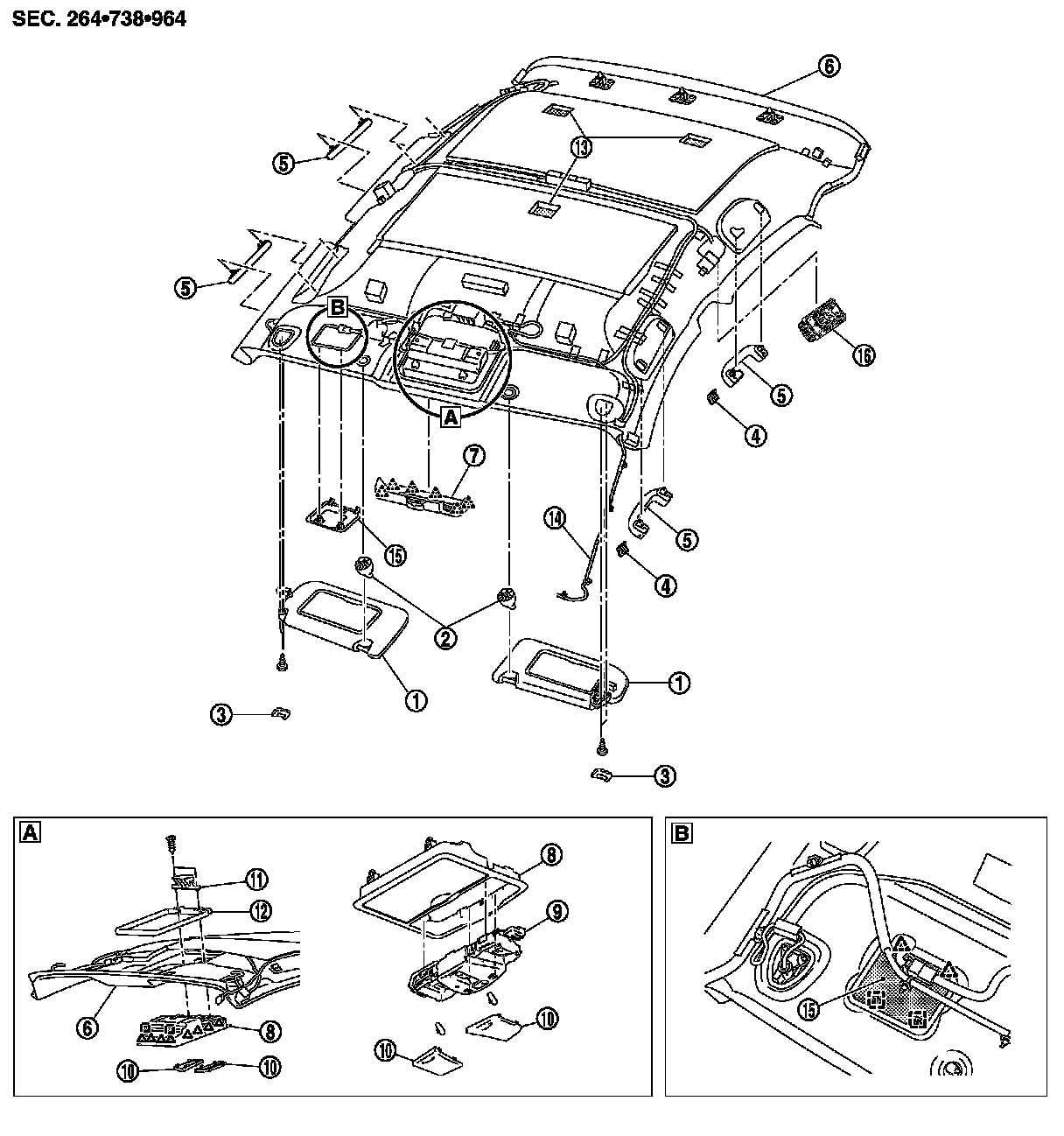

HEADLINING

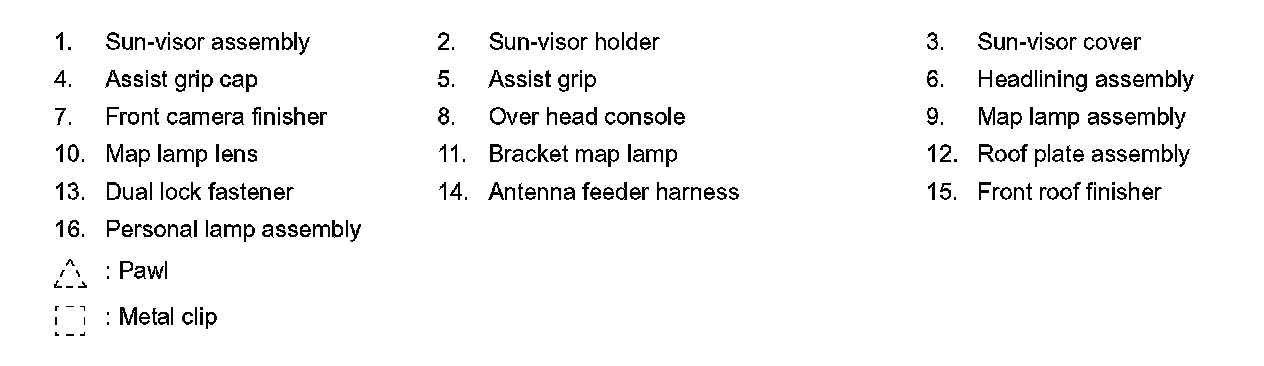

NORMAL ROOF : Exploded View
