Power Window Main Switch

POWER WINDOW MAIN SWITCH


Fail Safe


FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between the fully closed position and the actual position of the glass.

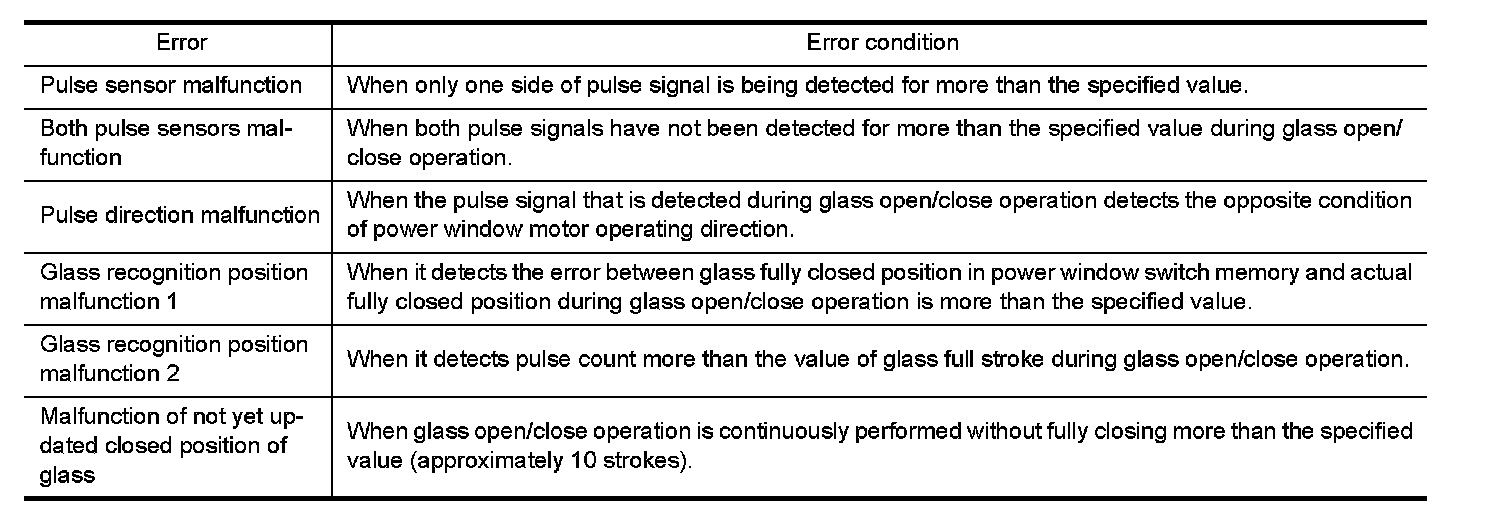

Fail Safe Chart:

It changes to condition before initialization and the following functions do not operate when switched to fail-safe control.
- Auto-up operation
- Anti-pinch function
- Retained power function
Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe control when malfunction is found in power window switch or in motor.
