A/C - Revised Front Expansion Valve Service Procedures

Classification: HA12-007

Reference: ITB12-031

Date: June 15, 2012

REVISED FRONT EXPANSION VALVE PROCEDURES

APPLIED VEHICLES: 2004-2010 QX56 (JA60)

SERVICE INFORMATION

^ Removal and installation procedures for the front expansion valve on 2004-2010 QX56 vehicles have been updated to no longer require heater and cooling unit assembly removal and installation.

^ Use the procedures hyperlinked below for any front expansion valve-related repairs on 2004-2010 QX56 vehicles.

^ The standard Flat Rate Times will be adjusted to reflect the new procedures.

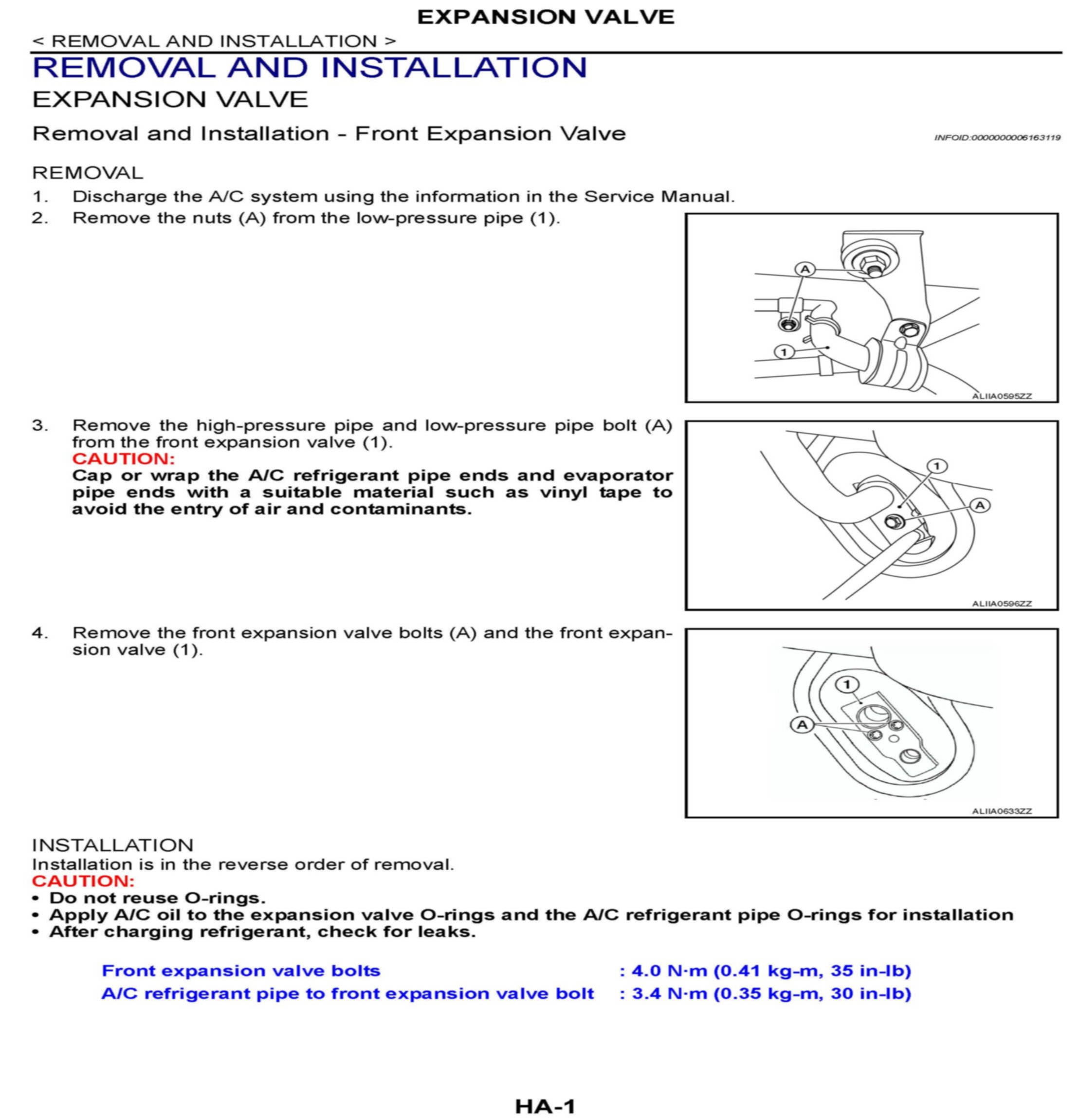

Refer above to view the revised front expansion valve removal and installation procedures.
