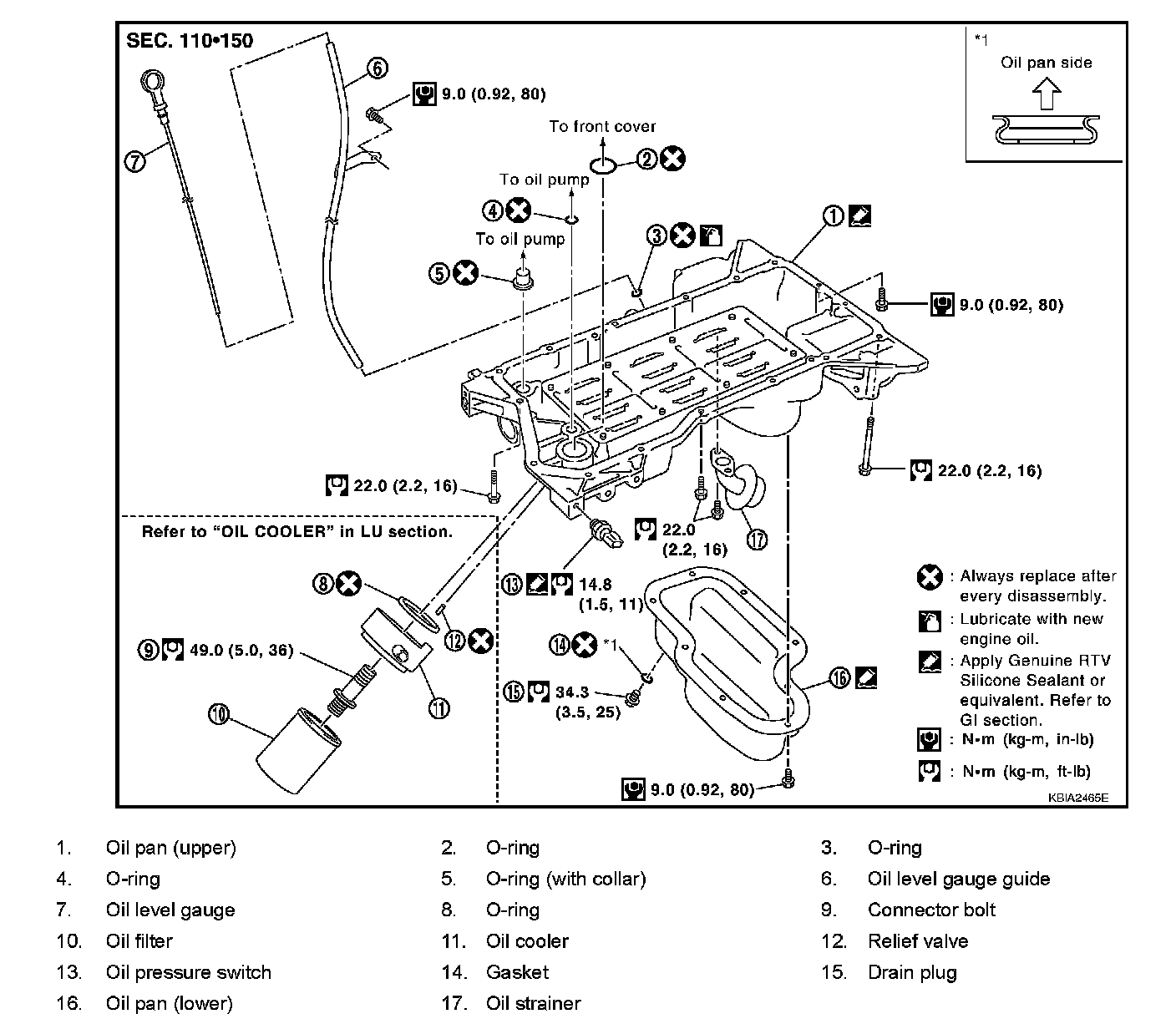

Oil Pan, Engine

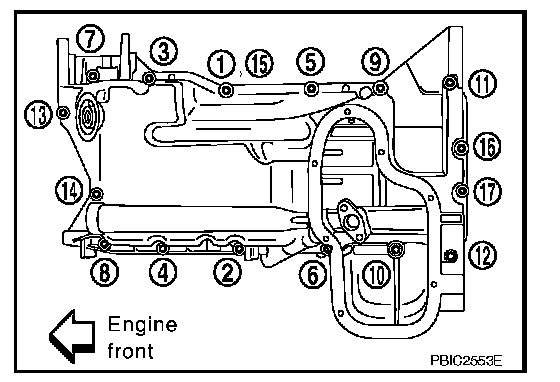

Upper Oil Pan Bolts








M6 � 30 mm (1.18 in) : No. 15, 16
M8 � 25 mm (0.98 in) : No. 1, 3, 5, 7, 11, 13
M8 � 45 mm (1.77 in) : No. 2, 4, 6, 8, 10, 14
M8 � 123 mm (4.84 in) : No. 9, 12

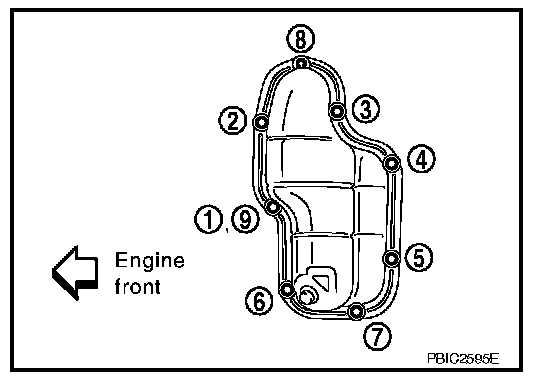

Lower Oil Pan Bolts 9.0 Nm (0.92 kg-m, 80 in-lbs.) in sequence
