Crankshaft, Engine

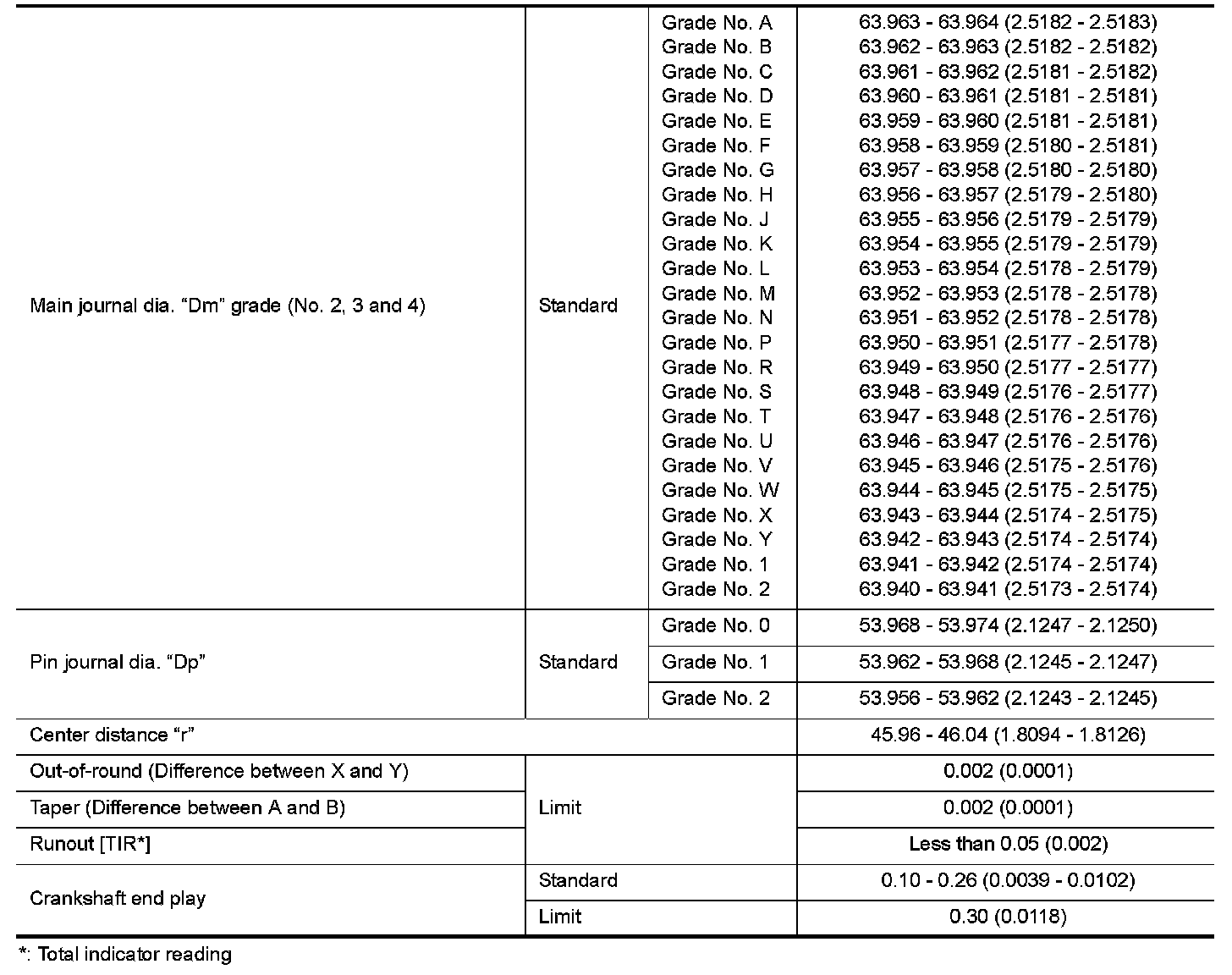

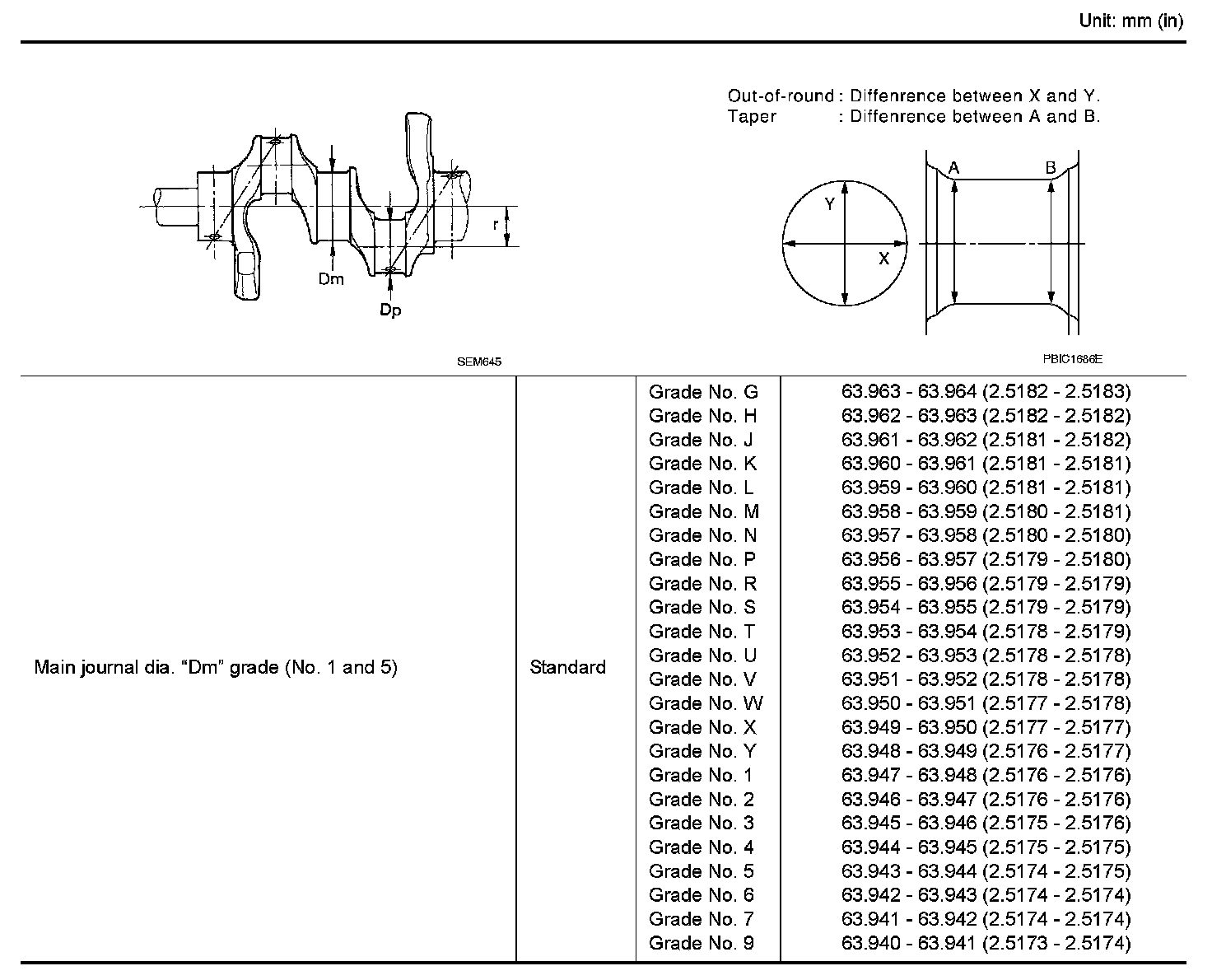

CRANKSHAFT

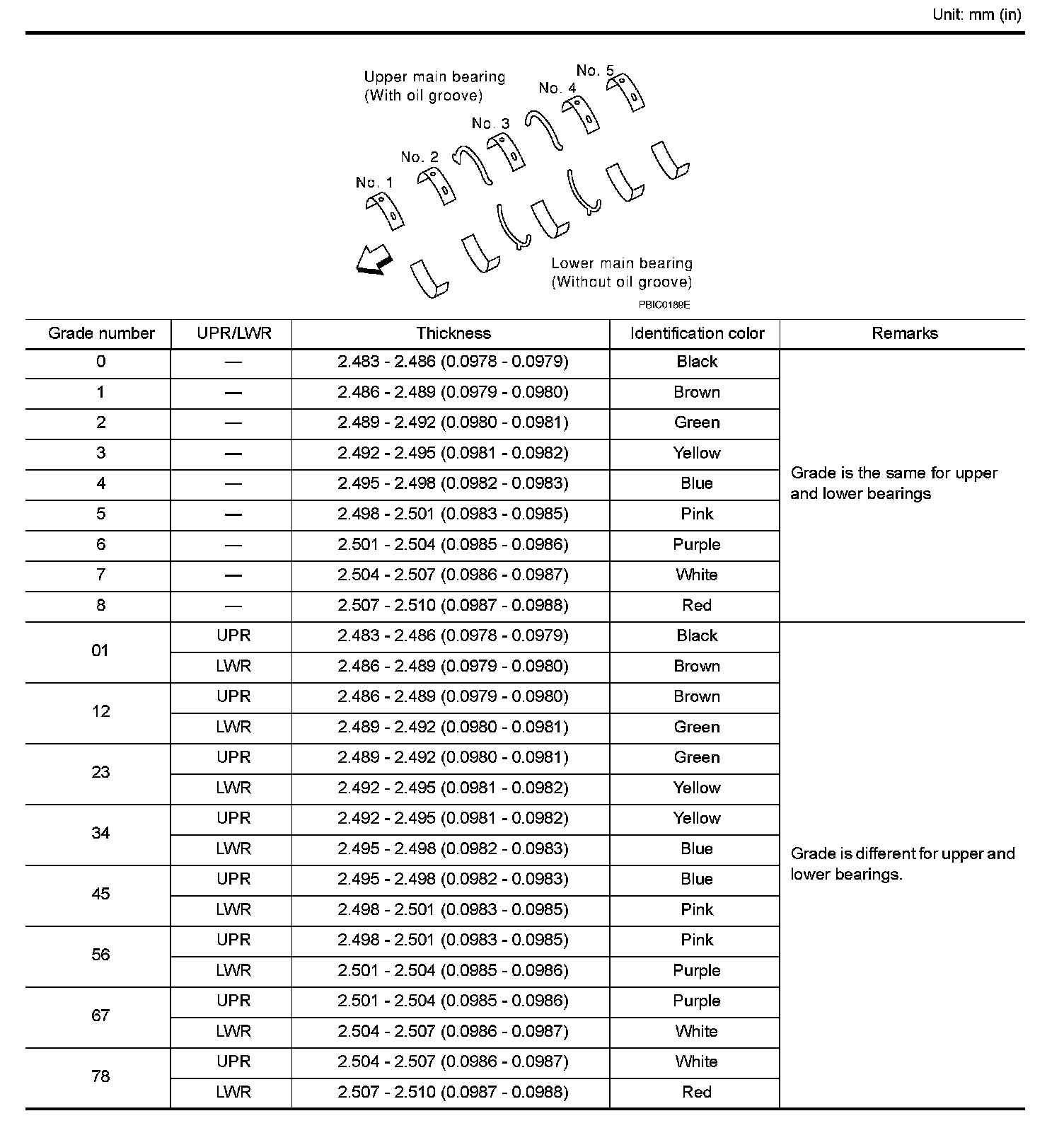

MAIN BEARING

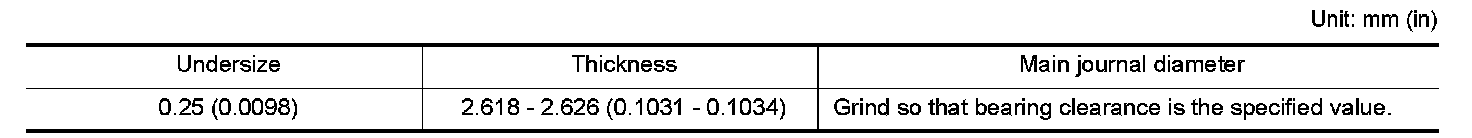

Undersize

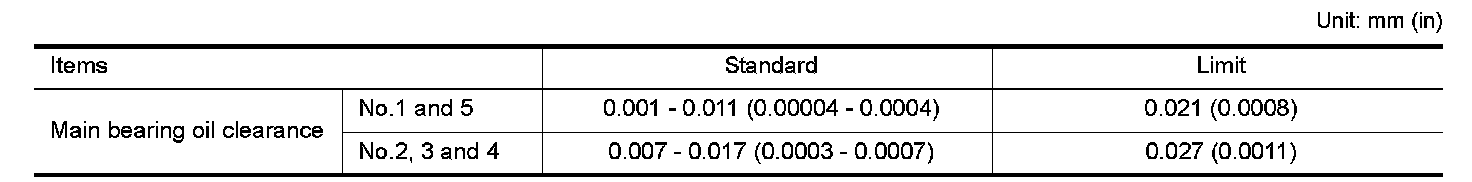

Main Bearing Oil Clearance

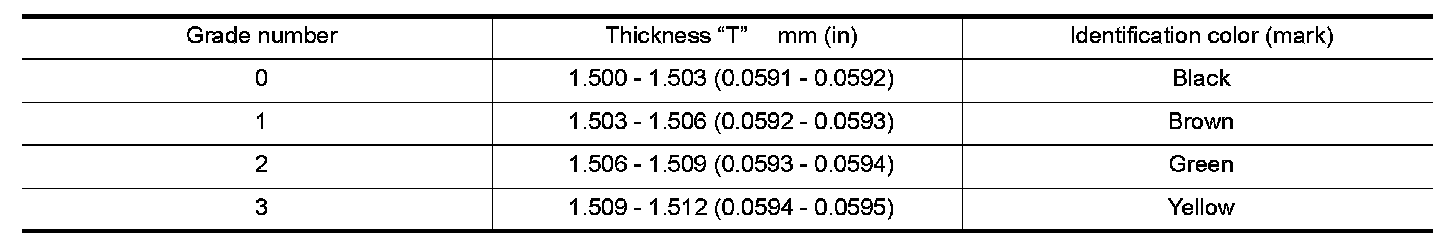

Connecting Rod Bearing

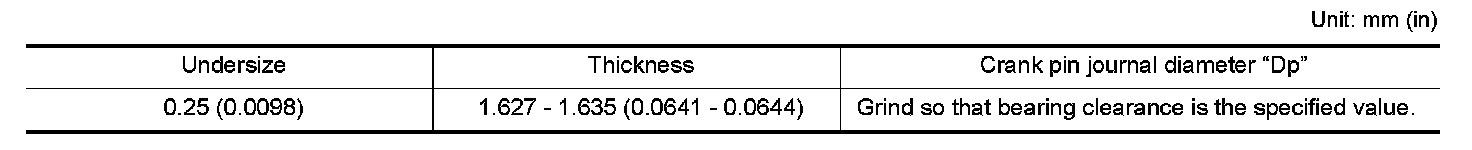

Undersize

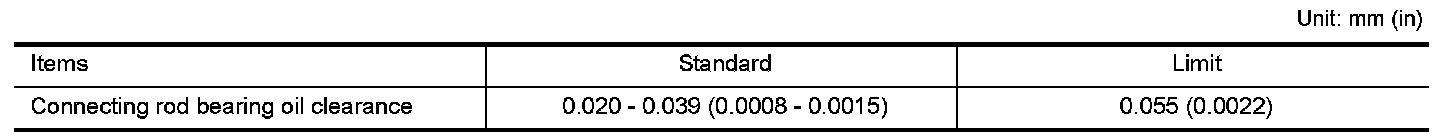

Connecting Rod Bearing Oil Clearance
