Work Flow

DIAGNOSIS AND REPAIR WORK FLOW


Work Flow

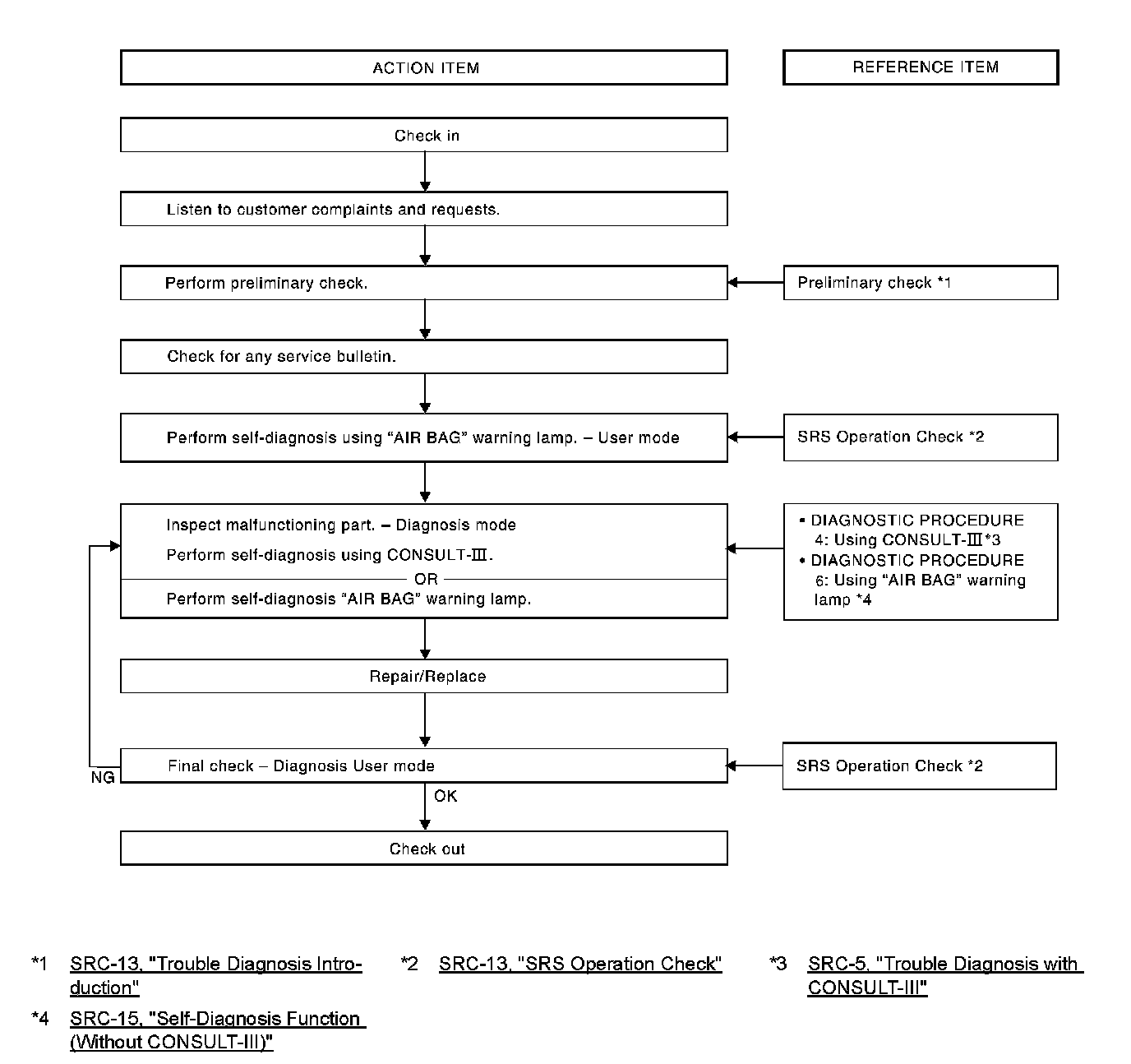

OVERALL SEQUENCE






DETAILED WORK FLOW
1.CUSTOMER INFORMATION
Get detailed information from the customer about the symptom.
>> GO TO 2
2.PRELIMINARY CHECK
Perform preliminary check. Refer to Trouble Diagnosis Introduction.
>> GO TO 3
3.TECHNICAL SERVICE BULLETINS
Check for technical service bulletins.
>> GO TO 4
4.USER MODE
Perform self-diagnosis using the "AIR BAG" warning lamp in User mode. Refer to Component Tests and General Diagnostics.
>> GO TO 5
5.SELF-DIAGNOSIS
Perform SELF-DIAGNOSIS. Refer to Diagnostic Procedure 4 (w/CONSULT-III) or Reading and Clearing Diagnostic Trouble Codes (w/O CONSULT- III).
>> GO TO 6
6.REPLACE PART
Replace the malfunctioning part.
>> GO TO 7
7.FINAL CHECK
Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?
YES - Inspection end.
NO - GO TO 5
