Removal and Replacement

CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove the rear LH interior trim panel. Refer to Service and Repair .
2. Disconnect the battery negative terminal.





3. Disconnect the suspension control unit electrical connector.

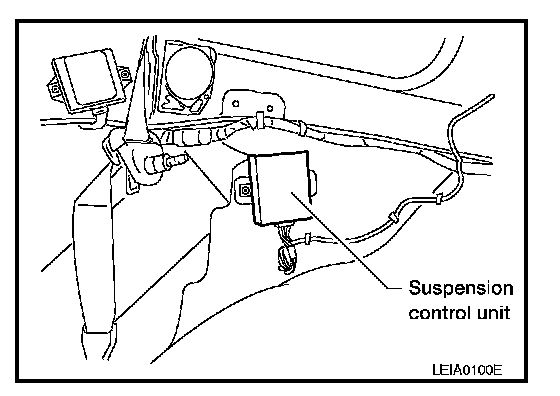

4. Remove the two bolts and remove the suspension control unit.

INSTALLATION
Installation is in the reverse order of removal.

Suspension control unit bolts : 6 Nm (0.6 kg-m, 53 in-lb)
