Parking Assist Control Module: Service and Repair

SONAR CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove the luggage side finisher lower LH. Refer to .
2. Disconnect the sonar control unit electrical connectors.

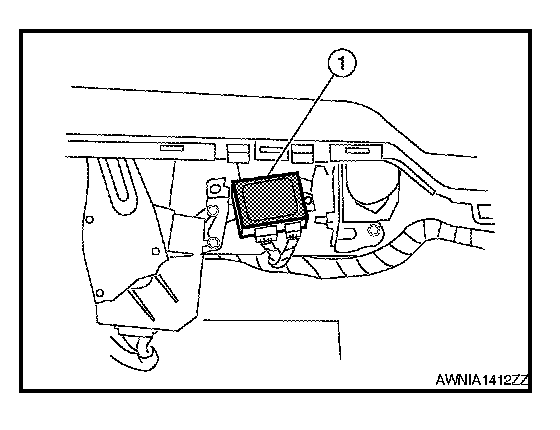

3. Remove the bolt, then remove the sonar control unit (1).

INSTALLATION
Installation is in the reverse order of removal.
