Engine Cannot Be Started In "P" or "N" Position

SYSTEM SYMPTOM


Engine Cannot Be Started in "P" or "N" Position


SYMPTOM:
- Engine cannot be started with selector lever in "P" or "N" position.
- Engine can be started with selector lever in "D"or "R" position.

DIAGNOSTIC PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to Diagnosis System (TCM).
Do the self-diagnosis results indicate PNP switch?
YES - Check the malfunctioning system. Refer to P0705.
NO - GO TO 2.

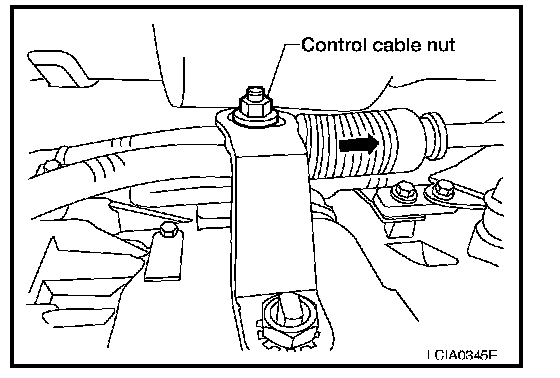

2.CHECK CONTROL CABLE





Check the control cable.
- Refer to Checking of A/T Position.
OK or NG
OK - GO TO 3.
NG - Adjust control cable. Refer to Adjustment of A/T Position Checking of A/T Position, "Adjustment of A/ T Position".
3.CHECK STARTING SYSTEM
Check the starting system. Refer to Initial Inspection and Diagnostic Overview.
OK or NG
OK >> INSPECTION END
NG - Repair or replace damaged parts.
