A/T Shift Lock System

A/T SHIFT LOCK SYSTEM


Terminals And Reference Values


SHIFT LOCK HARNESS CONNECTOR TERMINALS LAYOUT

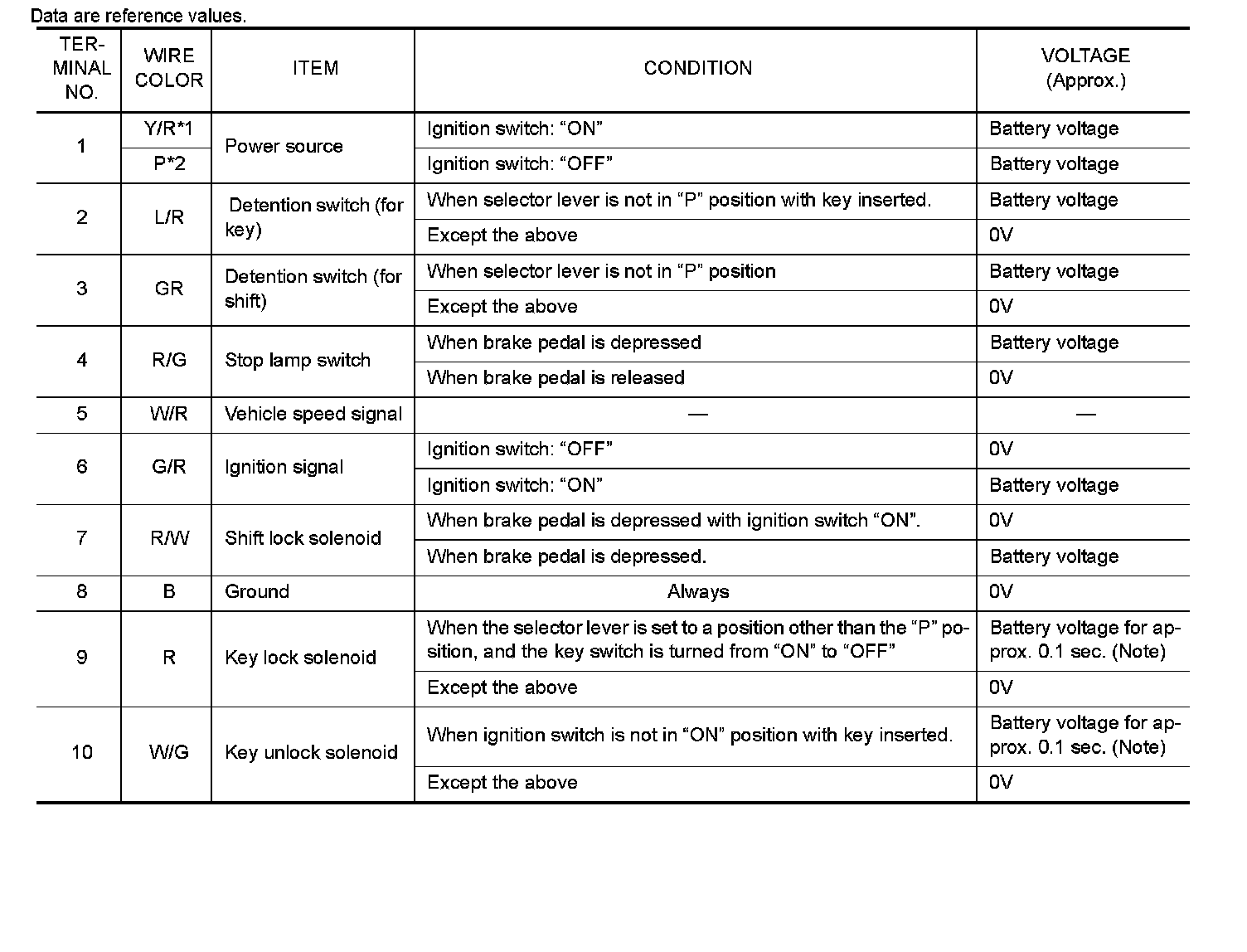

SHIFT LOCK CONTROL UNIT INSPECTION TABLE





NOTE:
Confirm that the pointer swings only momentarily because the output time is so short. If the inspection is done with an oscilloscope, it should be observed that the power source voltage lasts for 3.5 to 10 ms.
*1: With Type A main harness. For definition of Type A main harness, refer to PG-39, "Harness Layout". Connector Locations
*2: With Type B main harness. For definition of Type B main harness, refer to PG-39, "Harness Layout". Connector Locations
