Symptom Related Diagnostic Procedures





ENGINE CONTROL SYSTEM SYMPTOMS


Symptom Matrix Chart


SYSTEM -- BASIC ENGINE CONTROL SYSTEM

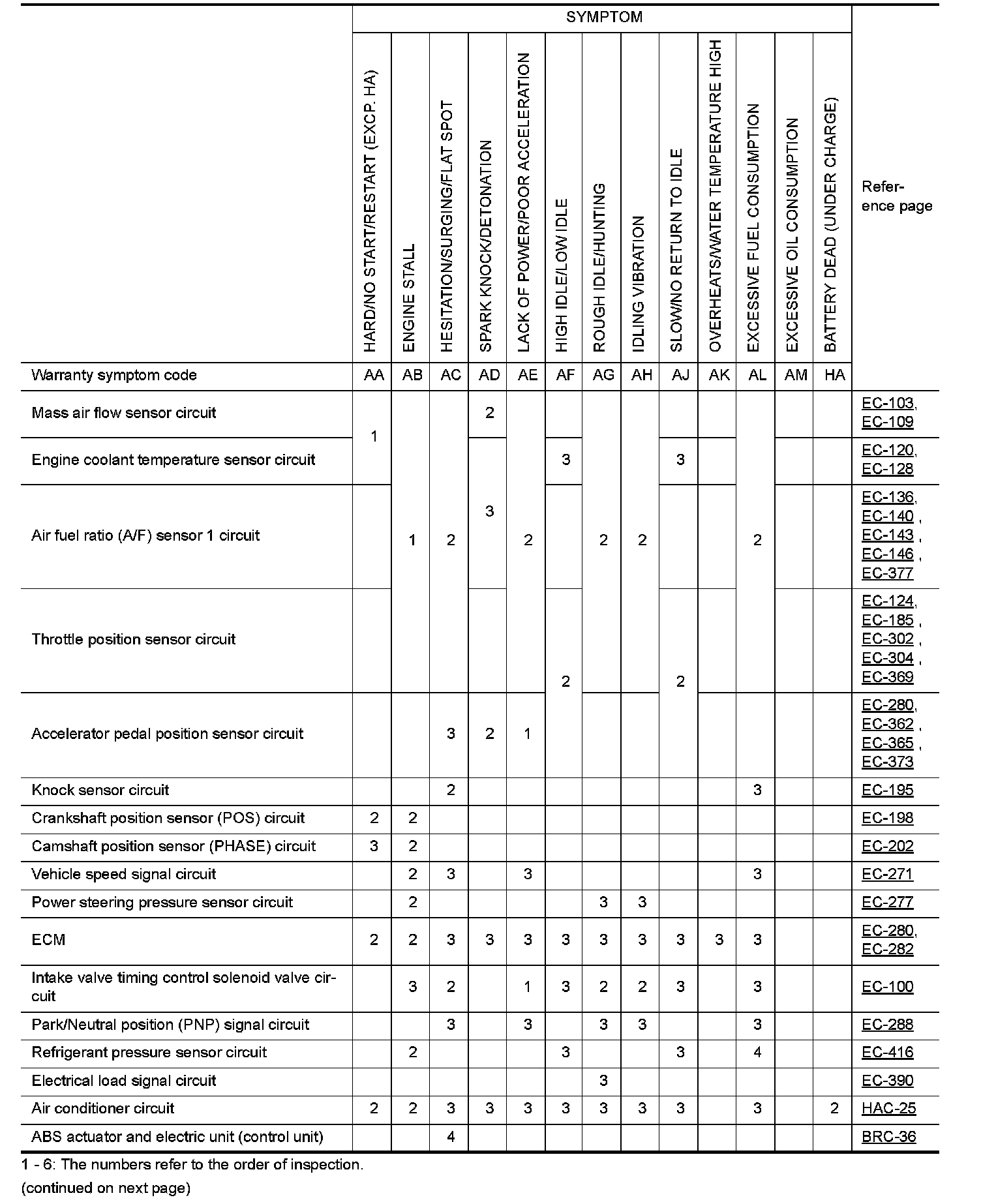

Symptom Matrix Chart - System-Basic Engine Control System (Part 1):

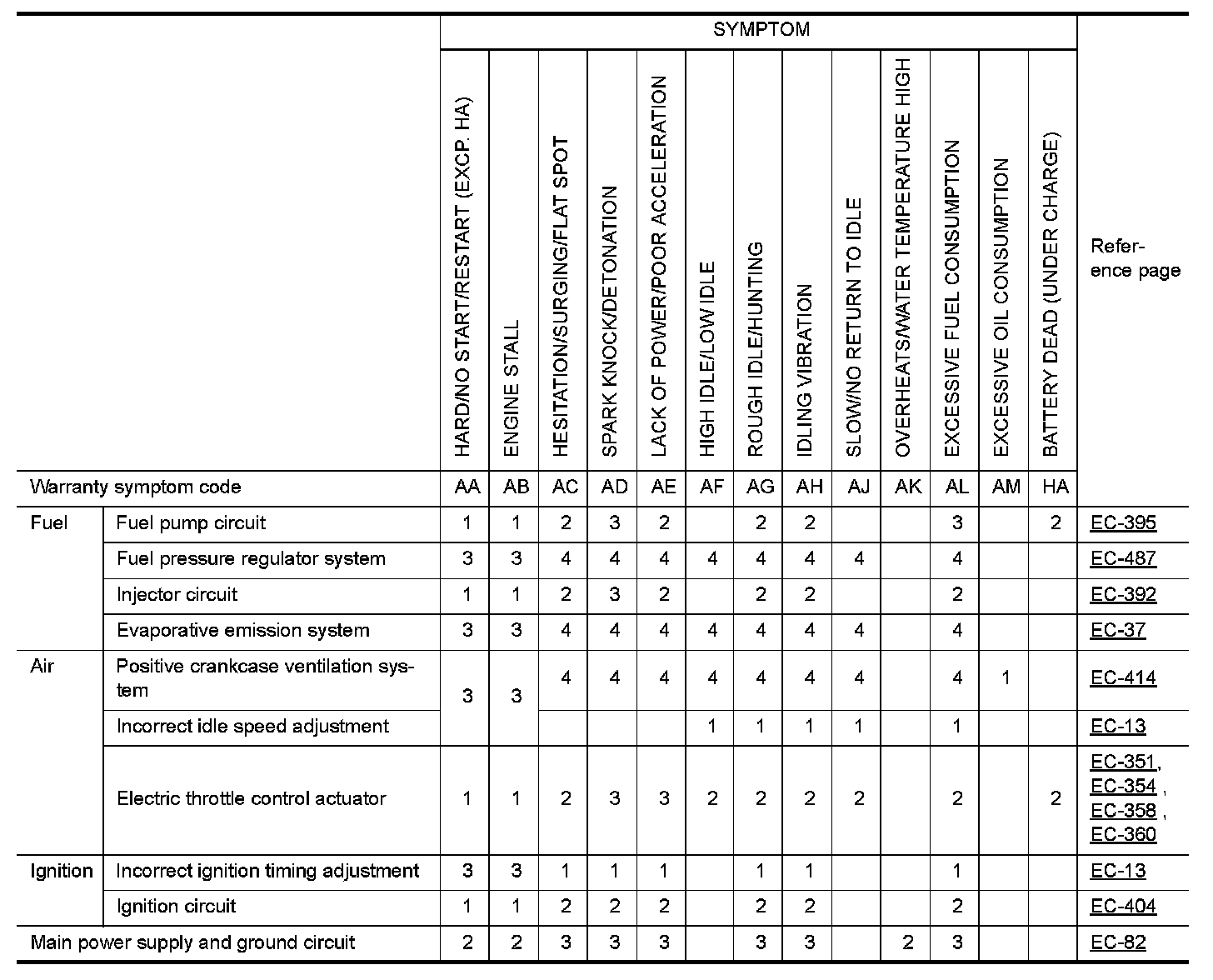

Symptom Matrix Chart - System-Basic Engine Control System (Part 2):






SYSTEM -- ENGINE MECHANICAL and OTHER

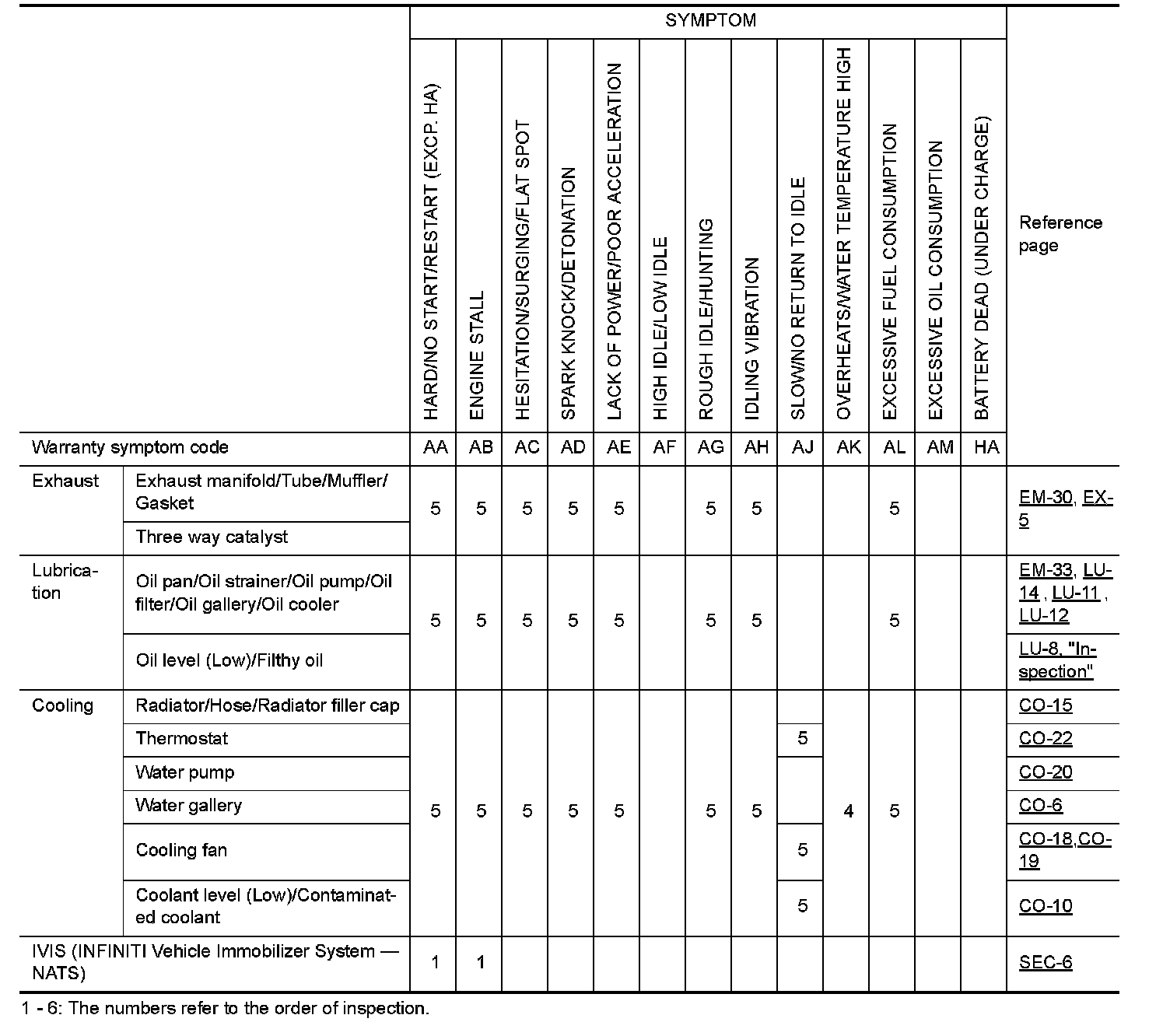

Symptom Matrix Chart - System-Engine Mechanical And Other (Part 1):






Symptom Matrix Chart - System-Engine Mechanical And Other (Part 2):
