ASCD Indicator

ASCD INDICATOR


Diagnosis Procedure

1.CHECK OVERALL FUNCTION

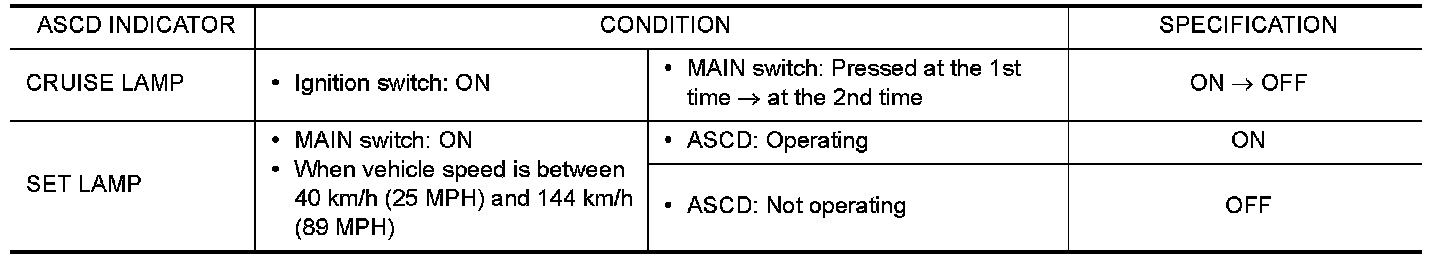

Check ASCD indicator under the following conditions.





OK or NG
OK >> INSPECTION END
NG - GO TO 2.
2.CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK - GO TO 3.
NG - Perform trouble diagnosis for DTC U1000, U1001. Refer to Electronic Engine Control Electronic Engine Control Electronic Engine Control Electronic Engine Control .
3.CHECK COMBINATION METER FUNCTION
Refer to System Diagram System Description.
OK or NG
OK - GO TO 4.
NG - Go to System Diagram System Description.
4.CHECK INTERMITTENT INCIDENT
Refer to How to Check Terminal and Intermittent Incident.
>> INSPECTION END
